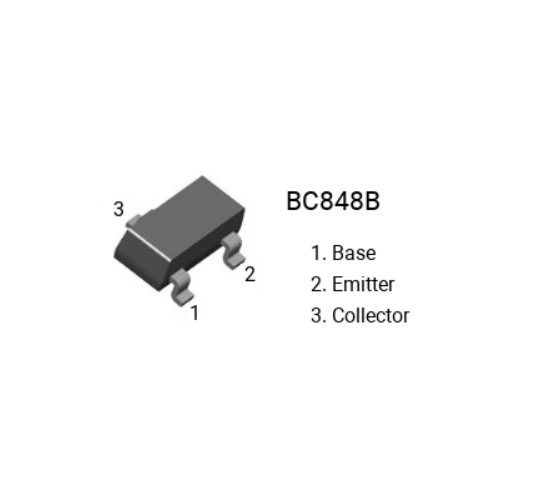

BC848B SOT-23 30V 100mA NPN Transistor (High Gain SMD Switching Transistor for Electronic Circuits)

The BC848B SOT-23 30V 100mA NPN Transistor is designed for switching and signal amplification applications in compact electronic circuits. It provides reliable performance, fast switching response, and stable operation for consumer and industrial electronic systems.

Key Features -

• NPN transistor for switching and amplification

• Compact SOT-23 surface mount package

• Maximum collector emitter voltage of 30V

• Collector current handling up to 100mA

• High gain transistor with minimum hFE 110

• Suitable for high frequency applications

Specifications -

• Product type - NPN Bipolar Junction Transistor

• Model - BC848B

• Package type - SOT-23

• Mounting type - Surface Mount Device

• Voltage rating - Collector Emitter Voltage 30V

• Current rating - Maximum Collector Current 100mA

• Frequency - Transition Frequency 150MHz

• Material - Silicon Semiconductor

• Additional features - High gain hFE minimum 110, compact SMD design, fast switching capability

Applications -

• Switching circuits

• Signal amplification systems

• Consumer electronic devices

• Embedded and compact PCB designs

• Communication and control circuits
