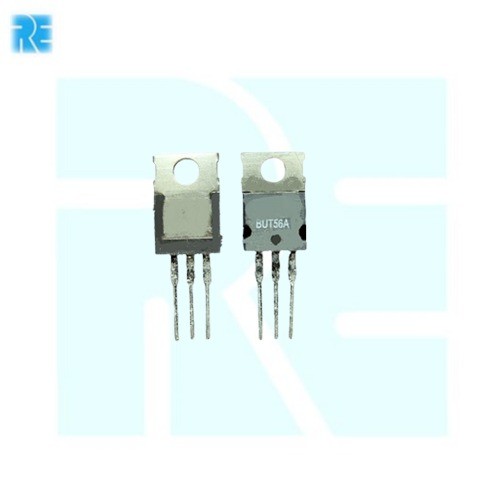

BUT56A Silicon NPN Power Transistor (1000V, 8A, 100W, TO 220, 1 Qty)

The BUT56A Silicon NPN Power Transistor is a high voltage bipolar junction transistor designed for power switching, high voltage conversion and industrial electronic applications. Featuring a maximum collector base voltage of 1000V, collector current rating of 8A and collector power dissipation of 100W, this transistor is suitable for switched mode power supplies, electronic switching circuits and industrial power control equipment.

The BUT56A features silicon power transistor construction designed to handle high voltage switching operations and demanding electrical loads. Its minimum DC current gain of 15 under specified test conditions supports current amplification with suitable base drive circuitry. Unlike Darlington transistors, the BUT56A uses a conventional NPN bipolar configuration. The TO 220 package supports through hole PCB mounting and heat dissipation using an appropriate heat sink. This transistor is suitable for power conversion systems, industrial switching equipment and electronic power supply repair applications.

Key Features

• BUT56A silicon NPN power transistor

• Maximum collector base voltage of 1000V

• Maximum collector current rating of 8A

• Maximum collector power dissipation of 100W

• Minimum DC current gain of 15 under specified conditions

• Designed for high voltage power switching applications

• Conventional NPN bipolar transistor configuration

• TO 220 package suitable for heat sink mounting

• Suitable for industrial power control and conversion circuits
