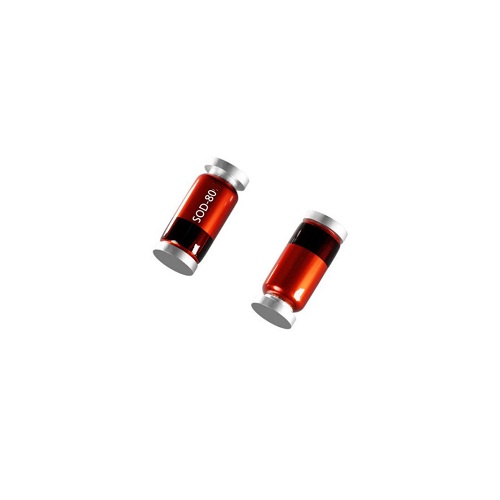

BZV55-C3V3 3.3V 500mW Zener Diode SOD-80 (SOD80C)

The BZV55-C3V3 is a 3.3V Zener diode designed for voltage regulation, voltage reference generation, and overvoltage protection applications. Packaged in a compact SOD-80 (SOD80C) surface-mount package, it provides stable voltage regulation and reliable performance in consumer, industrial, and embedded electronic circuits.

Key Features -

• Nominal Zener voltage of 3.3V

• ±5% voltage tolerance

• Maximum power dissipation of 500mW

• Compact SOD-80 surface-mount package

• Low reverse leakage current

• Suitable for voltage regulation and protection circuits

Specifications -

• Product type - Zener Diode

• Part number - BZV55-C3V3

• Zener voltage (Vz) - 3.3V

• Voltage tolerance - ±5%

• Power dissipation - 500mW Maximum

• Maximum power dissipation (continuous) - 400mW

• Package type - SOD-80 / SOD80C

• Mounting type - Surface Mount (SMD)

• Number of pins - 2

• Element configuration - Single

• Dynamic impedance - 95Ω

• Maximum reverse leakage current - 5µA

• Operating temperature range - -65°C to +200°C

• ESD protection - No

Applications -

• Voltage regulation circuits

• Precision voltage reference sources

• Overvoltage protection systems

• Power supply stabilization

• Embedded electronics and microcontroller circuits

• Consumer and industrial electronic equipment
