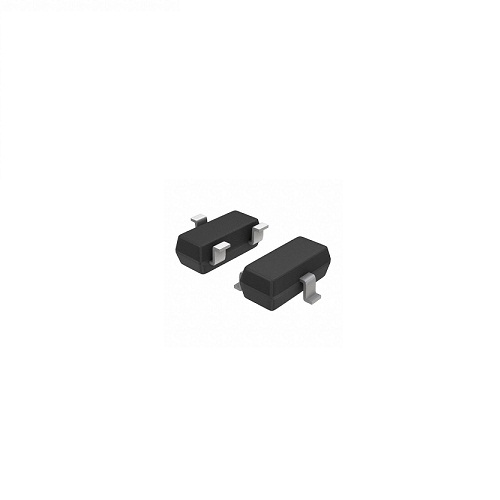

BZX84C3V6-7-F 3.6V Zener Diode 350mW SOT-23-3

The BZX84C3V6-7-F is a compact 3.6V Zener diode designed for voltage regulation, voltage reference generation, and overvoltage protection in low-power electronic circuits. Housed in a space-saving SOT-23-3 surface-mount package, it provides stable Zener voltage characteristics and reliable performance for consumer, industrial, and embedded electronics applications.

Key Features -

• Nominal Zener voltage of 3.6V

• Compact SOT-23-3 surface-mount package

• Power dissipation up to 350mW

• Low leakage current characteristics

• Suitable for voltage regulation and protection circuits

• Reliable operation over a wide temperature range

Specifications -

• Product type - Zener Diode

• Part number - BZX84C3V6-7-F

• Zener voltage (Vz) - 3.6V

• Voltage tolerance - ±5.56%

• Reference voltage - 3.6V

• Power rating - 350mW

• Maximum power dissipation - 350mW

• Package type - SOT-23-3

• Mounting type - Surface Mount (SMD)

• Number of terminals - 3

• Number of elements - 1

• Polarity - Unidirectional

• Dynamic impedance - 90Ω

• Zener test current - 5mA

• Operating temperature range - -65°C to +150°C

• DC voltage rating - 3.6V

Applications -

• Voltage regulation circuits

• Precision voltage reference sources

• Overvoltage protection systems

• Power supply stabilization

• Microcontroller and embedded systems

• Consumer electronics

• Industrial control equipment
