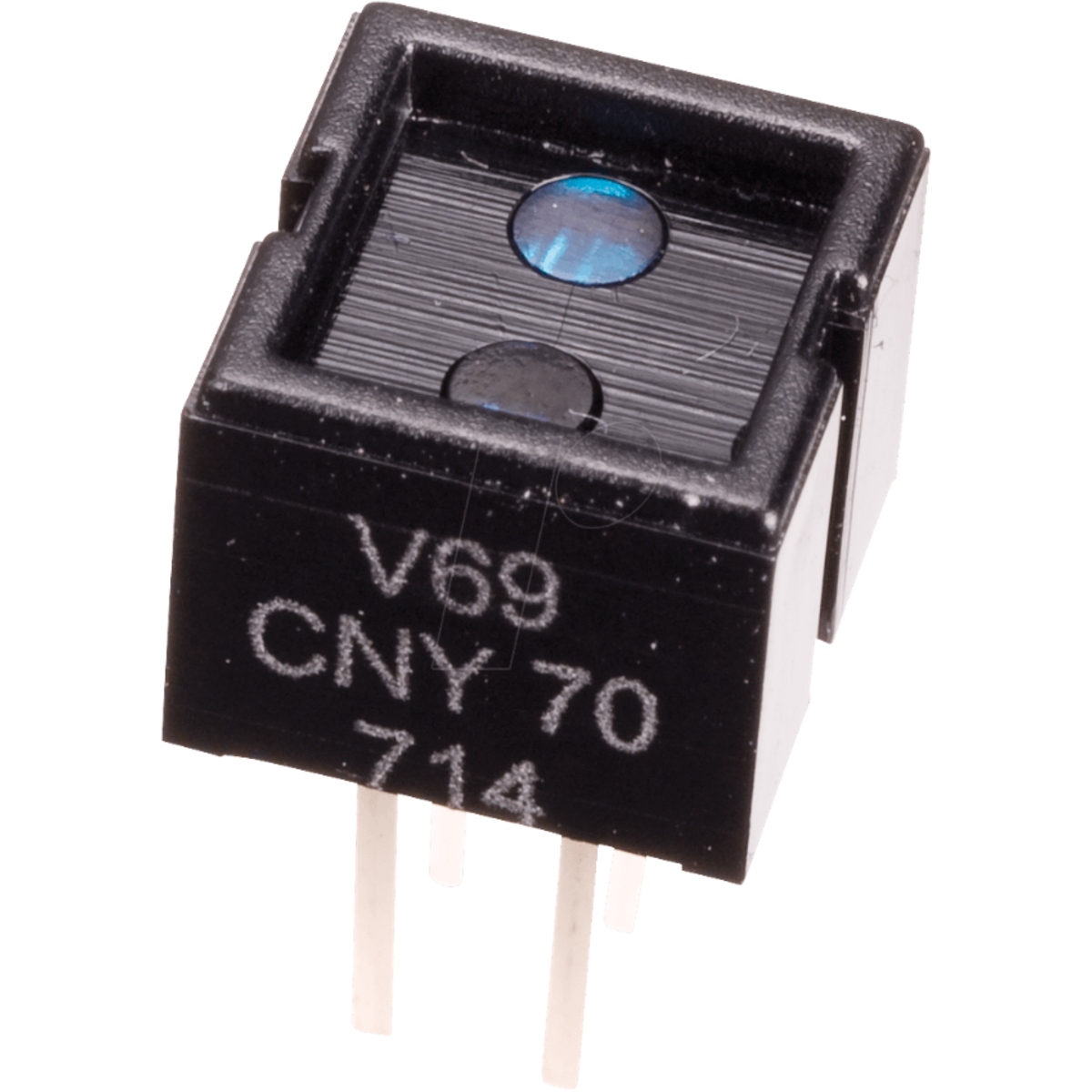

CNY70 Reflective Optical Sensor with Transistor Output (CNY70 IR Sensor)
The CNY70 Reflective Optical Sensor is an infrared based sensor designed for non contact detection using reflected IR light. It integrates an infrared emitting diode and a phototransistor in a single compact package, both facing the same direction to detect reflected light from nearby objects.
This sensor is optimized for short range detection and is widely used in applications like line following, position sensing, and encoder systems due to its high sensitivity and compact design.
Key Features
- Reflective Optical Sensor IR emitter and phototransistor integrated
- Infrared Wavelength approx 950nm optimized for sensing
- Very Short Range Detection high precision close sensing
- Daylight Blocking Filter improved ambient light immunity
- Compact Package approx 7mm x 7mm x 6mm
- High Sensitivity suitable for surface detection
Specifications
- Sensor Type: Reflective optical sensor
- Sensing Method: Infrared reflection
- Peak Operating Distance: less than 0.5mm
- Detection Range: approx 0mm to 5mm
- Output Type: Phototransistor output
- Emitter Wavelength: approx 950nm
- Collector Current: approx 1mA typical
- Package Type: Leaded compact reflective sensor
Applications
- Line follower robots black white detection
- Optical encoders and position sensing
- Object detection at very close range
- Paper detection and counting systems
- Industrial automation and control
Pinout Configuration
- Anode IR emitter
- Cathode IR emitter
- Collector phototransistor
- Emitter phototransistor
Working Principle
- IR LED emits infrared light
- Light reflects from nearby surface
- Phototransistor detects reflected signal
- Output varies with reflectivity and distance
