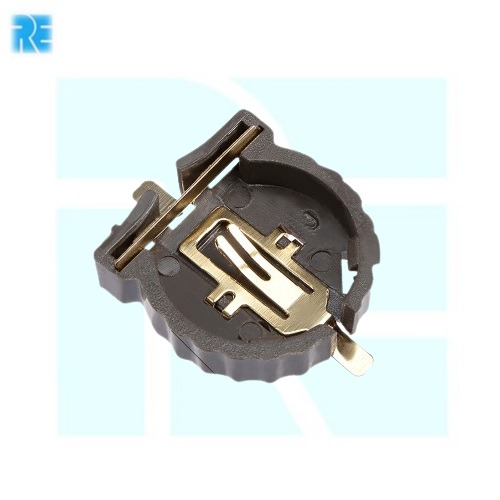

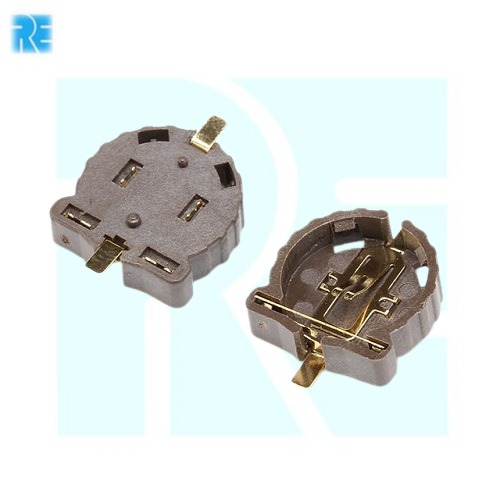

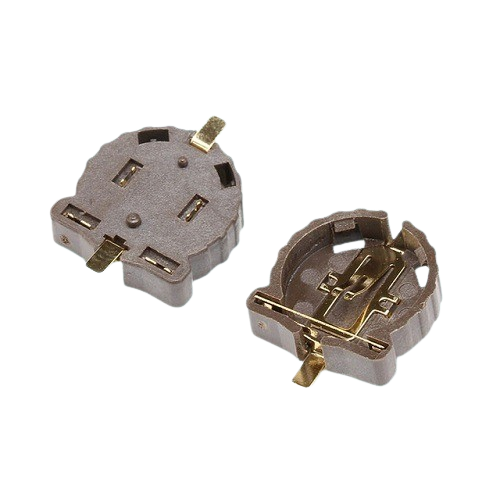

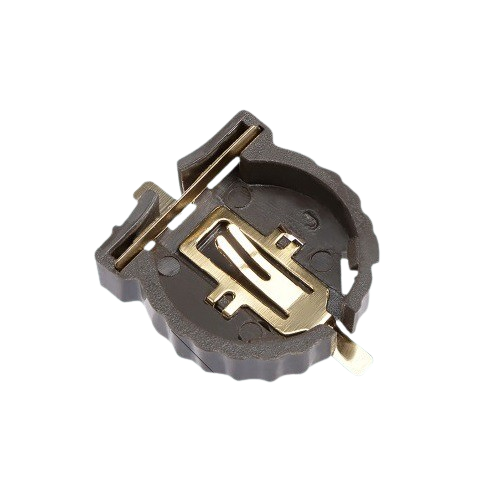

CR1220 3V SMD Horizontal Battery Holder (Brown Gold-Plated PCB Coin Cell Holder)

The CR1220 3V SMD Horizontal Battery Holder is a compact surface-mount battery holder designed to securely hold a CR1220 3V lithium coin cell battery. Featuring gold-plated phosphor bronze contacts and a durable brown insulating housing, this battery holder provides excellent electrical conductivity, low contact resistance, and reliable long-term performance. Its horizontal SMD (Surface Mount Device) design enables efficient PCB assembly while allowing quick and easy battery replacement without soldering the battery directly to the board.

This battery holder is widely used in RTC modules, memory backup circuits, wearable electronics, IoT devices, wireless sensors, embedded systems, medical equipment, and compact portable electronic devices.

Key Features -

• Designed for CR1220 3V lithium coin cell batteries

• Horizontal SMD PCB mounting design

• Gold-plated phosphor bronze contacts

• Low contact resistance for reliable electrical connection

• Durable brown insulating housing

• Suitable for 12mm diameter coin cell batteries

• Easy battery installation and replacement

• Compact, low-profile construction

• Reliable long service life

Specifications -

• Product Type: Coin Cell Battery Holder

• Compatible Battery: CR1220

• Battery Voltage: 3V

• Battery Diameter: 12mm

• Mounting Type: Surface Mount (SMD)

• Mounting Orientation: Horizontal

• Contact Material: Gold-Plated Phosphor Bronze

• Housing Color: Brown

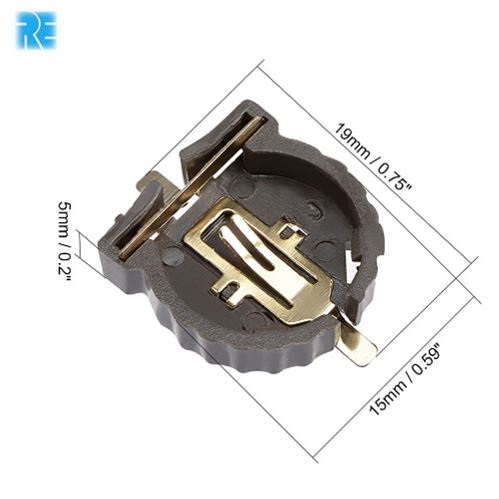

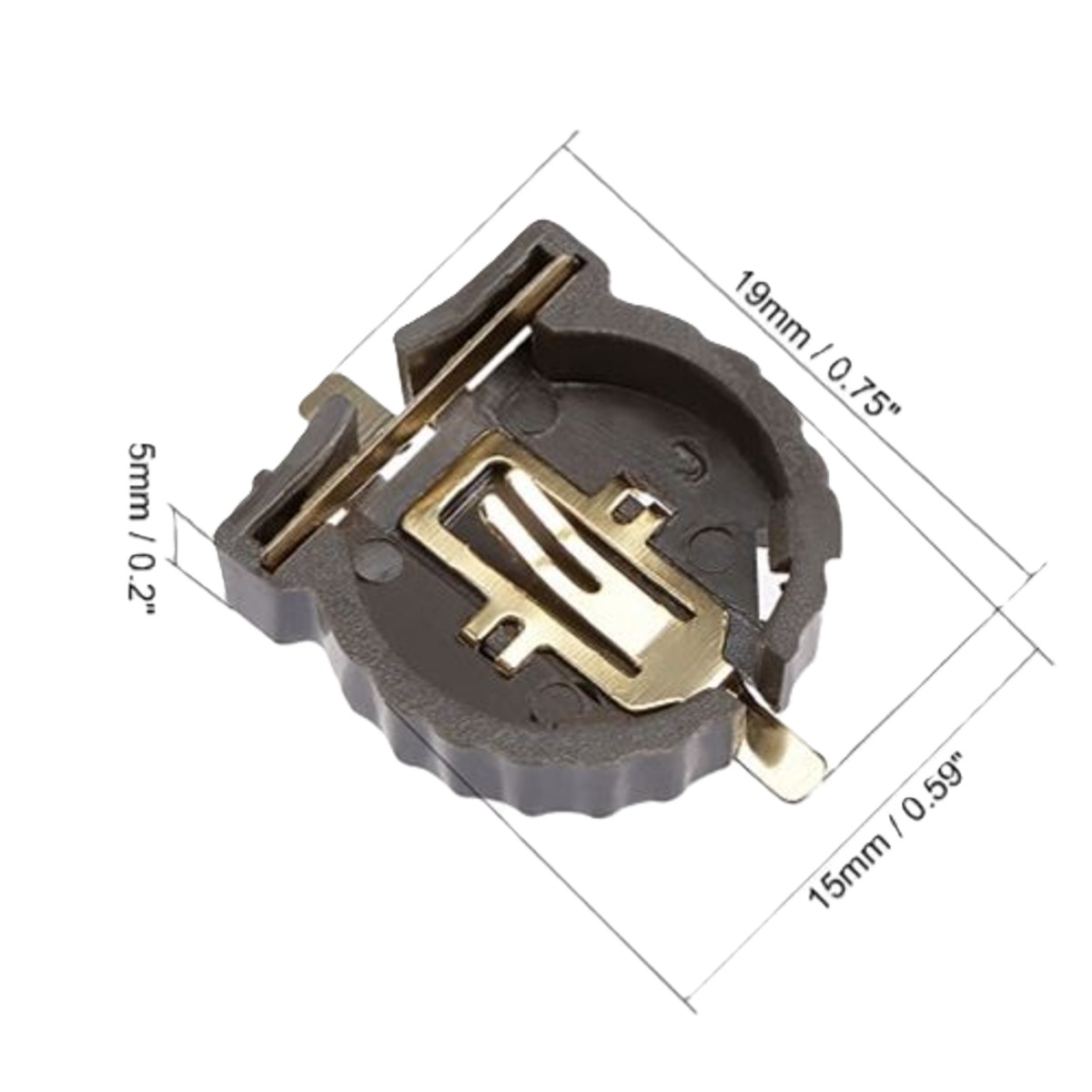

• Dimensions: Approximately 15.3mm × 14.9mm

• Operating Temperature: -25C to +85C

Applications -

• Real-Time Clock (RTC) modules

• CMOS memory backup circuits

• Wearable electronic devices

• IoT devices and wireless sensors

• Embedded systems and microcontroller boards

• Medical electronic equipment

• Consumer electronic products

• Portable electronic devices

• Industrial control systems
