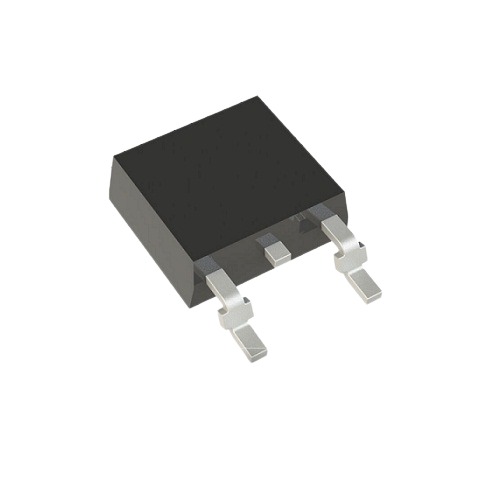

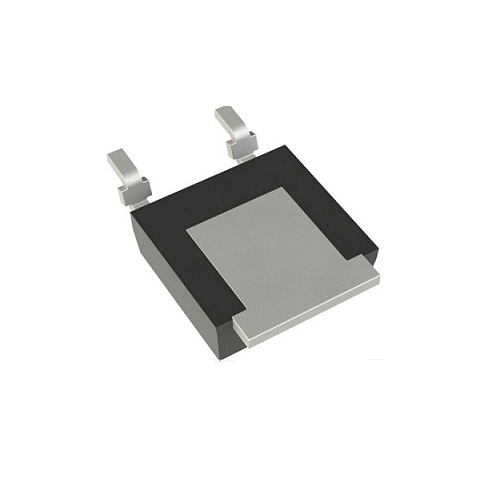

DMPH6050SK3-13 P-Channel MOSFET 60V 7.2A/23.6A TO-252-3 (Surface Mount Power MOSFET)

The DMPH6050SK3-13 is a high-performance P-Channel Power MOSFET designed for efficient power switching and load management applications. Featuring a 60V drain-to-source voltage rating, continuous drain current up to 23.6A (case mounted), and low ON-state resistance of 50mΩ, it delivers high efficiency and reliable operation in switching power supplies, battery protection circuits, load switches, and power management systems. Its TO-252-3 Surface Mount Device package offers excellent thermal performance for compact Printed Circuit Board designs.

Key Features -

• P-Channel enhancement mode Power MOSFET

• 60V drain-to-source voltage rating

• Continuous drain current up to 23.6A

• Low ON-state resistance of 50mΩ

• TO-252-3 Surface Mount Device package

• Optimized for low conduction losses

• Low gate charge for efficient switching

• High-temperature operation up to 175°C junction temperature

• Suitable for high-speed switching applications

• Excellent thermal characteristics

Specifications -

• Product Type - P-Channel Power MOSFET

• Model - DMPH6050SK3-13

• Channel Type - P-Channel

• Technology - Metal Oxide Semiconductor Field Effect Transistor (MOSFET)

• Mounting Type - Surface Mount Device

• Package Type - TO-252-3 (DPAK)

• Drain-to-Source Voltage (VDSS) - 60V

• Continuous Drain Current (ID) @ 25°C (Ta) - 7.2A

• Continuous Drain Current (ID) @ 25°C (Tc) - 23.6A

• Drive Voltage - 4.5V, 10V

• ON-State Resistance RDS(ON) - 50mΩ Maximum @ 7A, VGS = 10V

• Gate Threshold Voltage VGS(th) - 3V Maximum @ 250µA

• Maximum Gate-to-Source Voltage (VGS) - ±20V

• Gate Charge (Qg) - 25nC Maximum @ 10V

• Input Capacitance (Ciss) - 1377pF Maximum @ VDS = 30V

• Maximum Power Dissipation - 1.9W (Ta)

• Operating Junction Temperature - -55°C to +175°C

Applications -

• High-side load switching

• Battery protection circuits

• Battery-powered devices

• DC-DC converters

• Switching power supplies

• Power distribution circuits

• Motor control systems

• Portable electronic equipment

• Solar power systems

• Industrial automation equipment
