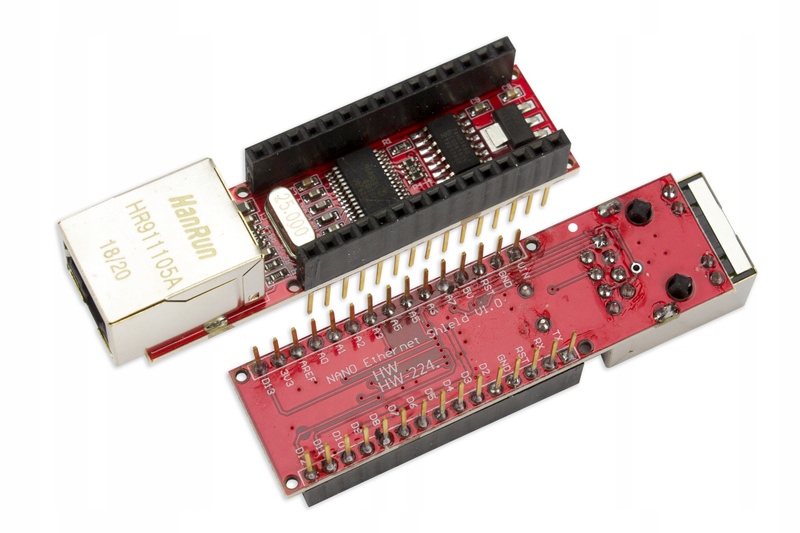

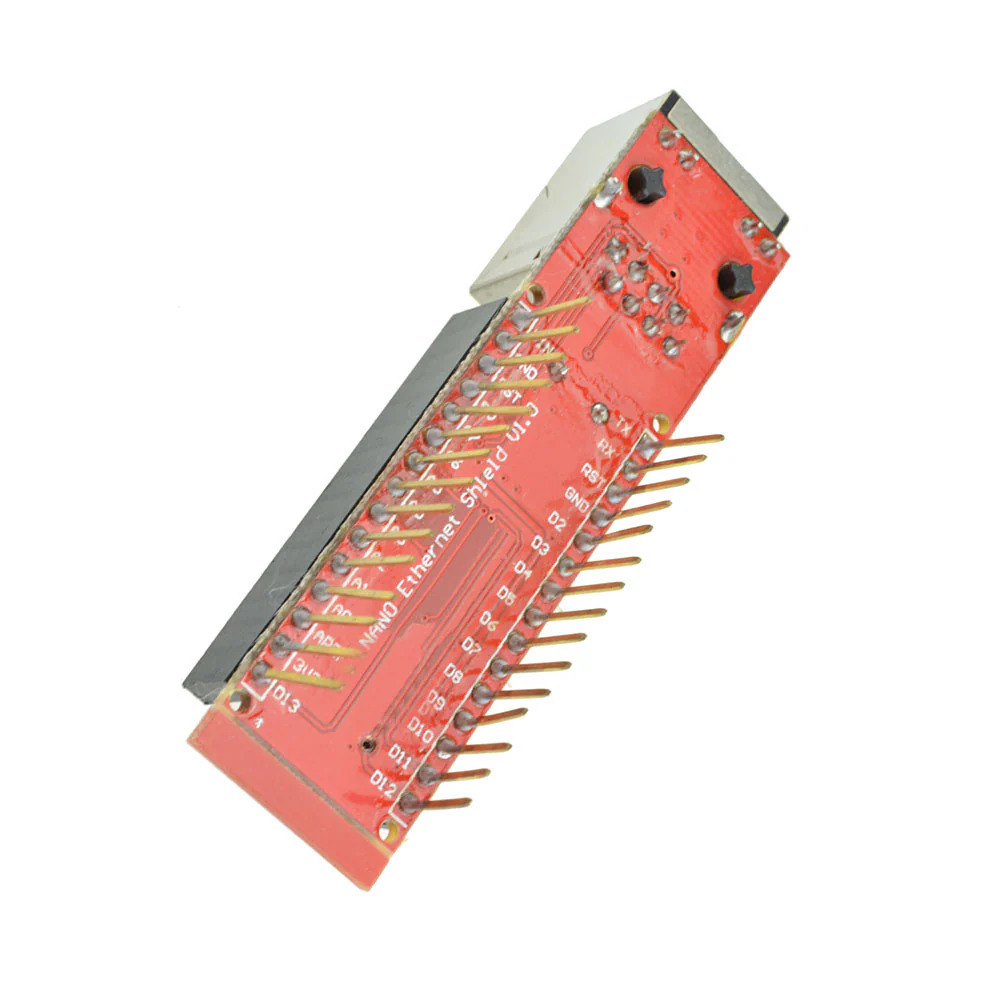

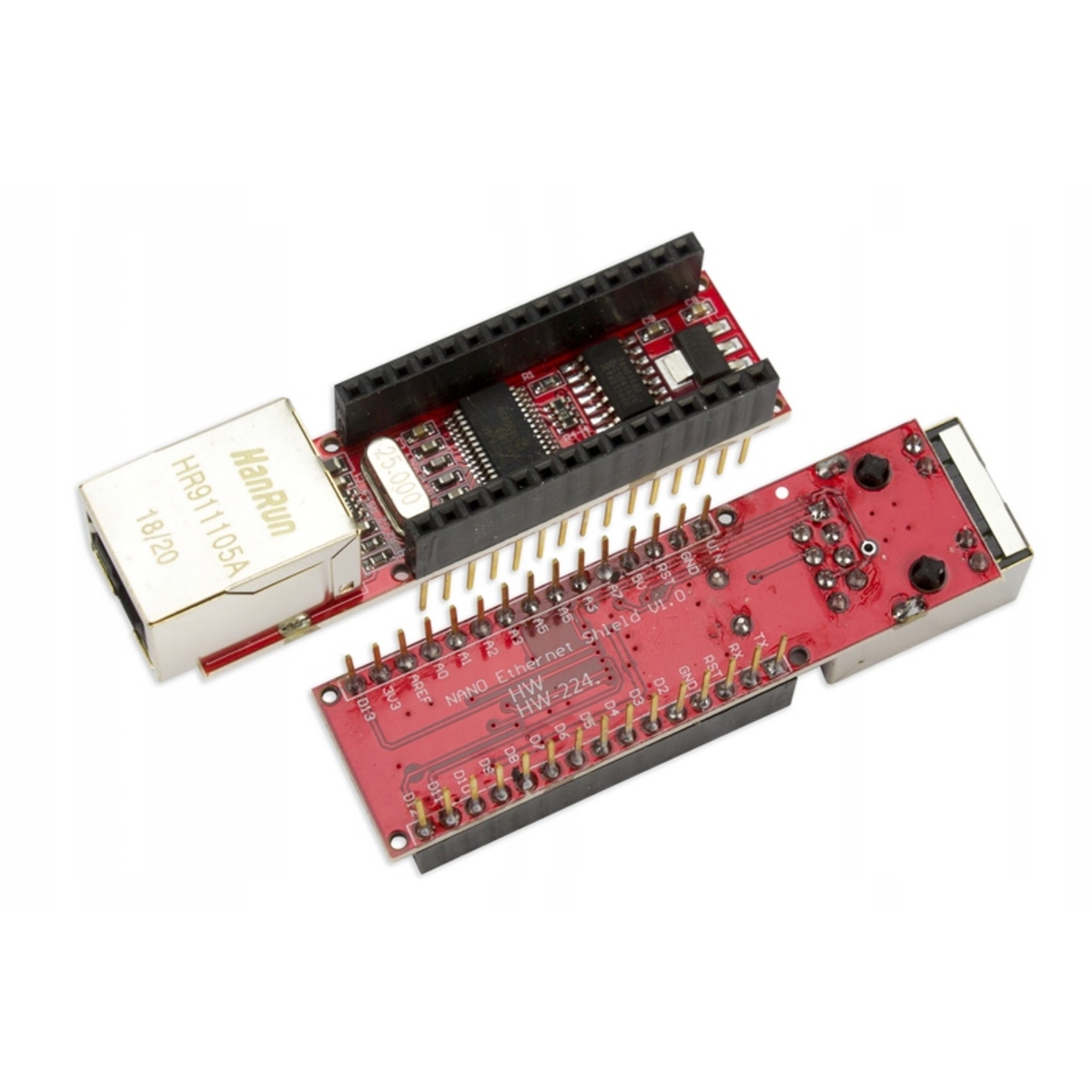

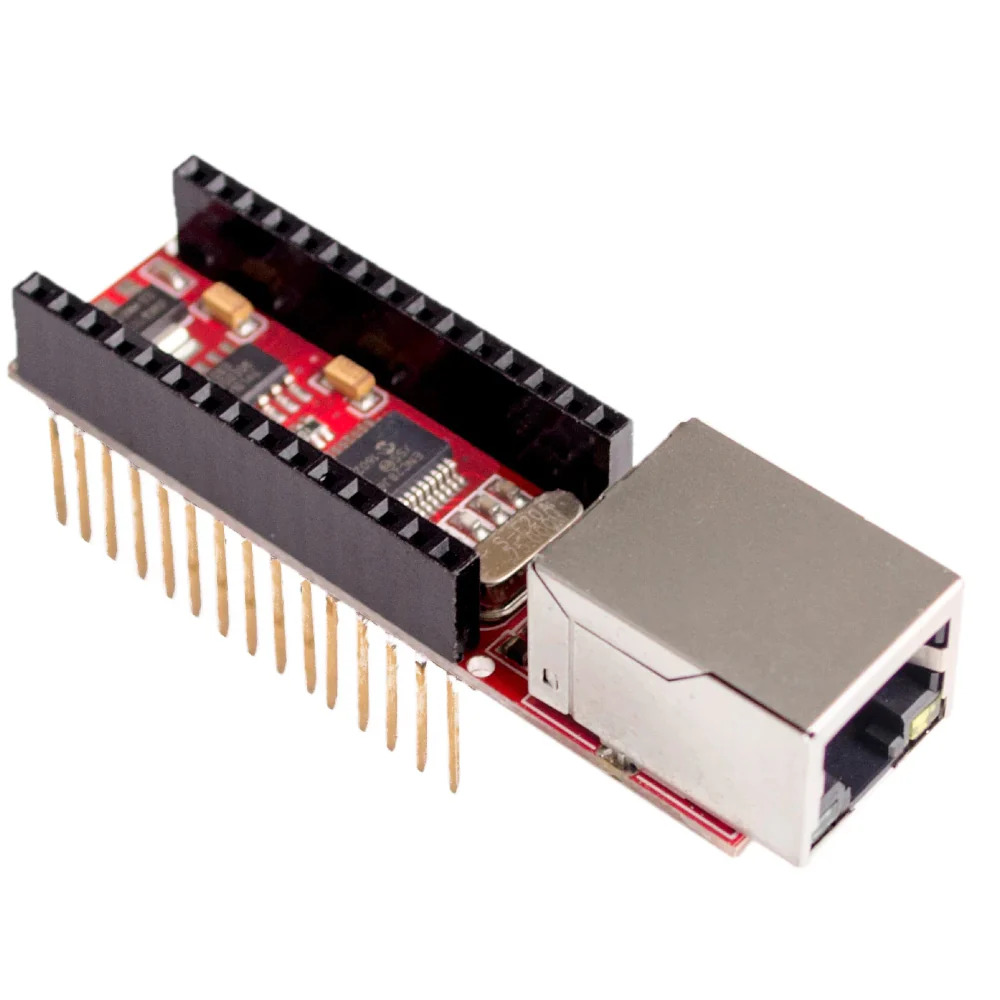

ENC28J60 Ethernet Shield for Arduino Nano 3.0 with RJ45

The ENC28J60 Ethernet Shield for Arduino Nano 3.0 RJ45 is a networking expansion board designed to add wired Ethernet connectivity to Arduino Nano 3.0 and compatible microcontroller projects. It integrates the ENC28J60 Ethernet controller chip and a standard RJ45 Ethernet port, enabling Arduino Nano to connect to local area networks (LAN) for internet communication, HTTP servers, IoT data logging, and remote control applications.

This shield is ideal for home automation, networked sensors, web-based control interfaces, and IoT devices that require reliable Ethernet communication. It uses the SPI interface for communication with the Arduino Nano and is compatible with existing Arduino libraries such as EtherCard or UIPEthernet.

KEY FEATURES

• Adds Ethernet connectivity to Arduino Nano
• Standard RJ45 network port
• ENC28J60 controller chip
• SPI interface for communication with microcontroller
• Supports wired TCP/IP networking
• Compatible with Arduino Nano 3.0 form factor
• Ideal for IoT, web servers, and LAN applications

SPECIFICATIONS

• Ethernet Controller ENC28J60
• Interface SPI digital communication
• Network Port Standard RJ45
• Operating Voltage 5V DC (logic and board power)
• Compatible With Arduino Nano 3.0
• Communication Protocol TCP/IP stack via libraries

INTERFACES

• VCC 5V power input
• GND Ground
• SCK SPI clock
• MISO SPI master in slave out
• MOSI SPI master out slave in
• CS Chip select input
• RST Reset input
• RJ45 Ethernet network port
