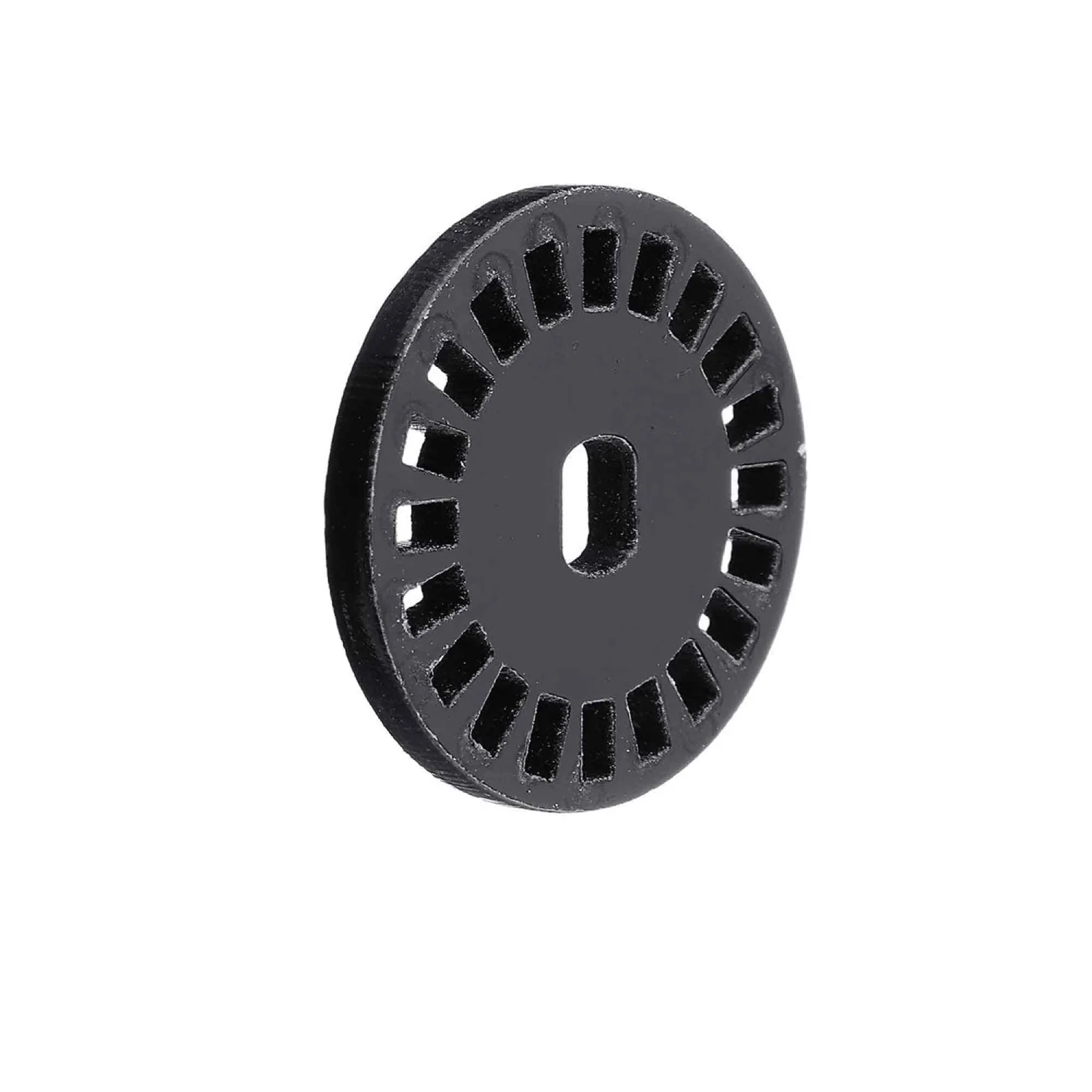

Encoder Disc (Slotted Rotary Encoder Disc for Speed and Position Sensing)

The Encoder Disc is a precision slotted rotary disc designed for speed, position, and direction measurement in rotary encoder systems. Mounted directly onto a motor or rotating shaft, the disc works with optical or infrared encoder sensors to generate digital pulse signals as the slots pass through the sensor. These pulses can be counted by a microcontroller or encoder interface to accurately determine rotational speed (RPM), angular position, and direction of rotation. The encoder disc is widely used in robotics, CNC machines, automation equipment, motor control systems, and educational electronics projects.

Key Features -

• Precision slotted rotary encoder disc

• Compatible with optical and infrared encoder sensors

• Generates pulse signals for rotation detection

• Lightweight and durable construction

• Accurate speed and position measurement

• Suitable for high-speed operation

• Easy center-shaft mounting

• Low inertia design

• Stable and reliable performance

• Ideal for motor control and automation

Specifications -

• Product type - Rotary Encoder Disc

• Disc type - Slotted Optical Encoder Disc

• Material - Plastic / Acrylic (Model Dependent)

• Slot count - Model Dependent

• Mounting type - Center Bore Shaft Mount

• Outer diameter - Standard Motor Fit (Model Dependent)

• Detection method - Optical / Infrared Interruption

• Compatible sensors - Slot-Type Optocoupler and IR Encoder Sensors

• Operating speed - High-Speed Rotation Compatible

• Operating temperature - 0C to 70C

Applications -

• Motor speed measurement

• Rotary encoder systems

• Robotics

• CNC machines

• Industrial automation

• Motion control

• RPM measurement

• Educational electronics
