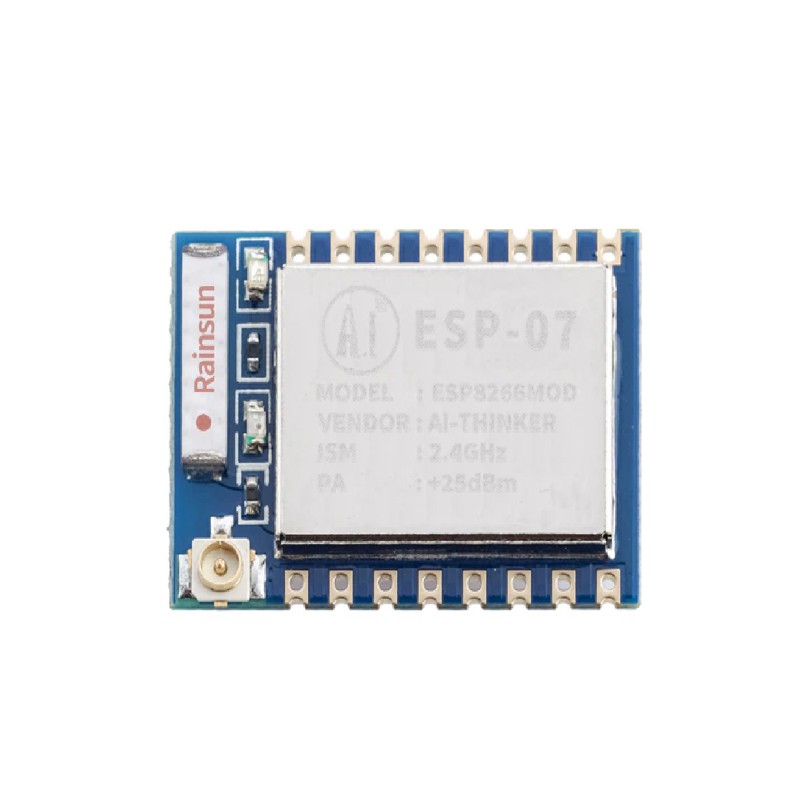

ESP8266 ESP-07 Wireless WiFi Module (ESP-07 WiFi Transceiver Module with IPEX Antenna Connector)

The ESP8266 ESP-07 Wireless WiFi Module is a compact WiFi transceiver designed for Internet of Things (IoT), wireless communication, home automation, and embedded networking applications. Based on the ESP8266 SoC, it integrates a complete TCP/IP protocol stack, allowing standalone WiFi operation or wireless connectivity for external microcontrollers. The ESP-07 supports both Station (STA) and Access Point (AP) modes and features an IPEX connector for an external antenna, providing improved wireless range and signal stability. It communicates through a UART interface and is compatible with Arduino, ESP32, STM32, Raspberry Pi, and other embedded platforms.

Key Features -

• Based on ESP8266 WiFi SoC

• Integrated TCP/IP protocol stack

• Supports Station (STA) and Access Point (AP) modes

• UART serial communication interface

• External antenna support via IPEX connector

• Supports IEEE 802.11 b/g/n WiFi

• Low power consumption

• Compact surface-mount module

• Supports AT commands and custom firmware

• Ideal for IoT and embedded networking applications

Specifications -

• Product type - WiFi Wireless Module

• Model - ESP-07

• Chipset - ESP8266

• Operating voltage - 3.0V to 3.6V DC

• Recommended voltage - 3.3V DC

• Wireless standard - IEEE 802.11 b/g/n

• Frequency band - 2.4GHz ISM Band

• Communication interface - UART Serial

• Flash memory - External SPI Flash Supported

• Antenna type - IPEX External Antenna Connector

• Security protocols - WEP, WPA and WPA2

• Operating temperature - Minus 40C to 85C

Applications -

• IoT devices

• Home automation

• Wireless sensor networks

• Smart appliances

• Remote monitoring

• Industrial automation

• Embedded networking

• DIY electronics projects
