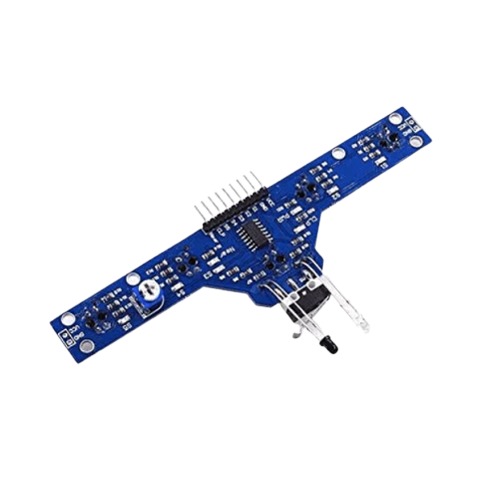

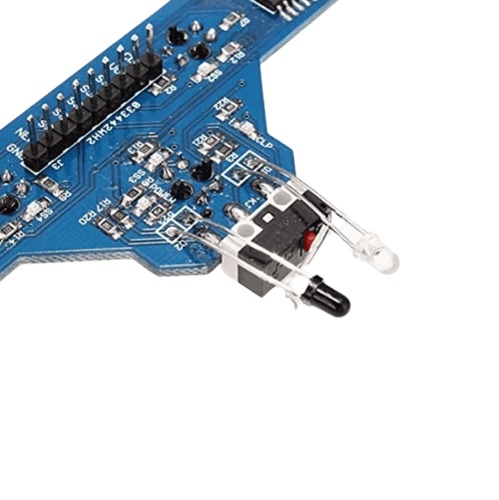

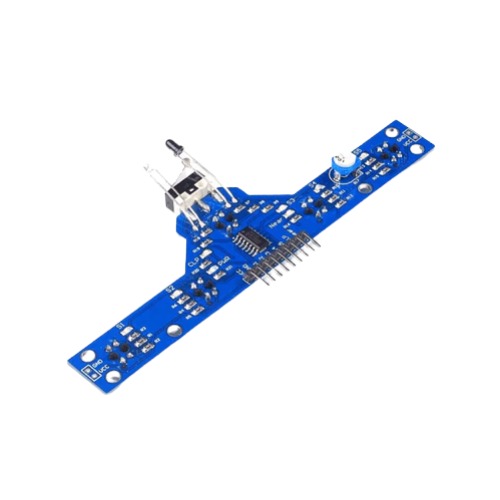

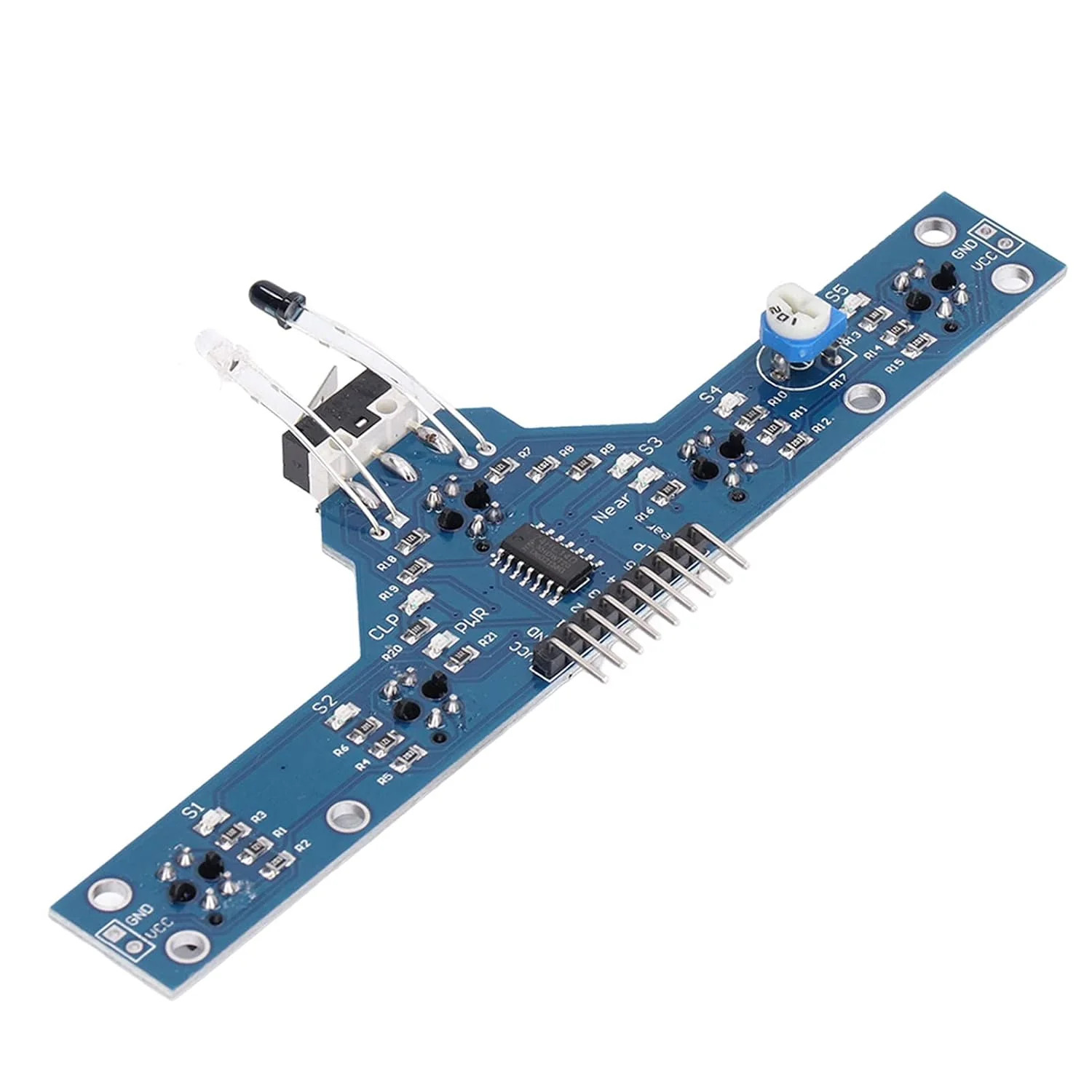

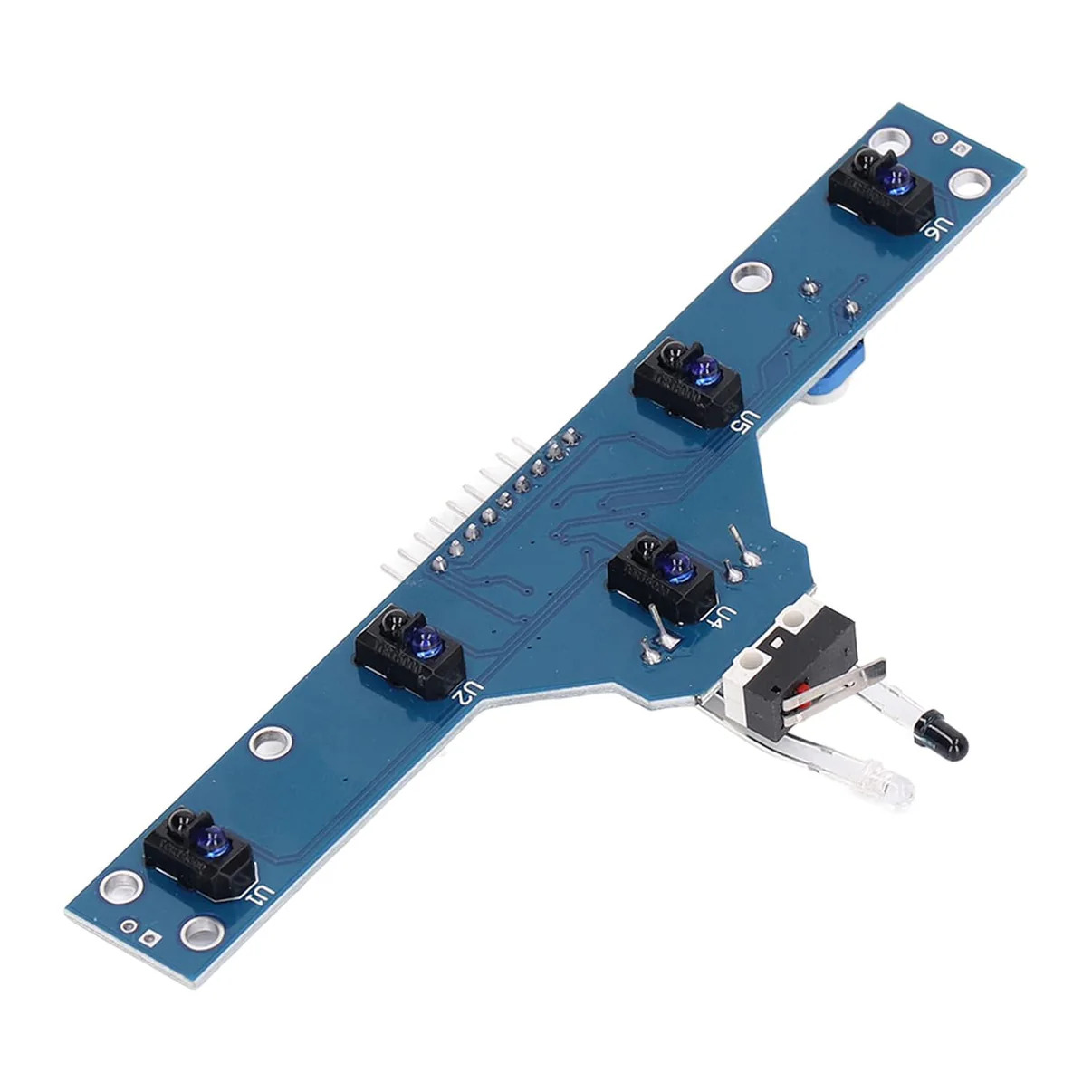

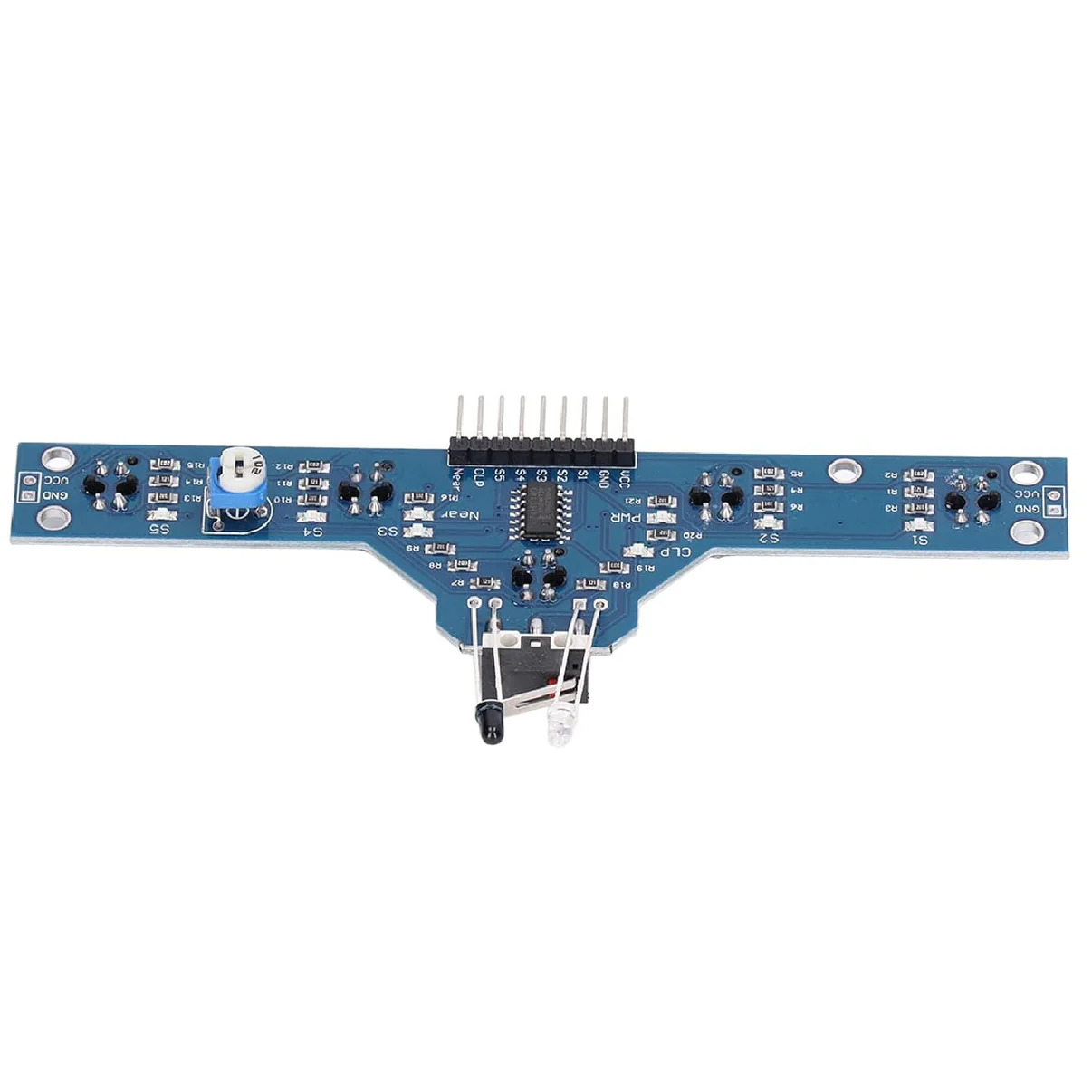

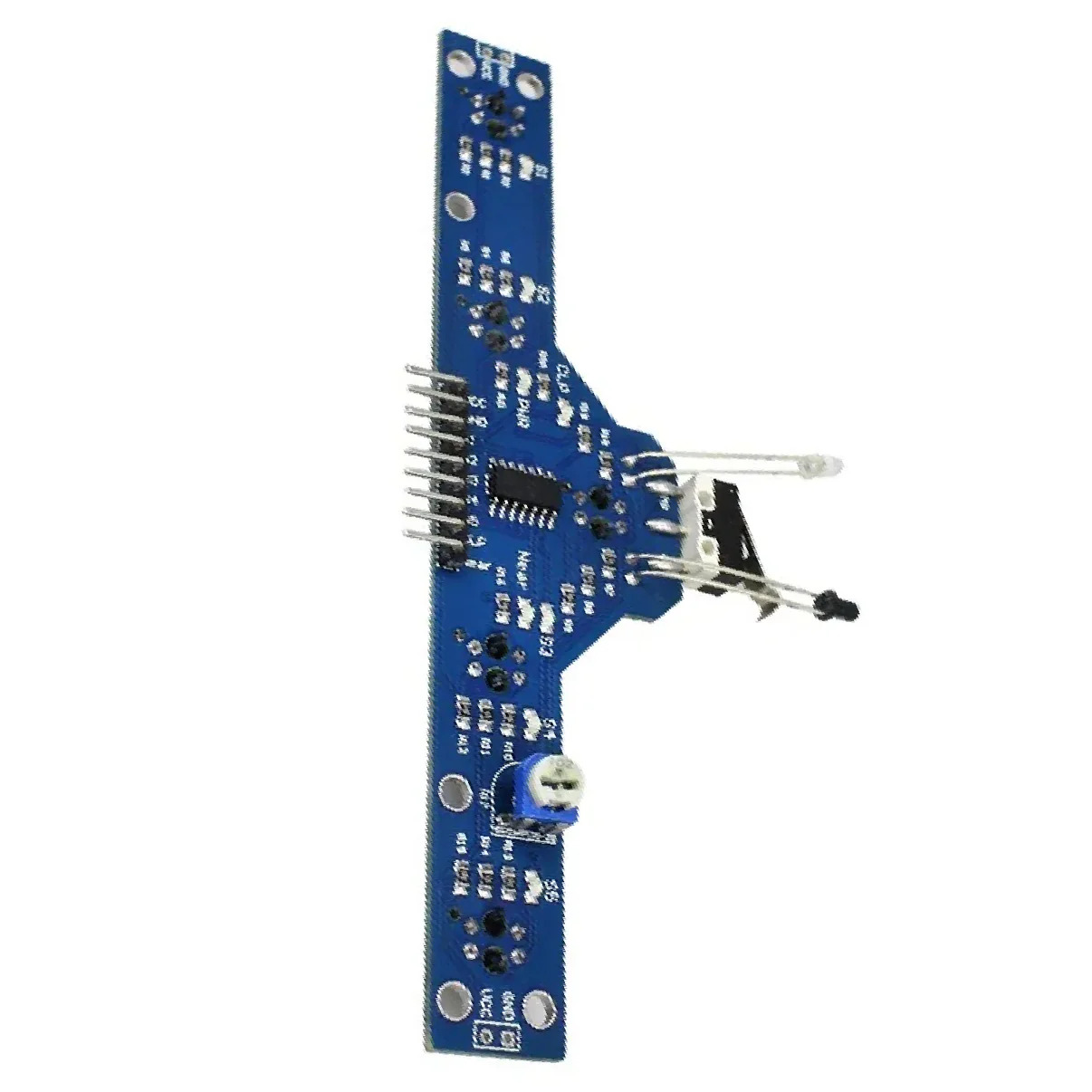

Five Channel Infrared Tracking Sensor
The Five Channel Infrared Tracking Sensor is a compact optical module designed for multi-point line detection in robotics and automation projects. It integrates five infrared emitter and receiver pairs arranged in a row to detect contrast between surface colors, enabling precise tracking of lines, edges, and paths. Each channel provides a digital output that changes state when it detects a reflective surface, making it easy to interface with microcontrollers for real-time navigation.
This sensor module is ideal for line following robots, maze solvers, autonomous vehicles, and educational robotic platforms. Onboard potentiometers allow you to adjust sensitivity for different surface types. The module includes mounting holes and standard pin spacing for easy integration with development boards like Arduino, ESP series, PIC, and others.
KEY FEATURES
- Five independent IR tracking sensors
- Digital output signals for each channel
- Onboard potentiometers for sensitivity adjustment
- Fast response for real-time line detection
- Compact design with mounting holes
- Easy to interface with microcontrollers
- Suitable for line following and robotics projects
SPECIFICATIONS
- Number of Channels 5
- Sensor Type Infrared emitter and receiver pairs
- Output Type Digital
- Operating Voltage 3.3V to 5V DC
- Detection Height Few millimeters above surface
- Response Time Fast
- Board Material FR4 PCB
INTERFACES
- VCC Power input
- GND Ground
- OUT1 Channel 1 output
- OUT2 Channel 2 output
- OUT3 Channel 3 output
- OUT4 Channel 4 output
- OUT5 Channel 5 output
