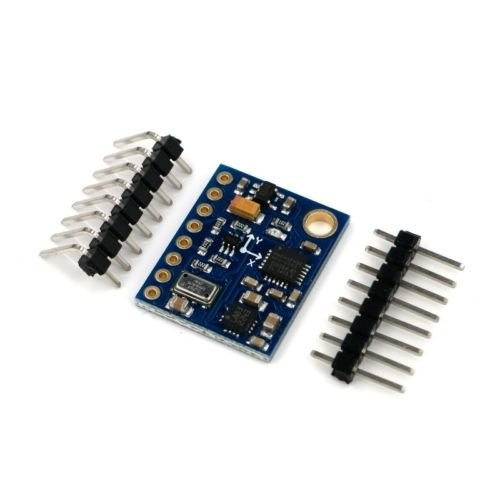

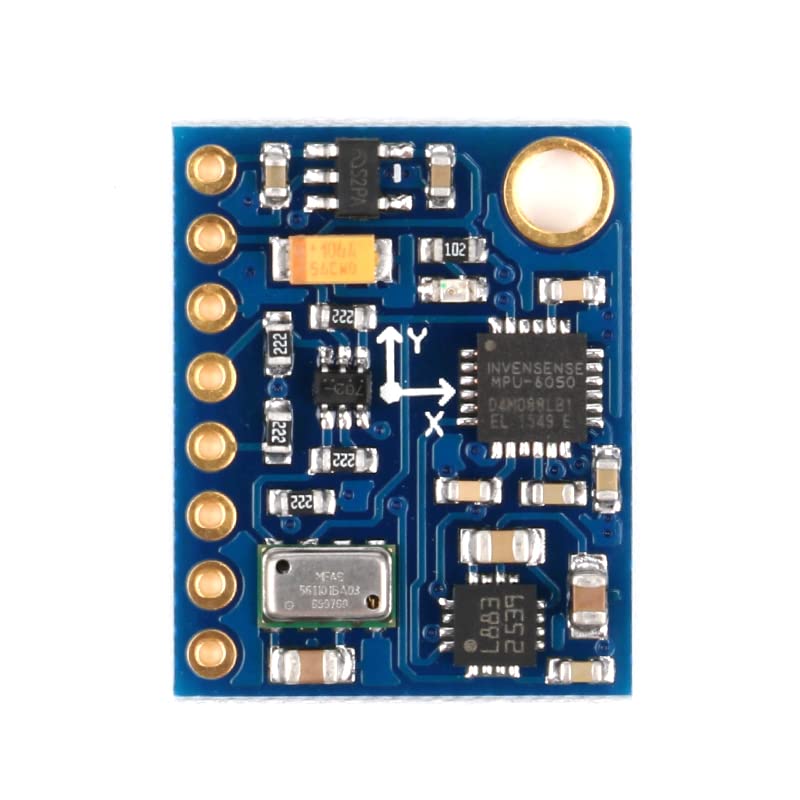

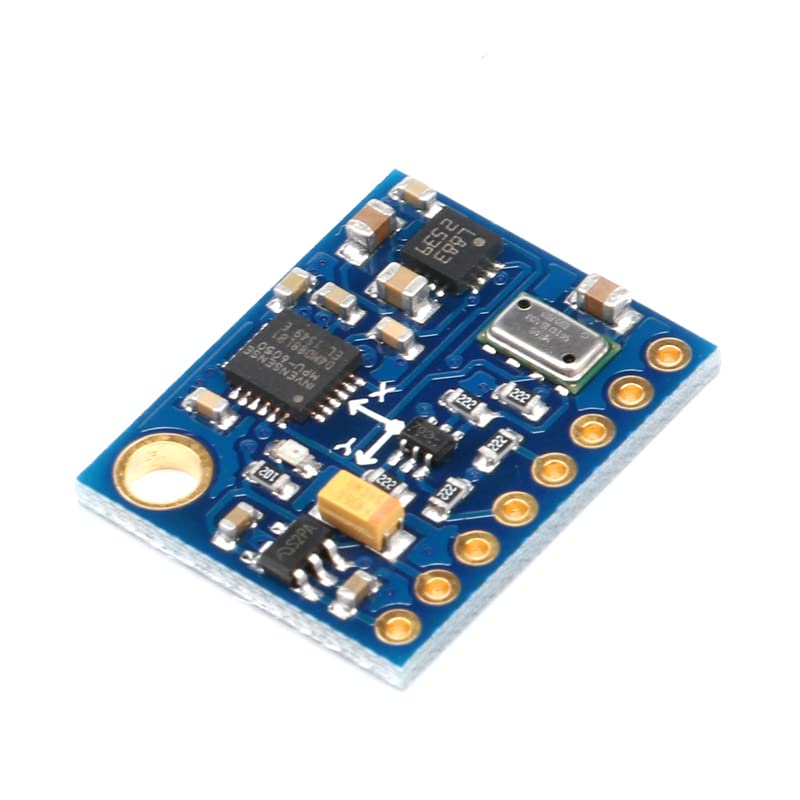

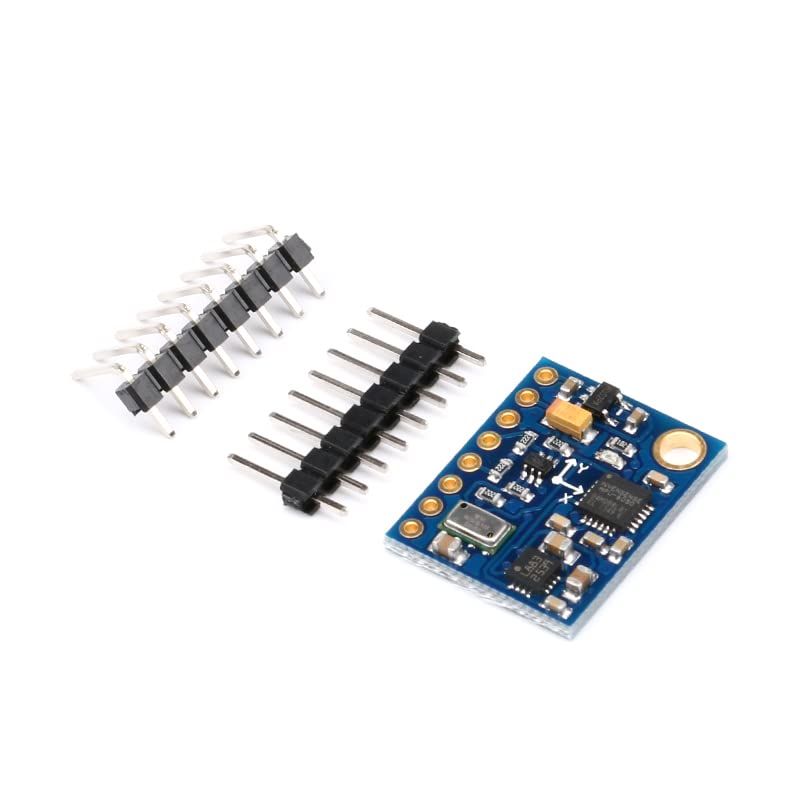

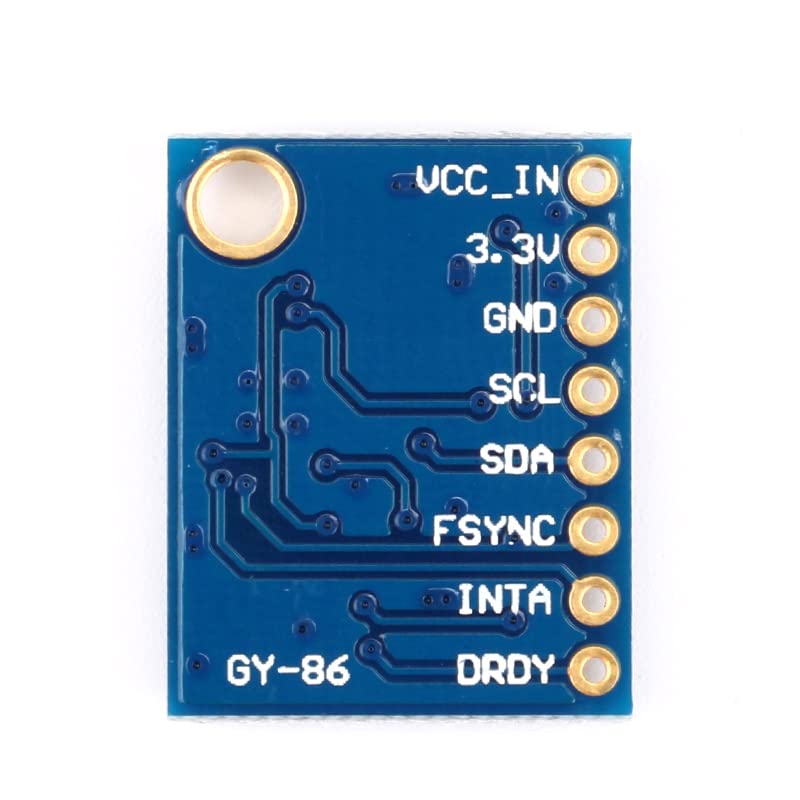

GY-86 10DOF IMU Accelerometer Gyroscope Compass Barometric Pressure Sensor Module

The GY-86 10DOF IMU Sensor Module is a compact multi-sensor board that combines a 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer (compass), and a high-precision barometric pressure sensor into a single module. It provides comprehensive motion, orientation, heading, and altitude data, making it ideal for drones, robotics, navigation systems, wearable devices, and IoT applications. The module communicates via the I2C interface and is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, PIC, and other microcontroller platforms.

Key Features -

• 10 Degrees of Freedom (10DOF) IMU module

• Integrated 3-axis accelerometer

• Integrated 3-axis gyroscope

• Integrated 3-axis magnetometer (compass)

• Integrated barometric pressure sensor

• High-speed I2C digital communication

• Real-time motion and orientation sensing

• Altitude and atmospheric pressure measurement

• Compact and lightweight PCB design

• Ideal for drones, robotics and navigation systems

Specifications -

• Product type - 10DOF IMU Sensor Module

• Module model - GY-86

• Accelerometer - 3-Axis Accelerometer

• Gyroscope - 3-Axis Gyroscope

• Magnetometer - 3-Axis Magnetometer

• Pressure sensor - Barometric Pressure Sensor

• Communication interface - I2C

• Operating voltage - 3.3V to 5V DC

• Output data - Motion, Orientation, Pressure and Altitude

• Mounting type - PCB Module

Applications -

• Drone flight controllers

• Robotics

• UAV navigation

• Motion tracking systems

• Wearable devices

• Altitude measurement

• IoT projects

• Embedded electronics
