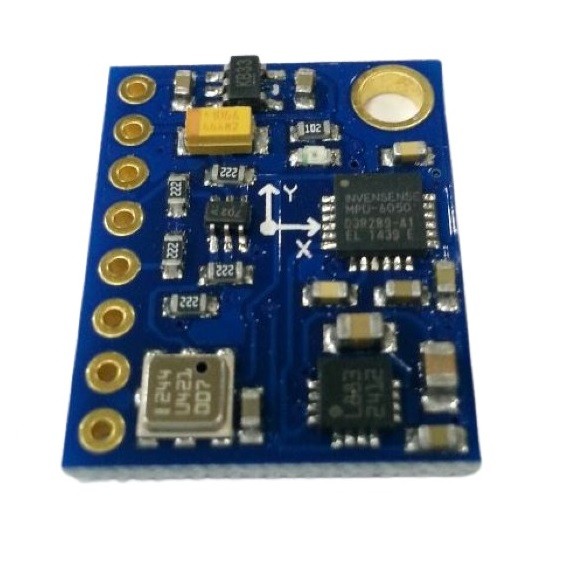

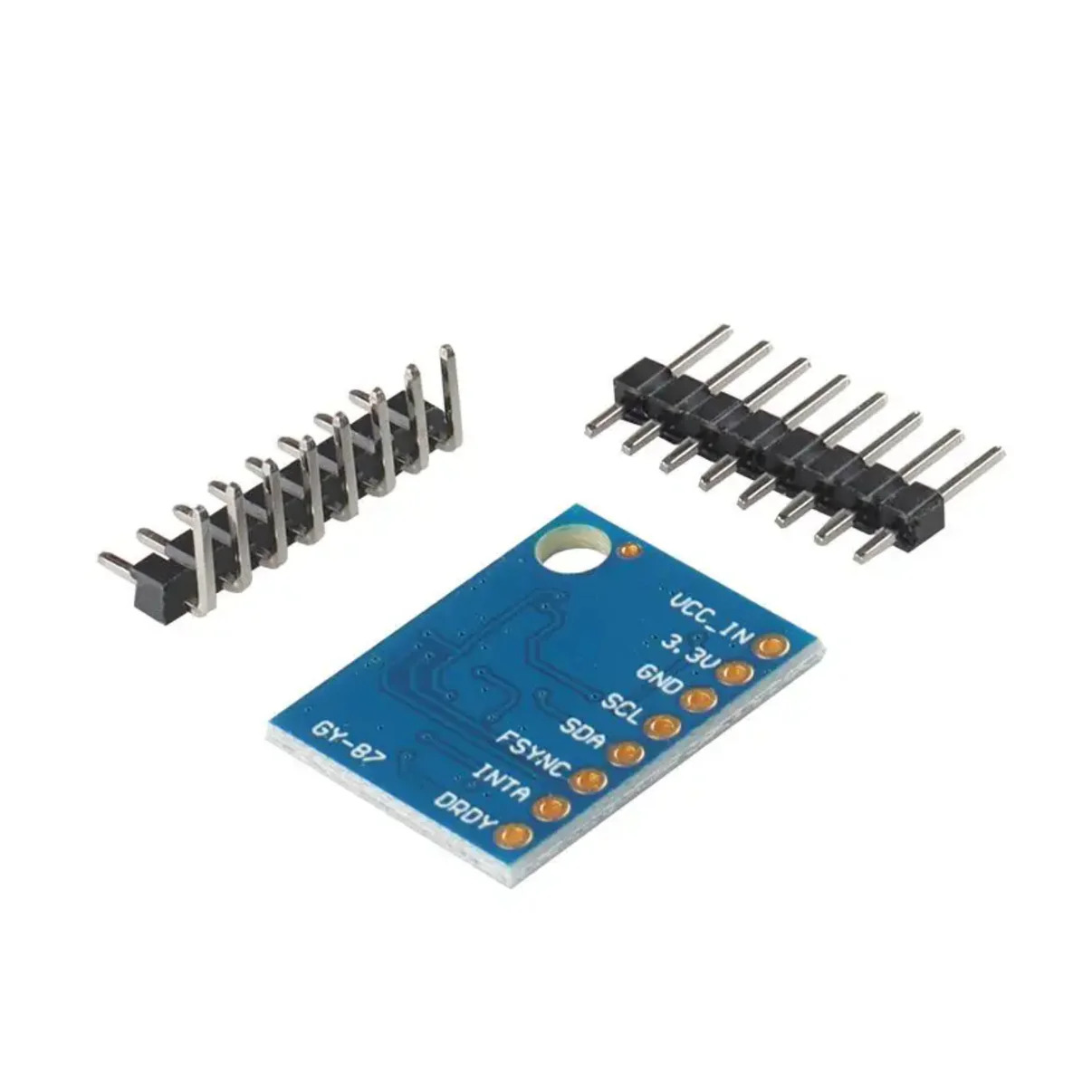

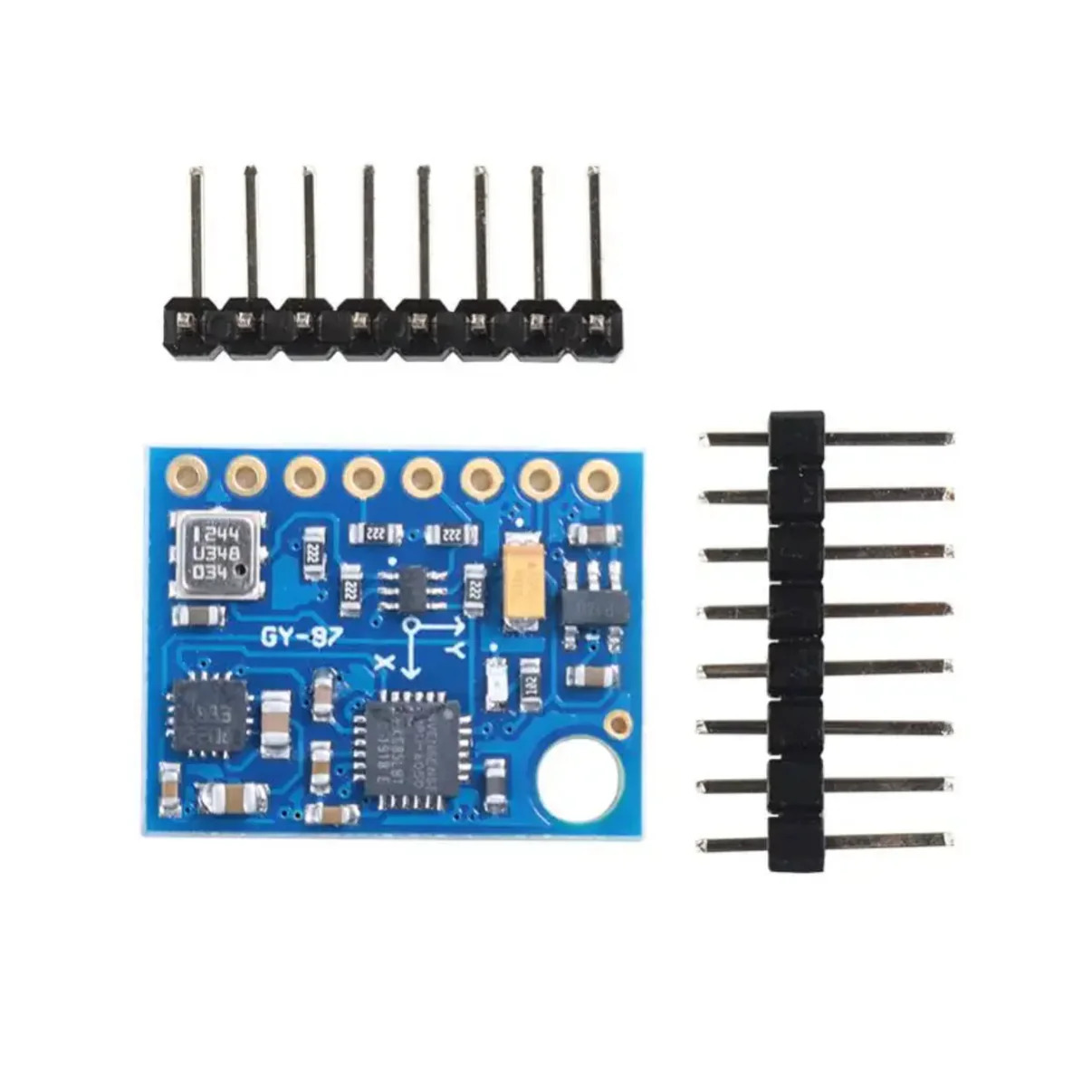

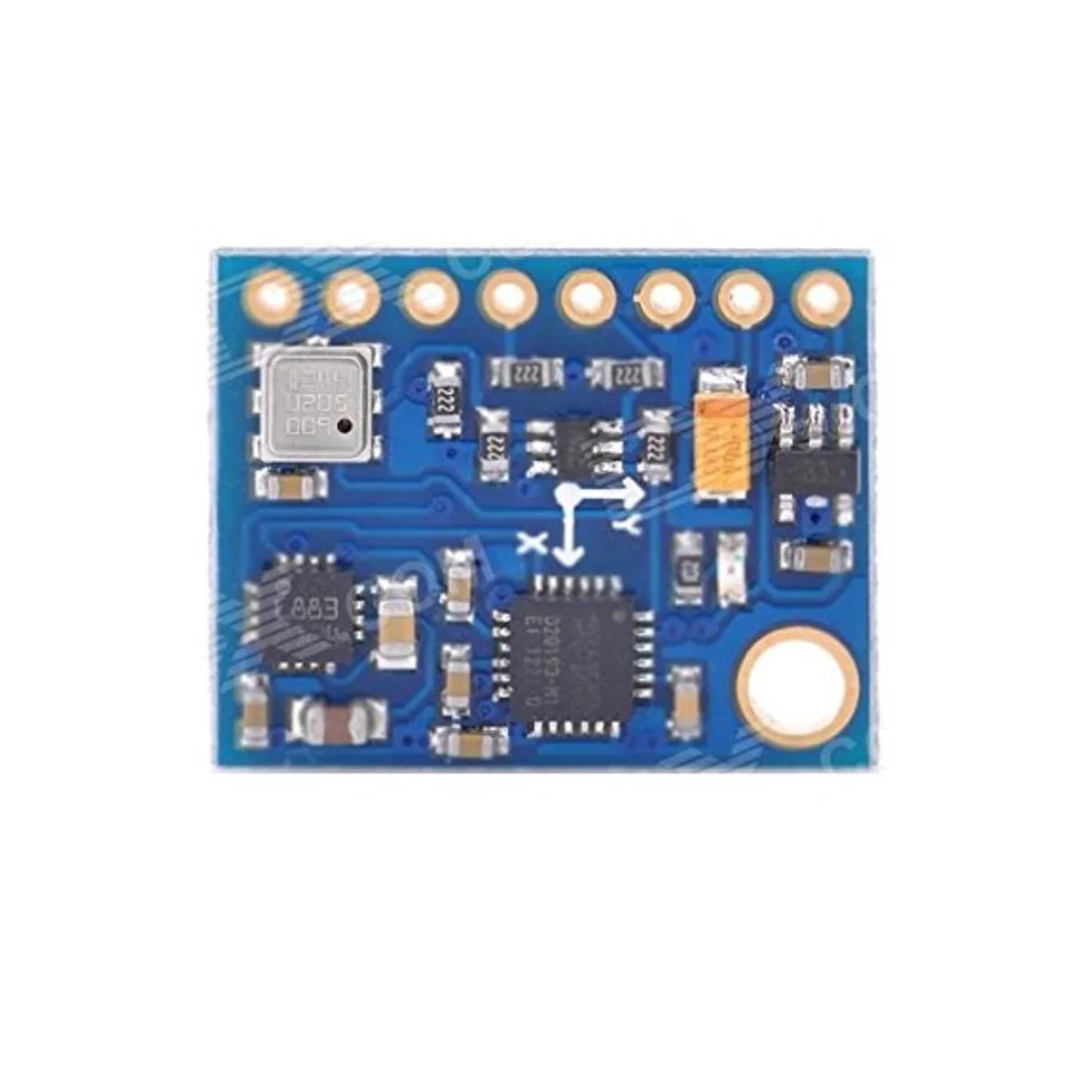

GY-87 / HW-290 10DOF Sensor Module (MPU6050, HMC5883L, BMP180, I2C, 3.3V-5V IMU)

The GY-87 / HW-290 10DOF Sensor Module is a compact multi-sensor development board that combines motion and environmental sensing into a single module. It integrates the MPU6050 3-axis accelerometer and 3-axis gyroscope, the HMC5883L 3-axis magnetometer (compass), and the BMP180 digital barometric pressure sensor to provide comprehensive motion, orientation, heading, altitude, and temperature data. Communicating through the I2C interface, the module is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other microcontroller platforms. It is ideal for drones, robotics, UAVs, navigation systems, wearable devices, and IoT applications requiring accurate motion and environmental sensing.

Key Features -

• 10 Degrees of Freedom (10DOF) sensor module

• Integrated MPU6050 accelerometer and gyroscope

• Integrated HMC5883L 3-axis magnetometer

• Integrated BMP180 barometric pressure sensor

• I2C digital communication interface

• Real-time motion and orientation sensing

• Altitude, pressure and temperature measurement

• Compact and lightweight PCB design

• Low power consumption

• Ideal for drones, robotics and navigation

Specifications -

• Product type - 10DOF Sensor Module

• Module model - GY-87 / HW-290

• Accelerometer - 3-Axis MPU6050

• Gyroscope - 3-Axis MPU6050

• Magnetometer - 3-Axis HMC5883L

• Pressure sensor - BMP180 Digital Barometric Pressure Sensor

• Communication interface - I2C

• Operating voltage - 3.3V to 5V DC

• Output data - Motion, Orientation, Pressure and Temperature

• Mounting type - PCB Module

• Operating temperature - Standard Ambient

Applications -

• Drone flight controllers

• UAV navigation

• Robotics

• Motion tracking

• Electronic compass systems

• Altitude measurement

• IoT devices

• Embedded electronics
