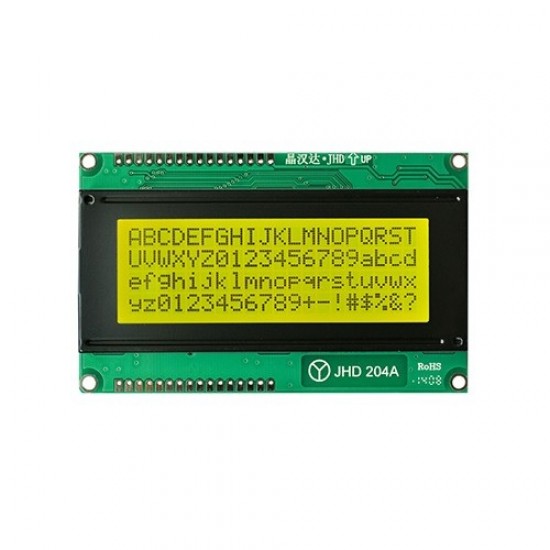

JHD629 204A 20x4 LCD Display Yellow Green Backlight Module (HD44780 Compatible Character LCD)

The JHD629 204A 20x4 LCD Display Module is a character-based liquid crystal display designed to display up to 80 characters in four rows, with 20 characters per row. It uses the SPLC780D controller, which is compatible with the standard HD44780 interface, making it easy to integrate with Arduino, STM32, PIC, AVR, and other microcontroller-based systems.

The yellow-green STN display with LED backlight provides clear character visibility and a wide viewing angle, making it suitable for embedded systems, control panels, instrumentation, and electronic projects.

Key Features -

• 20x4 character LCD display

• Displays 20 characters in each of 4 rows

• Yellow-green STN display

• LED backlight for improved visibility

• SPLC780D controller with HD44780-compatible interface

• Wide viewing angle from 6H to 12H

• 5V operating voltage

• Easy interface with microcontroller systems

• Suitable for Arduino, STM32, PIC, and AVR projects

• Compact module suitable for embedded applications

Specifications -

• Model: JHD629 204A

• Display Type: 20x4 Character LCD

• Display Format: 20 Characters x 4 Lines

• Display Technology: STN

• Backlight Color: Yellow Green

• Backlight Type: LED

• Controller: SPLC780D

• Interface: HD44780 Compatible

• Input Voltage: 5V DC

• Viewing Angle: 6H to 12H

• Display Area: 76.0 x 25.2mm

• Character Size: 2.95 x 4.75mm

• Module Dimensions: 98.0 x 60.0 x 14.0mm

Applications -

• Arduino display projects

• STM32, PIC, and AVR projects

• Embedded control systems

• Industrial control panels

• Electronic measuring instruments

• Data monitoring systems

• Digital equipment interfaces

• DIY electronics projects

• Microcontroller-based information displays
