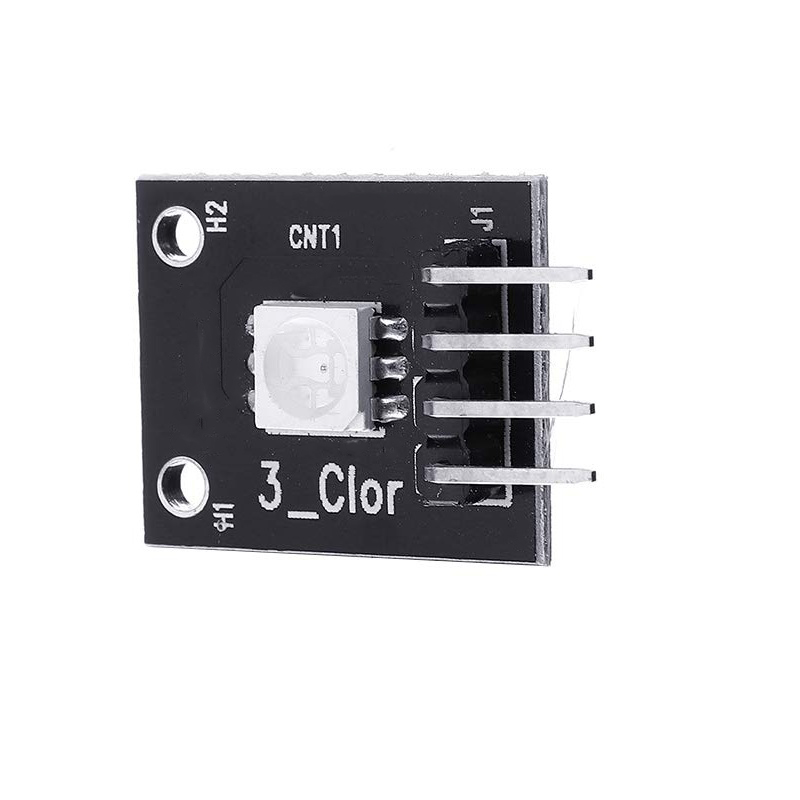

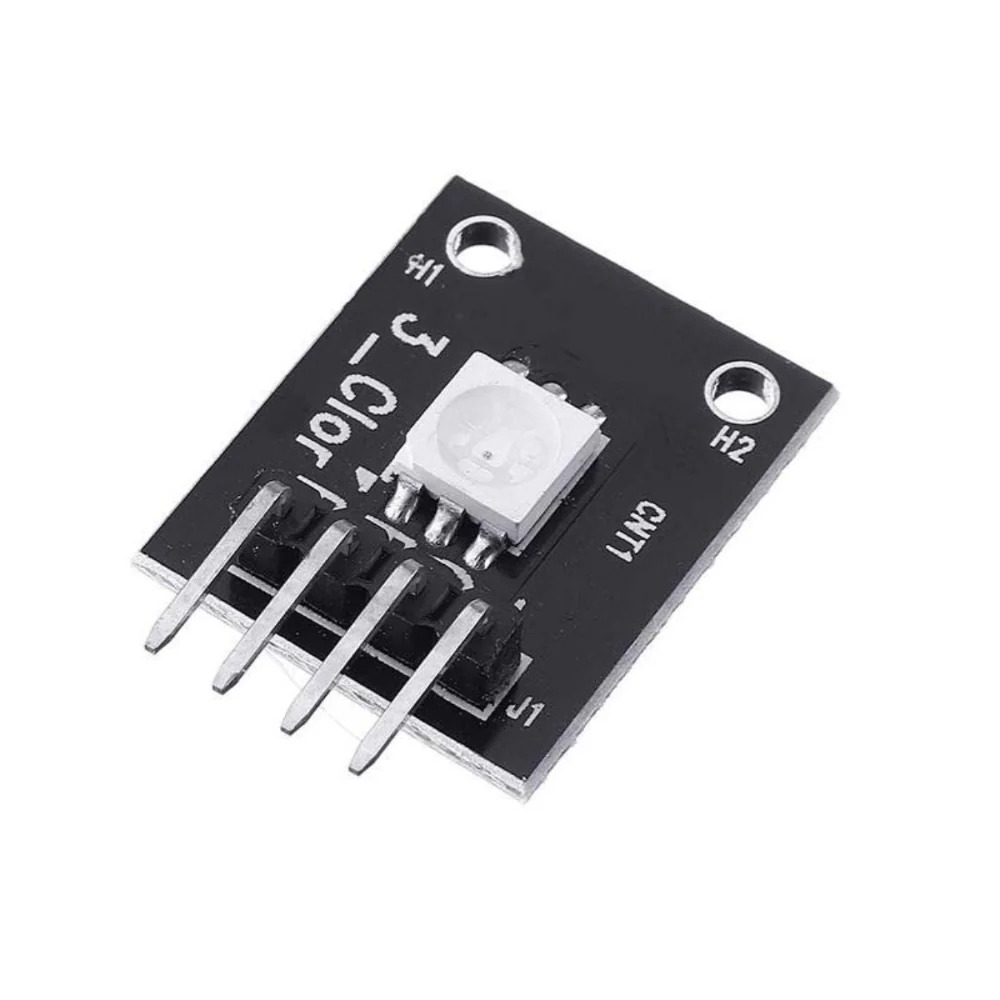

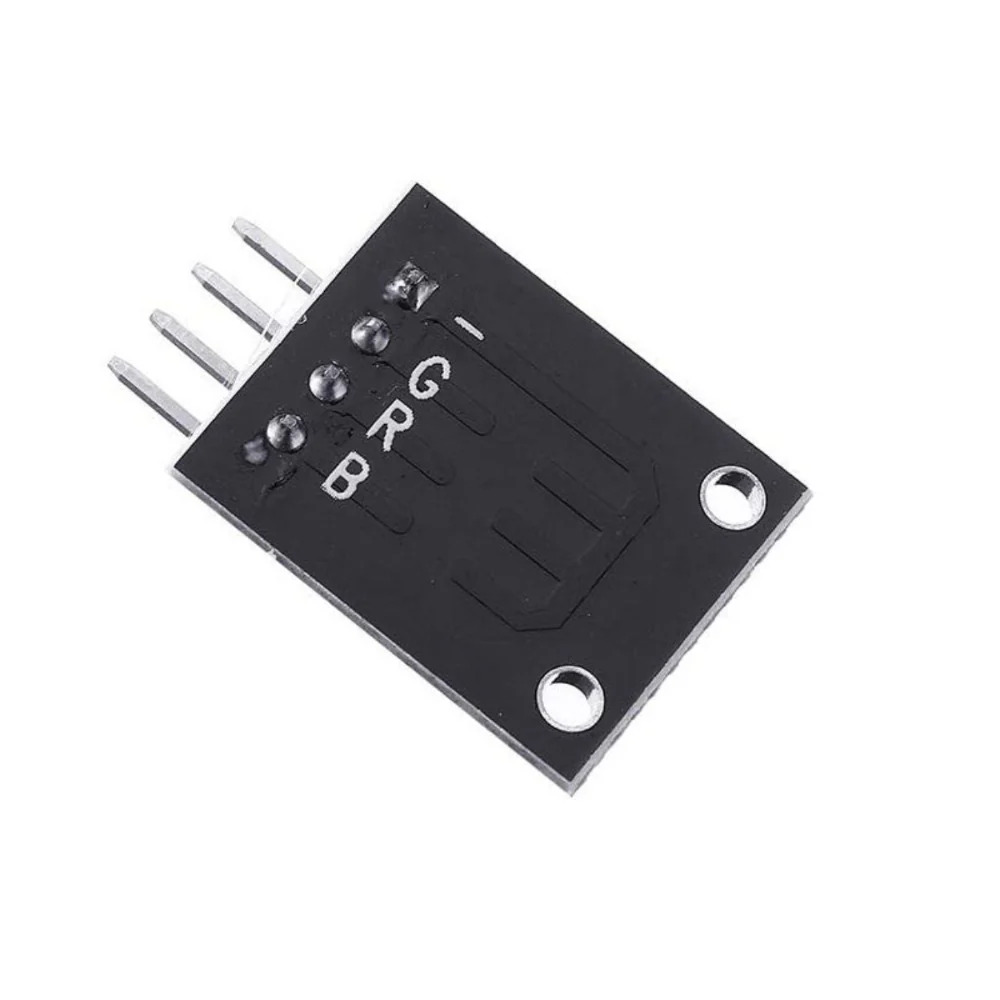

KY-009 5050 PWM RGB SMD LED Module (3.3V-5V, Common Cathode, RGB LED for Arduino & Raspberry Pi)

The KY-009 5050 PWM RGB SMD LED Module is a compact RGB lighting module designed for microcontroller and embedded system applications. It features a high-brightness 5050 RGB SMD LED with independent red, green, and blue channels that can be controlled using PWM (Pulse Width Modulation) signals to generate millions of color combinations. Compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other development boards, this module is ideal for DIY lighting effects, status indicators, decorative lighting, educational projects, and embedded electronics.

Key Features -

• High-brightness 5050 RGB SMD LED

• Independent red, green and blue control

• PWM-based color mixing

• Common cathode configuration

• Compatible with Arduino and Raspberry Pi

• Supports 3.3V and 5V operation

• Compact PCB module

• Low power consumption

• Easy microcontroller interfacing

• Ideal for DIY lighting projects

Specifications -

• Product type - RGB LED Module

• Module model - KY-009

• LED type - 5050 RGB SMD LED

• Operating voltage - 3.3V to 5V DC

• Control method - PWM (Pulse Width Modulation)

• Output configuration - Common Cathode

• Typical current per channel - 20mA

• Number of channels - 3 (Red, Green, Blue)

• Operating temperature - 0C to 50C

• Mounting type - PCB Module

Applications -

• RGB lighting effects

• Status indicators

• Decorative lighting

• Arduino projects

• ESP32 and ESP8266 projects

• Raspberry Pi projects

• Educational electronics

• Embedded electronics
