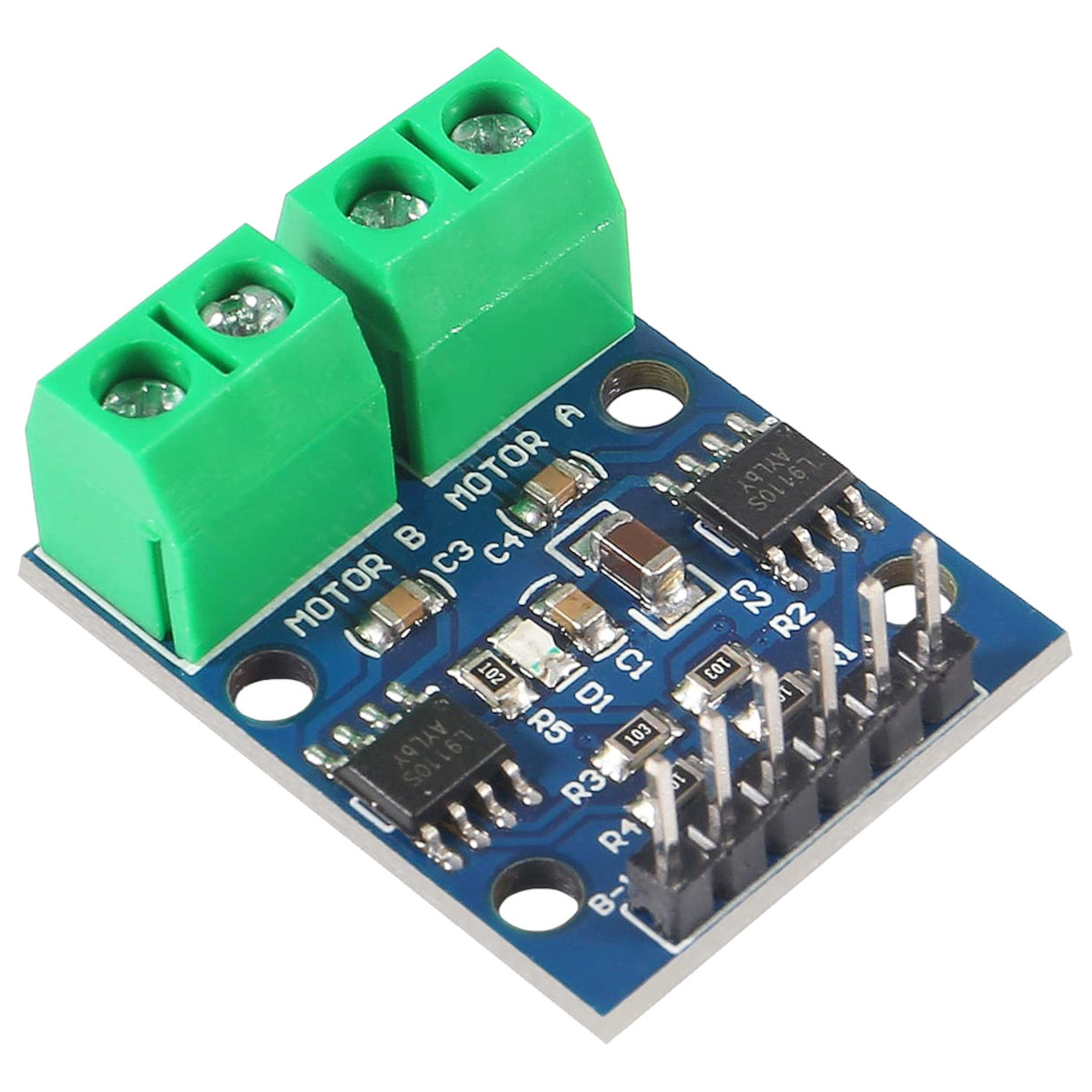

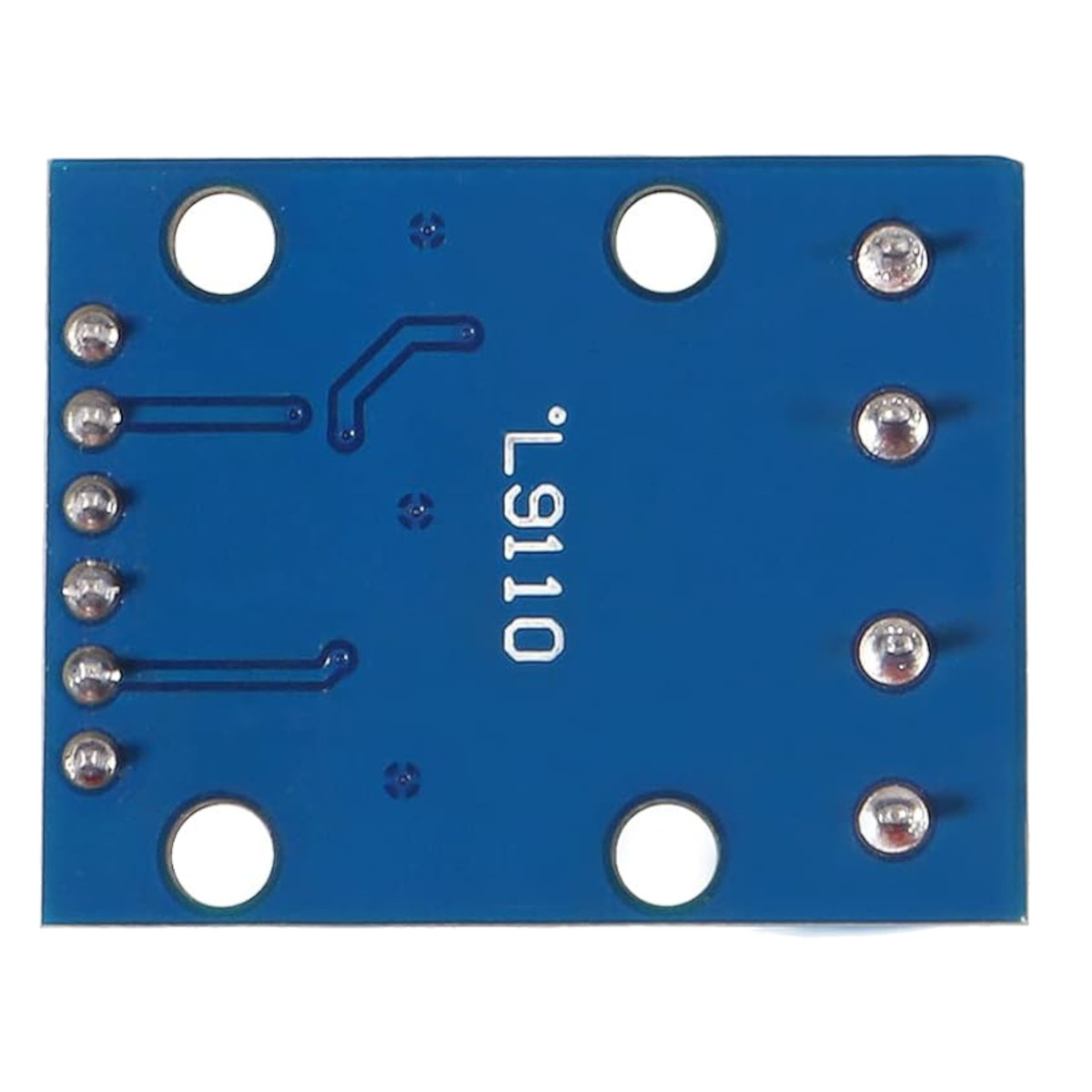

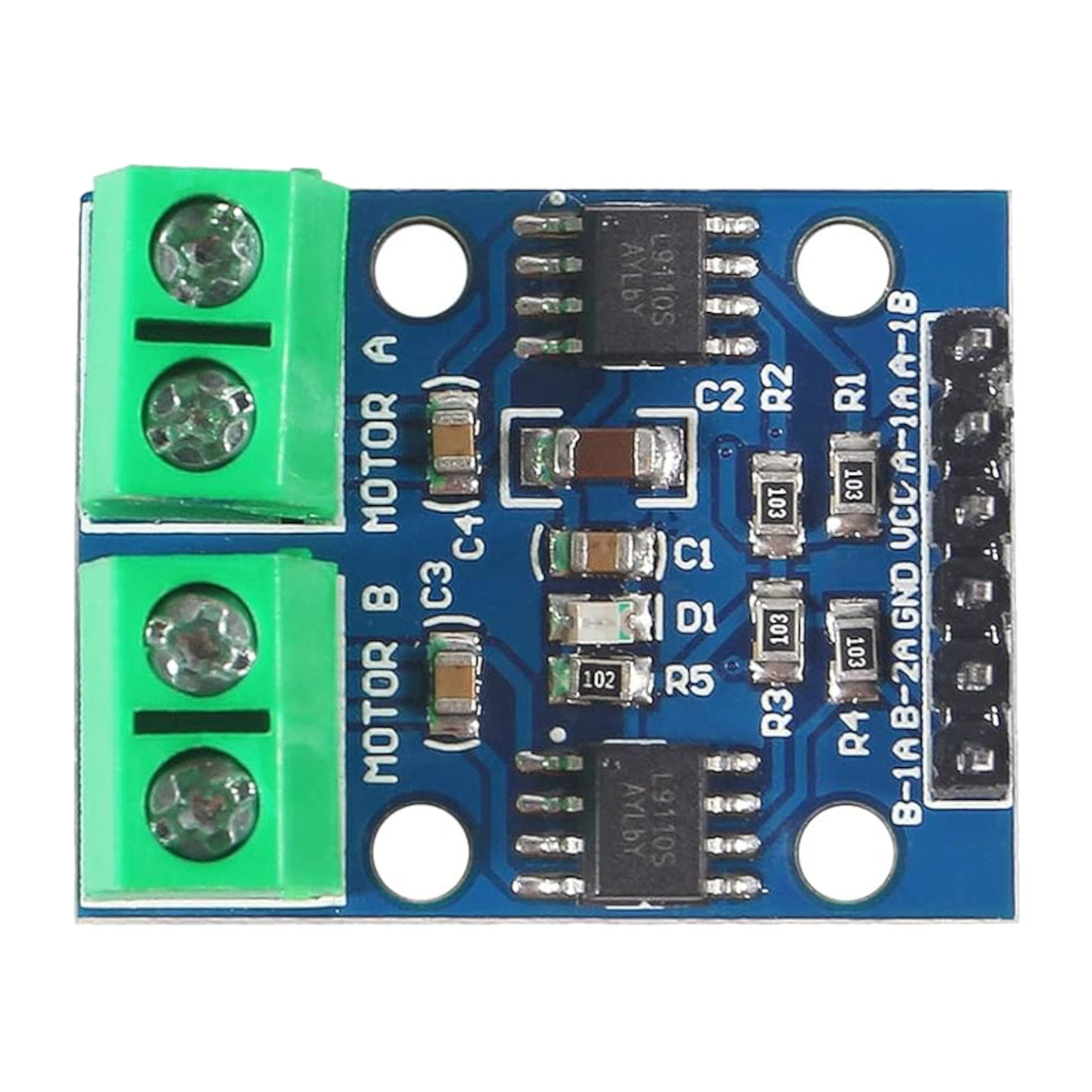

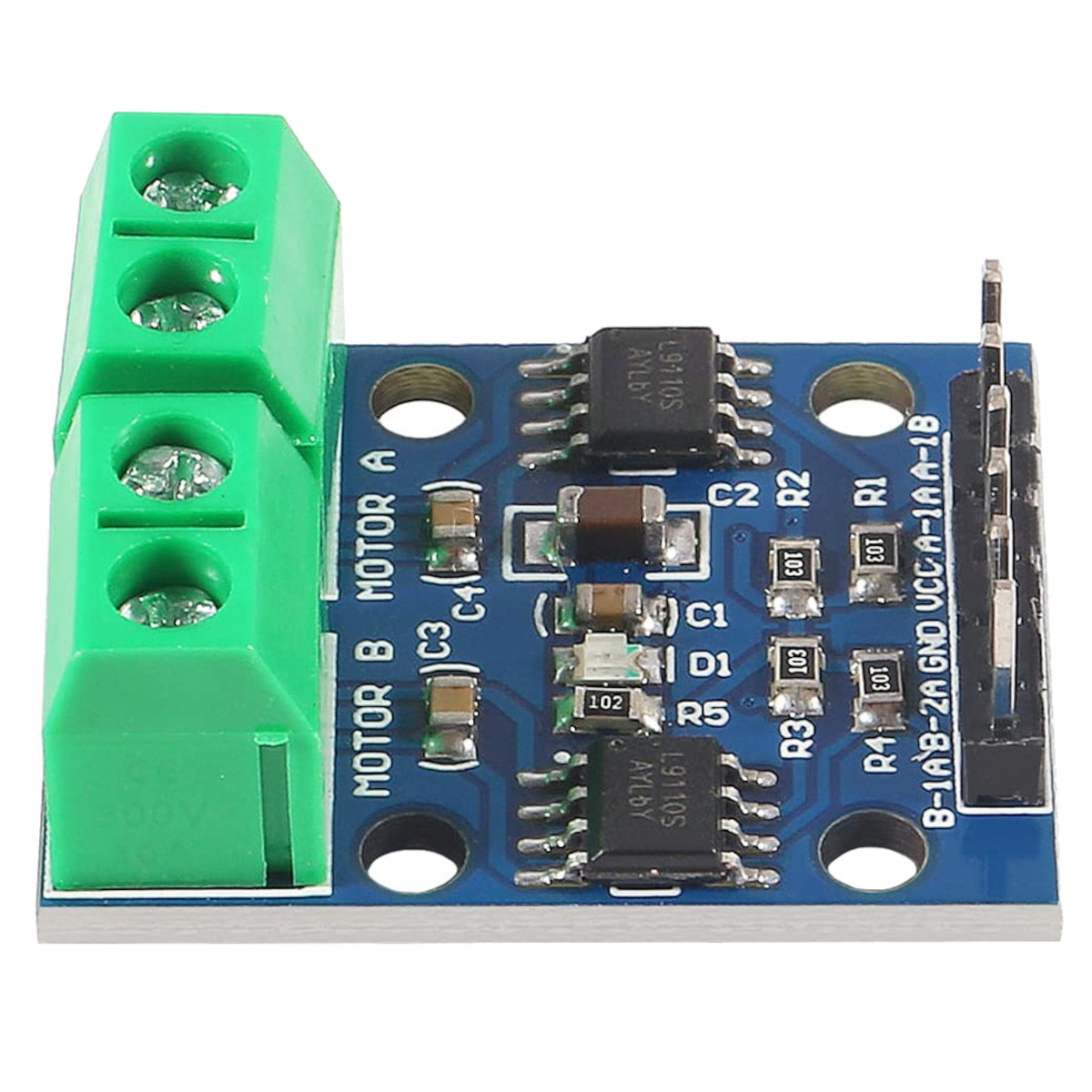

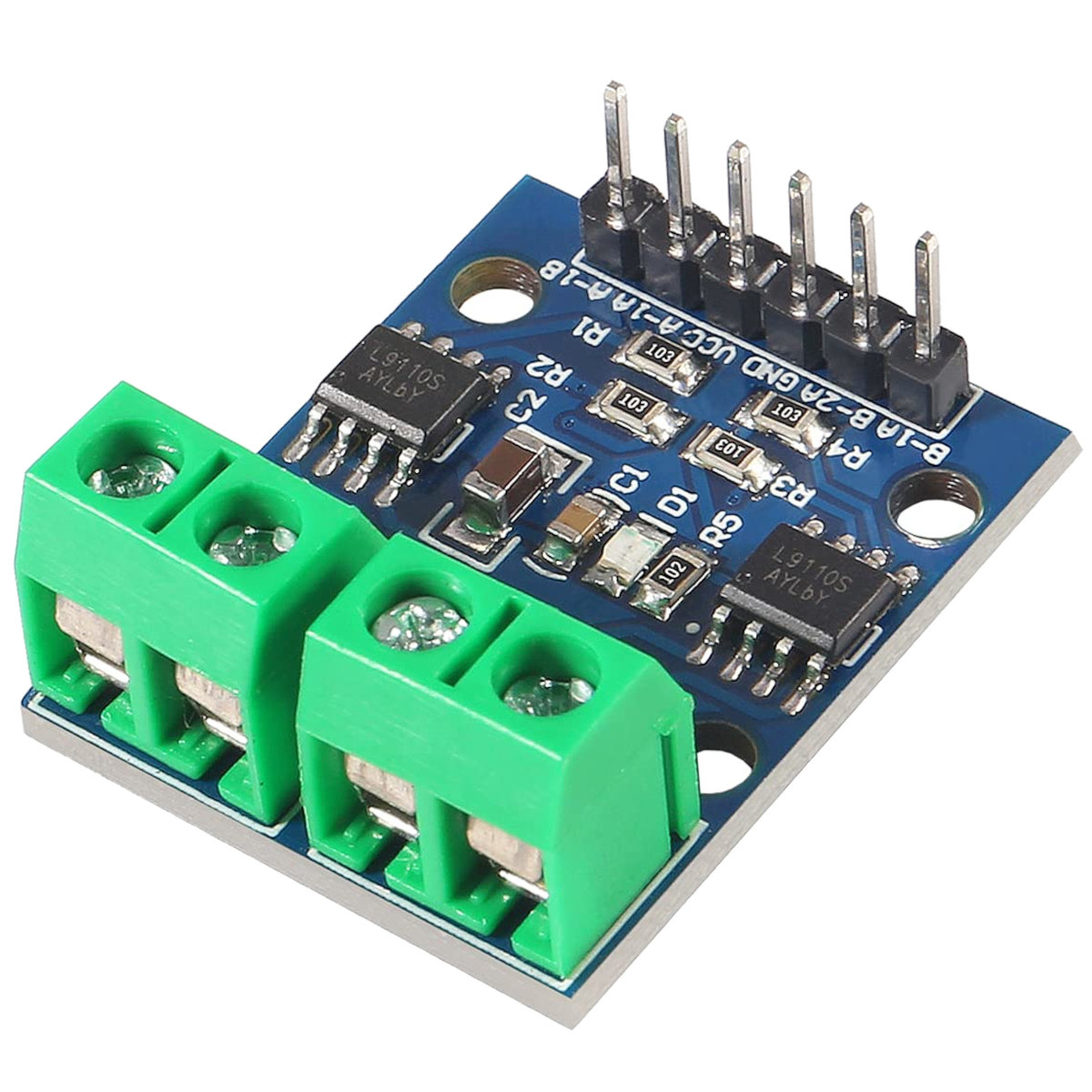

L9110 Dual Channel H-Bridge Motor Driver Module (DC Motor & Stepper Motor Driver Board)

The L9110 Dual Channel H-Bridge Motor Driver Module is a compact motor control board designed to drive two DC motors or one 4-wire bipolar stepper motor. Based on the L9110 dual H-bridge driver IC, it provides bidirectional motor control using simple TTL logic inputs from microcontrollers such as Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with appropriate interfacing), and other embedded platforms. The module is suitable for robotics, smart cars, automation systems, DIY electronics, and educational projects requiring efficient low-voltage motor control.

Key Features -

• Based on L9110 dual H-bridge driver IC

• Controls two DC motors independently

• Supports one 4-wire bipolar stepper motor

• Bidirectional motor rotation control

• TTL logic compatible inputs

• Compatible with 3.3V and 5V logic

• Compact PCB module

• Simple interface with microcontrollers

• Low power motor driving solution

• Ideal for robotics and automation projects

Specifications -

• Product type - H-Bridge Motor Driver Module

• Driver IC - L9110

• Motor supply voltage - 5V to 12V DC

• Logic voltage - 3.3V / 5V Compatible

• Output channels - 2

• Continuous output current - Up to 800mA per Channel

• Motor support - 2 DC Motors or 1 Bipolar Stepper Motor

• Control method - Digital Logic Inputs

• Mounting type - PCB Module

• Operating temperature - 0C to 70C

Applications -

• Robotics

• Smart car projects

• DC motor control

• Stepper motor control

• Automation systems

• Educational electronics

• DIY electronics

• Embedded system development
