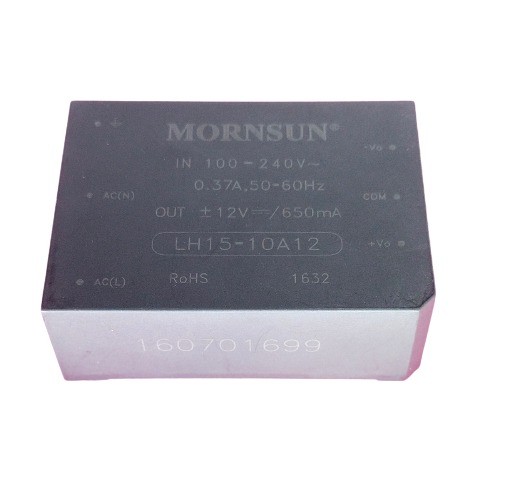

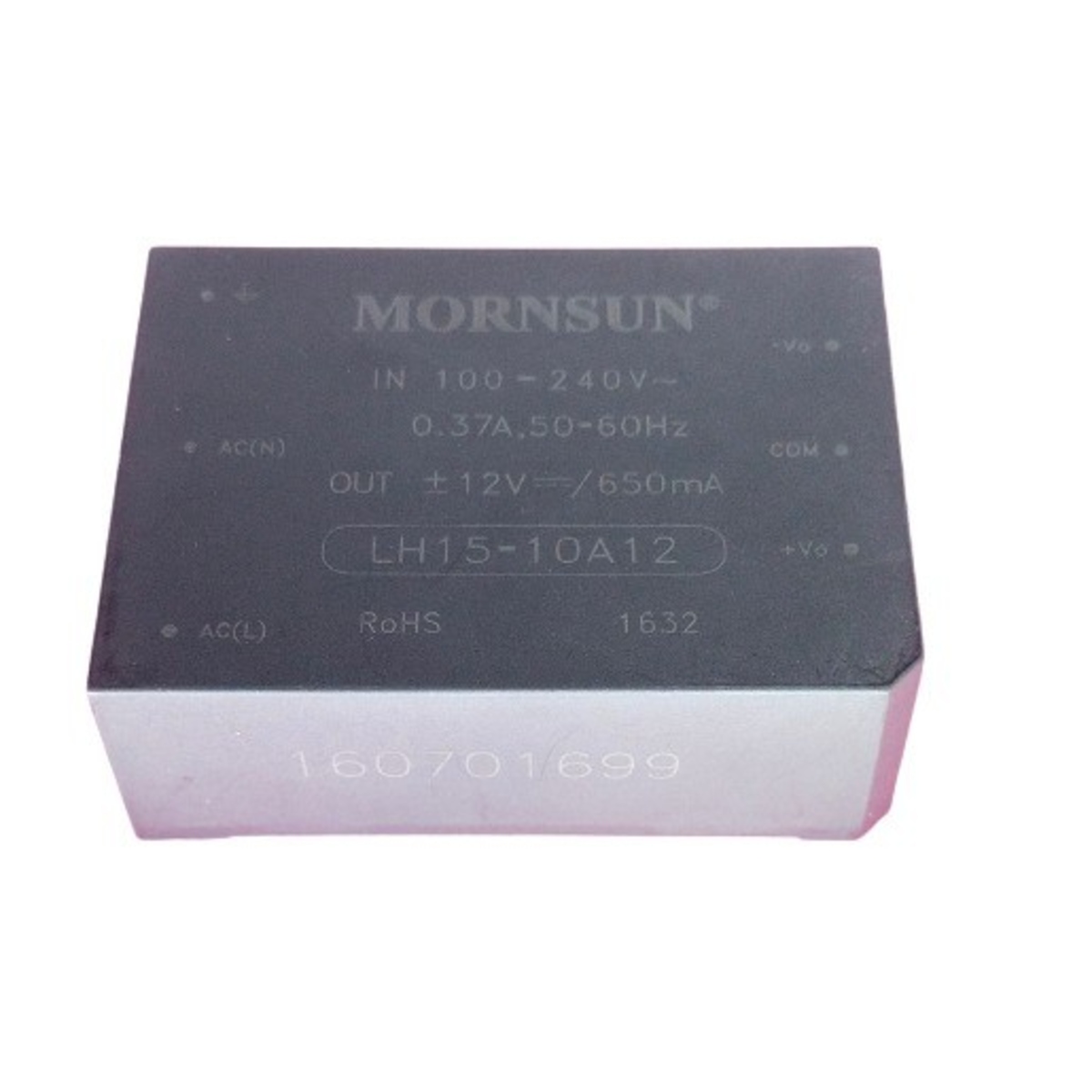

LH15-10A12 100-240VAC to ±12V 650mA Dual Output 15W AC-DC Converter Module (Mornsun LH15-10A12)

The LH15-10A12 is a high-reliability isolated AC-DC converter module from Mornsun designed to convert 100VAC to 240VAC mains power into dual regulated +12V DC and -12V DC outputs. With a 15W power rating and up to 650mA output current, it is ideal for industrial automation, instrumentation equipment, communication systems, audio circuits, operational amplifier applications, and embedded electronic systems requiring bipolar power supplies.

Key Features -

• Wide 100VAC to 240VAC input range

• Dual regulated +12V and -12V outputs

• 15W total output power

• Up to 650mA output current

• Isolated AC-DC power conversion

• High reliability industrial-grade design

• Low ripple and noise output

• Compact enclosed module package

• Continuous operation capability

• Easy PCB mounting and integration

Specifications -

• Product type - Dual Output AC-DC Converter Module

• Model - LH15-10A12

• Manufacturer - Mornsun

• Input voltage range - 100VAC to 240VAC

• Input frequency - 47Hz to 63Hz

• Positive output voltage - +12V DC

• Negative output voltage - -12V DC

• Output current - 650mA Maximum

• Total output power - 15W

• Isolation type - Galvanic Isolation

• Regulation type - Regulated Output

• Mounting type - PCB Mount

• Operating temperature - Industrial Grade

Applications -

• Industrial automation systems

• Instrumentation equipment

• Audio amplifiers

• Operational amplifier circuits

• Analog signal processing

• Communication equipment

• Data acquisition systems

• Medical and laboratory electronics
