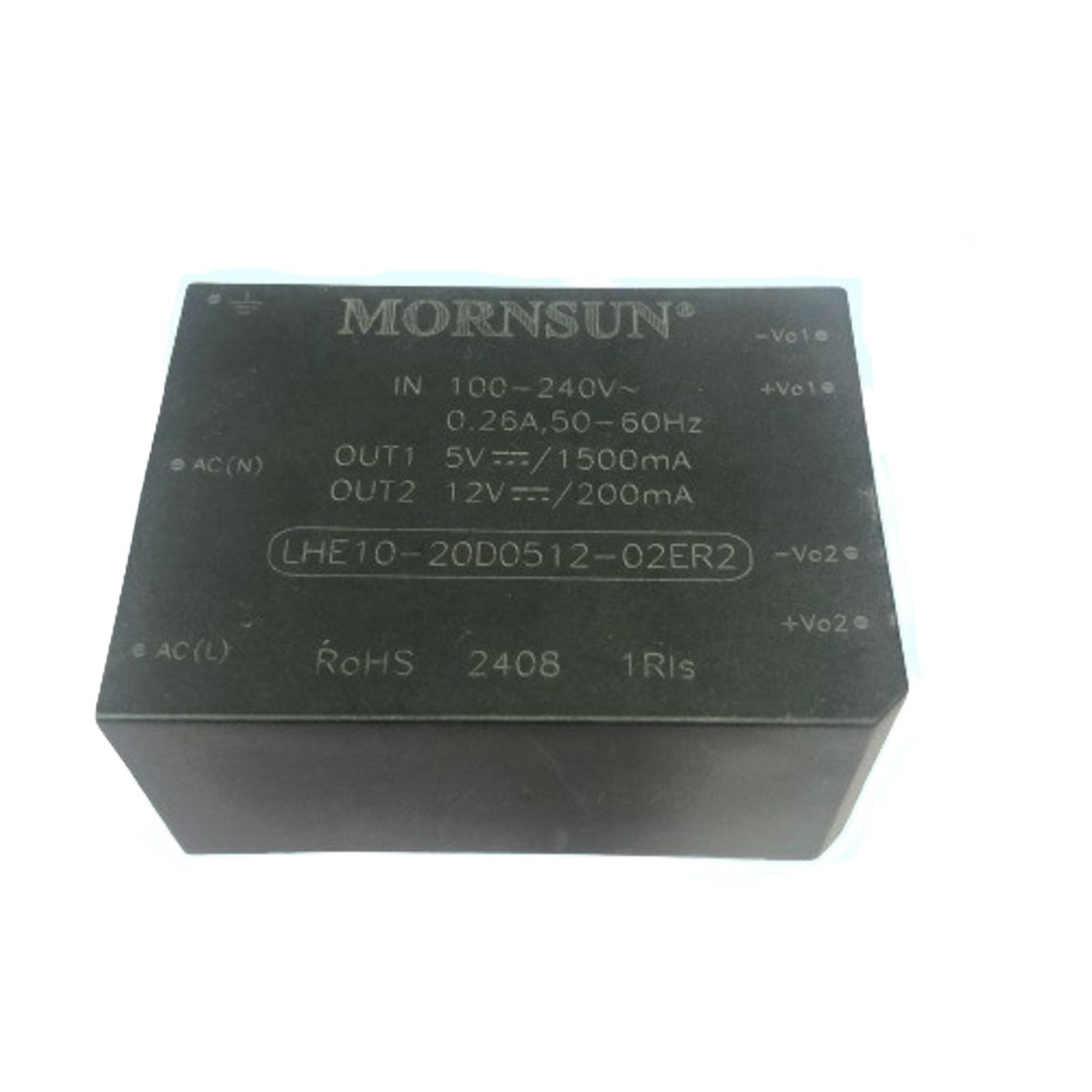

LHE10-20D0512-02ER2 100-240VAC to 5V 1500mA and ±12V 200mA Triple Output 10W AC-DC Converter Module (Mornsun LHE10-20D0512-02ER2)

The LHE10-20D0512-02ER2 is a high-performance isolated AC-DC converter module from Mornsun designed to convert 100VAC to 240VAC mains power into three regulated DC outputs: 5V DC at 1500mA and +12V DC / -12V DC at 200mA each. With a total output power of 10W, industrial-grade reliability, and compact enclosed construction, it is ideal for automation equipment, instrumentation systems, communication devices, and analog circuits requiring multiple power rails.

Key Features -

• Wide 100VAC to 240VAC input range

• Triple regulated DC outputs

• 5V DC output at 1500mA

• +12V DC output at 200mA

• -12V DC output at 200mA

• 10W total output power

• Isolated AC-DC power conversion

• Compact enclosed module design

• High reliability industrial performance

• Low ripple and noise output

Specifications -

• Product type - Triple Output AC-DC Converter Module

• Model - LHE10-20D0512-02ER2

• Manufacturer - Mornsun

• Input voltage range - 100VAC to 240VAC

• Input frequency - 47Hz to 63Hz

• Main output voltage - 5V DC

• Main output current - 1500mA

• Positive auxiliary output - +12V DC

• Positive auxiliary current - 200mA

• Negative auxiliary output - -12V DC

• Negative auxiliary current - 200mA

• Total output power - 10W

• Isolation type - Galvanic Isolation

• Regulation type - Regulated Output

• Mounting type - PCB Mount

Applications -

• Industrial automation systems

• Instrumentation equipment

• Operational amplifier circuits

• Analog signal processing systems

• Communication devices

• Data acquisition equipment

• Embedded controllers

• Medical and laboratory electronics
