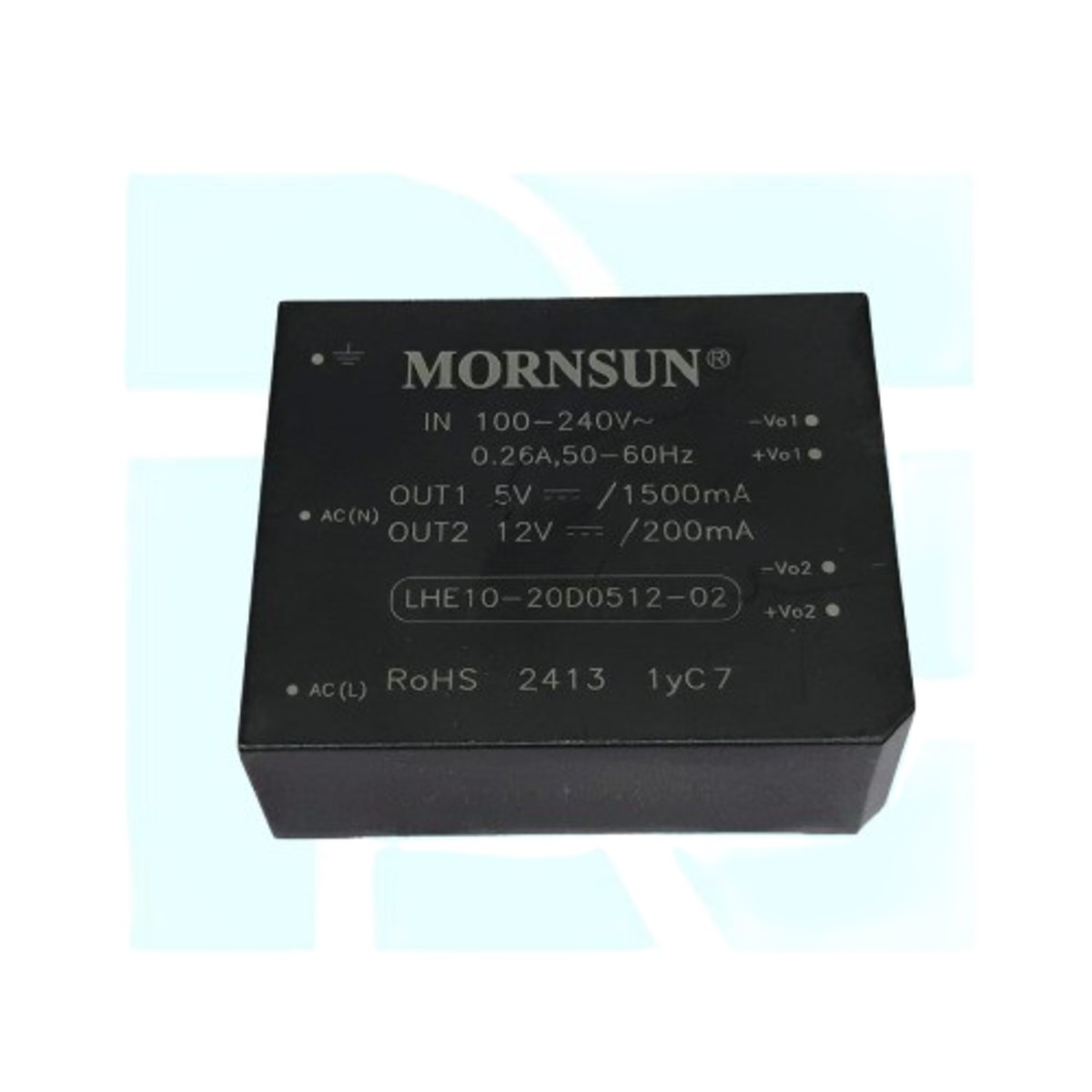

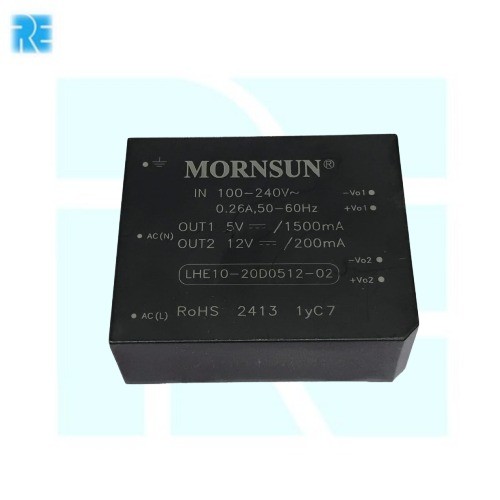

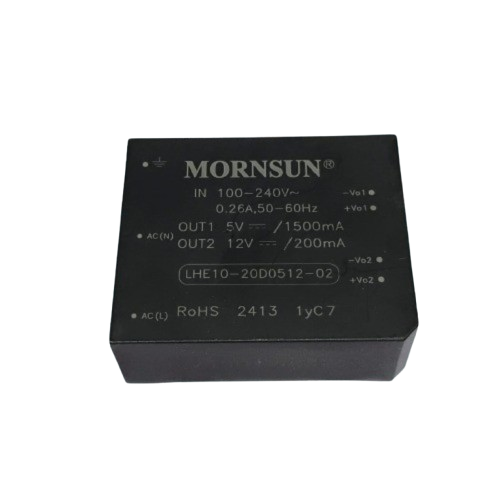

LHE10-20D0512-02 100-240VAC to 5V 1500mA and 12V 200mA Dual Output 10W AC-DC Converter Module (Mornsun LHE10-20D0512-02)

The LHE10-20D0512-02 is a high-performance isolated AC-DC converter module from Mornsun designed to convert 100VAC to 240VAC mains power into two regulated DC outputs: 5V DC at 1500mA and 12V DC at 200mA. With a total output power of 10W, compact enclosed design, and industrial-grade reliability, it is ideal for automation systems, instrumentation equipment, communication devices, and embedded applications requiring multiple power rails.

Key Features -

• Wide 100VAC to 240VAC input range

• Dual regulated DC outputs

• 5V DC output at 1500mA

• 12V DC output at 200mA

• 10W total output power

• Isolated AC-DC power conversion

• Compact enclosed module design

• High reliability industrial performance

• Low ripple and noise output

• Suitable for analog and digital circuits

Specifications -

• Product type - Dual Output AC-DC Converter Module

• Model - LHE10-20D0512-02

• Manufacturer - Mornsun

• Input voltage range - 100VAC to 240VAC

• Input frequency - 47Hz to 63Hz

• Main output voltage - 5V DC

• Main output current - 1500mA

• Auxiliary output voltage - 12V DC

• Auxiliary output current - 200mA

• Total output power - 10W

• Isolation type - Galvanic Isolation

• Regulation type - Regulated Output

• Mounting type - PCB Mount

• Operating temperature - Industrial Grade

Applications -

• Industrial automation systems

• Instrumentation equipment

• Communication devices

• Embedded controllers

• Data acquisition systems

• Sensor interface circuits

• Industrial monitoring equipment

• Mixed-signal electronic systems
