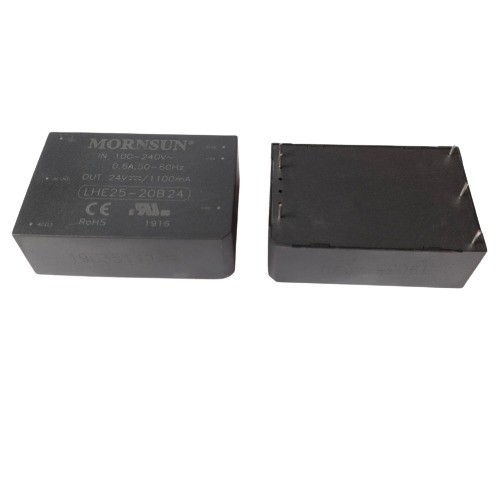

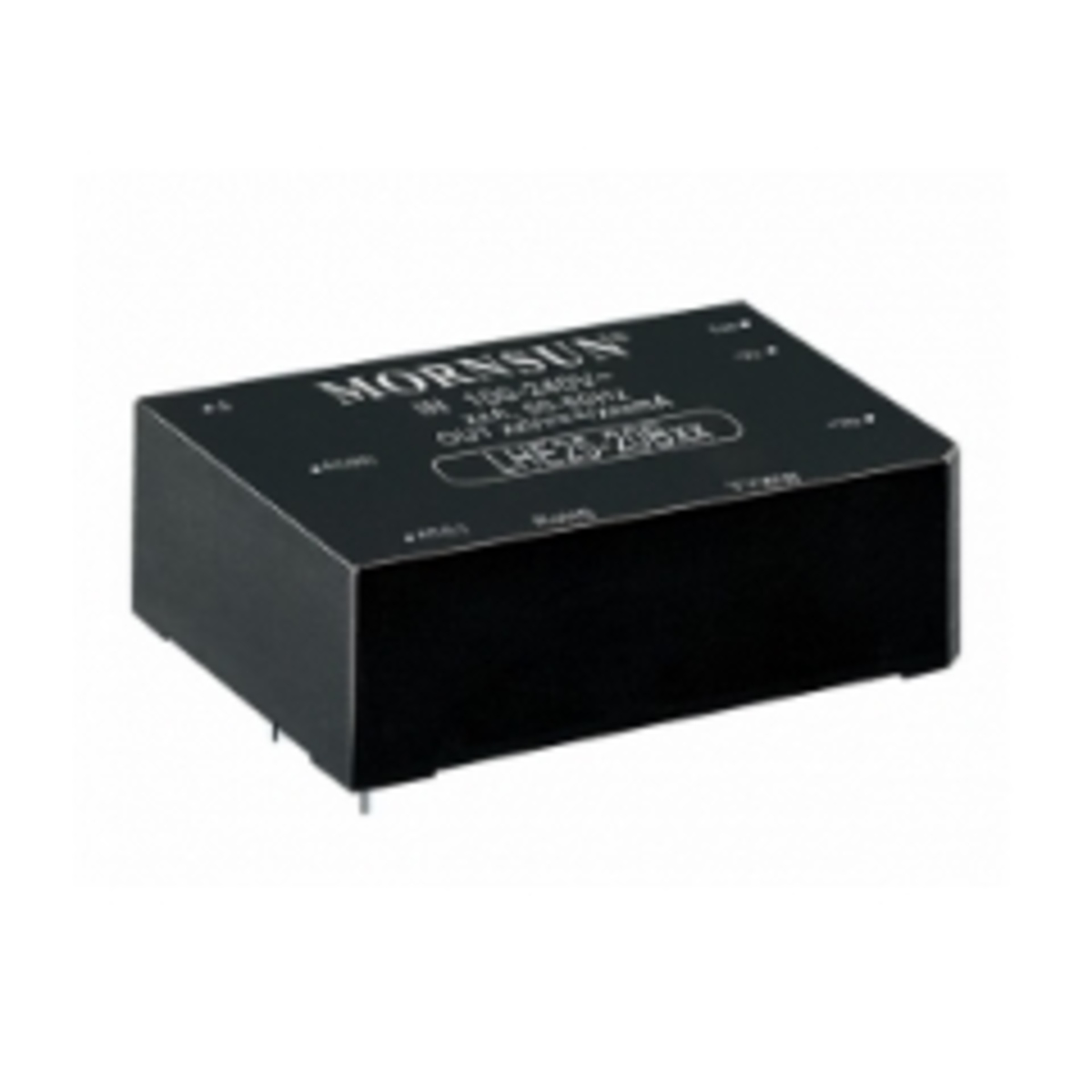

LHE25-20B24 85VAC-264VAC to 24V 1.1A 25W Isolated AC-DC Converter Module (Mornsun LHE25-20B24)

The LHE25-20B24 is a high-performance isolated AC-DC converter module from Mornsun designed to convert AC mains voltage into a regulated 24V DC output. With a 25W power rating and up to 1.1A output current, this compact enclosed power module is ideal for industrial automation, control systems, communication equipment, instrumentation, and embedded applications requiring reliable isolated power.

Key Features -

• Wide 85VAC to 264VAC input range

• Regulated 24V DC output

• 1.1A output current capability

• 25W output power rating

• Isolated AC-DC power conversion

• Compact enclosed module design

• High efficiency operation

• Low ripple and noise output

• Industrial-grade reliability

• Built-in protection functions

Specifications -

• Product type - Isolated AC-DC Converter Module

• Model - LHE25-20B24

• Manufacturer - Mornsun

• Input voltage range - 85VAC to 264VAC

• Input frequency - 47Hz to 63Hz

• Output voltage - 24V DC

• Output current - 1.1A Maximum

• Output power - 25W

• Isolation type - Galvanic Isolation

• Isolation voltage - 3000VAC

• Regulation type - Regulated Output

• Mounting type - PCB Mount

• Operating temperature - Industrial Grade

Applications -

• Industrial automation systems

• PLC control equipment

• Process control systems

• Communication devices

• Instrumentation equipment

• Security and monitoring systems

• Embedded controllers

• Industrial sensors and actuators
