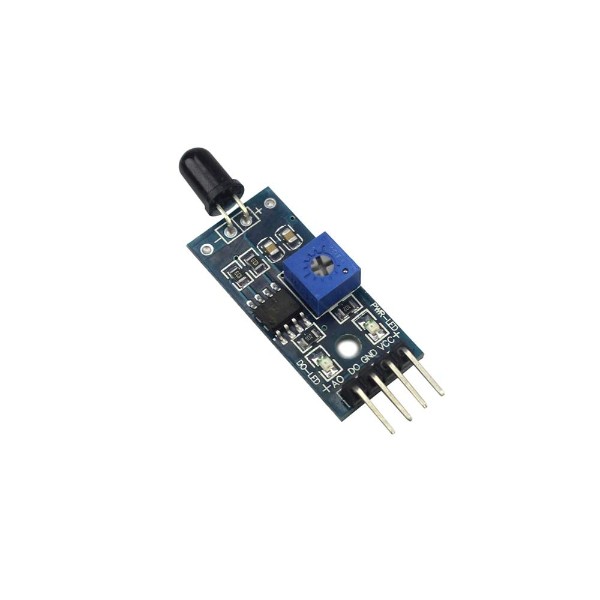

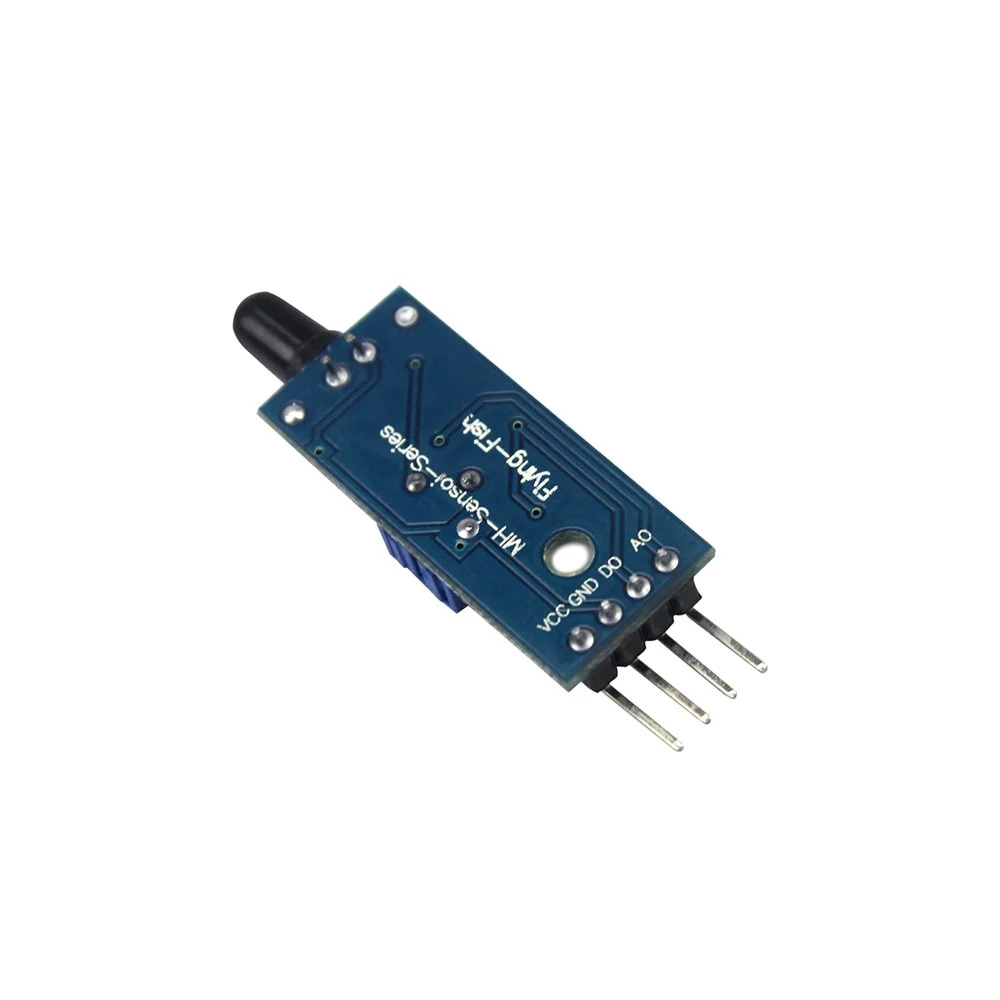

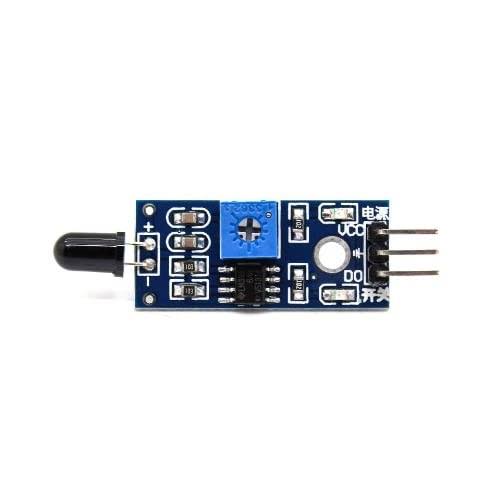

LM393 3-Pin IR Infrared Flame Detection Sensor Module 760-1100nm (Digital Flame Sensor Module)

The LM393 3-Pin IR Infrared Flame Detection Sensor Module is a compact flame sensing module designed to detect infrared radiation emitted by flames in the 760nm to 1100nm wavelength range. It incorporates an infrared-sensitive photodiode and an LM393 voltage comparator to provide a digital output when a flame is detected. The onboard potentiometer allows sensitivity adjustment, making the module suitable for Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other embedded platforms. It is ideal for fire detection systems, flame alarms, robotics, industrial safety monitoring, and educational electronics projects.

Key Features -

• Detects infrared flame radiation from 760nm to 1100nm

• Based on LM393 comparator IC

• Digital output signal

• Adjustable detection sensitivity

• Fast response time

• Compact 3-pin module design

• Low power consumption

• Stable and reliable operation

• Easy interface with microcontrollers

• Suitable for fire detection and safety applications

Specifications -

• Product type - IR Flame Detection Sensor Module

• Comparator IC - LM393

• Operating voltage - 3.3V to 5V DC

• Detection wavelength - 760nm to 1100nm

• Output type - Digital

• Detection angle - Approximately 60 Degree

• Sensitivity adjustment - Onboard Potentiometer

• Sensing element - Infrared Photodiode

• Mounting type - PCB Module

• Operating temperature - 0C to 70C

Applications -

• Fire detection systems

• Flame alarm systems

• Industrial safety monitoring

• Robotics

• Embedded systems

• Smart home safety devices

• Educational electronics

• DIY electronics projects
