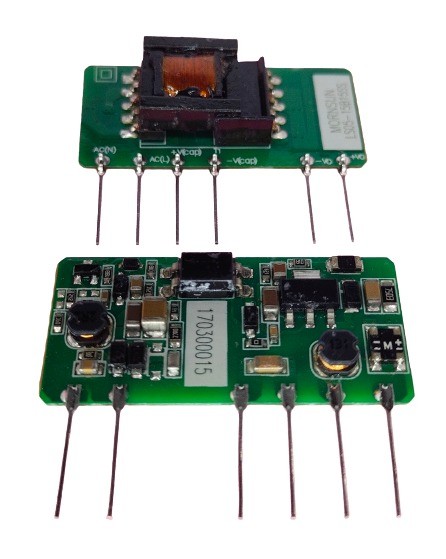

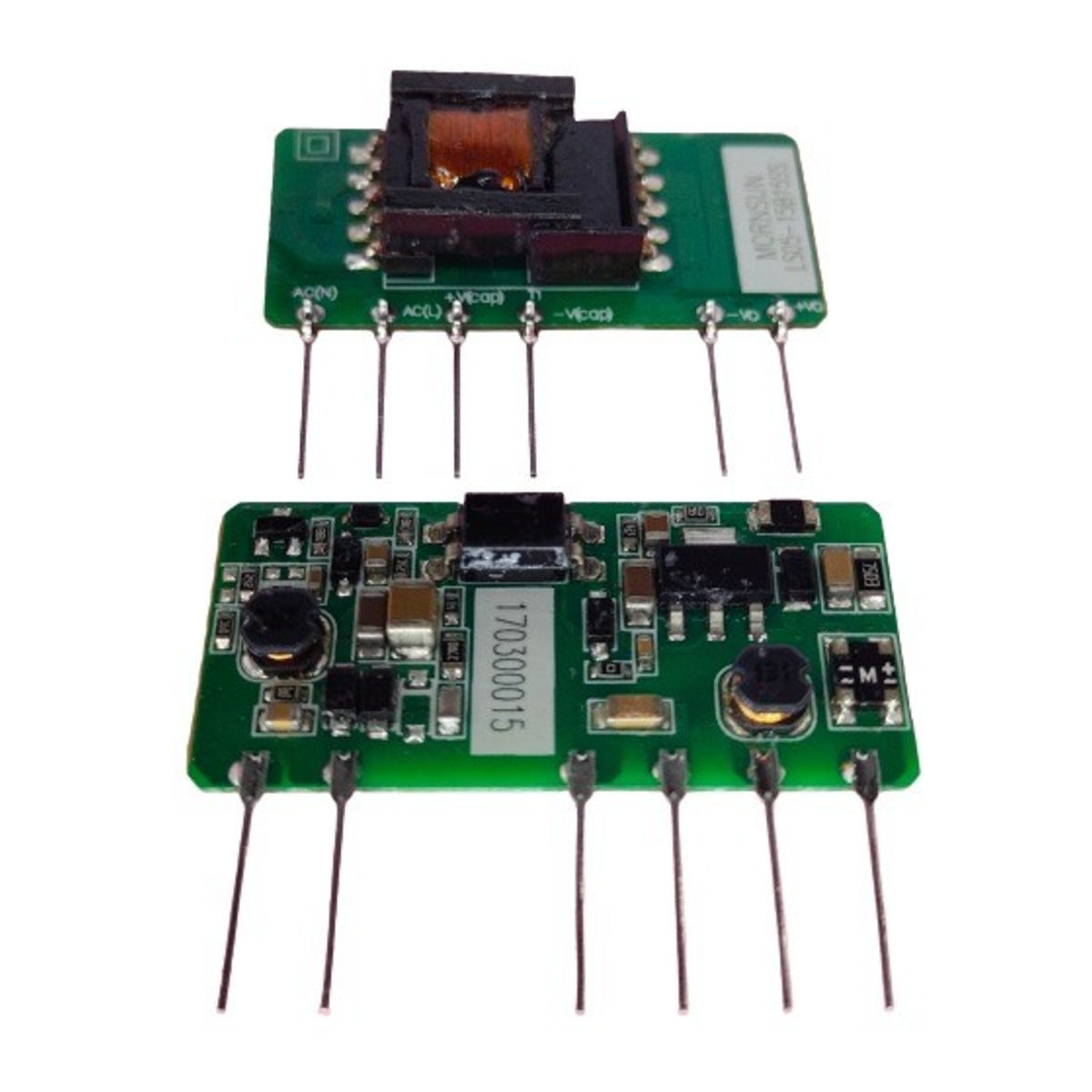

LS05-15B15SS 85VAC-305VAC to 15V 333mA 5W Isolated AC-DC Converter Module (Mornsun LS05-15B15SS)

The LS05-15B15SS is a compact isolated AC-DC converter module from Mornsun designed to convert AC mains voltage directly into a regulated 15V DC output. With a 5W power rating, wide input voltage range, high isolation voltage, and compact enclosed design, it is ideal for industrial automation, smart home devices, instrumentation systems, IoT equipment, and embedded power applications.

Key Features -

• Wide 85VAC to 305VAC input range

• Regulated 15V DC output

• 5W output power rating

• Up to 333mA output current

• Isolated AC-DC power conversion

• Compact enclosed module design

• Low standby power consumption

• High reliability industrial design

• Short circuit and overcurrent protection

• Suitable for worldwide AC mains operation

Specifications -

• Product type - Isolated AC-DC Converter Module

• Model - LS05-15B15SS

• Manufacturer - Mornsun

• Input voltage range - 85VAC to 305VAC

• Input frequency - 47Hz to 63Hz

• Output voltage - 15V DC

• Output current - 333mA Maximum

• Output power - 5W

• Isolation voltage - 3000VAC

• Efficiency - High Efficiency Design

• Regulation type - Regulated Output

• Mounting type - PCB Mount

• Operating temperature - -40C to +85C

Applications -

• Industrial automation systems

• Smart home devices

• IoT equipment

• Communication devices

• Instrumentation equipment

• Embedded controllers

• Security and monitoring systems

• Low-power AC mains powered products
