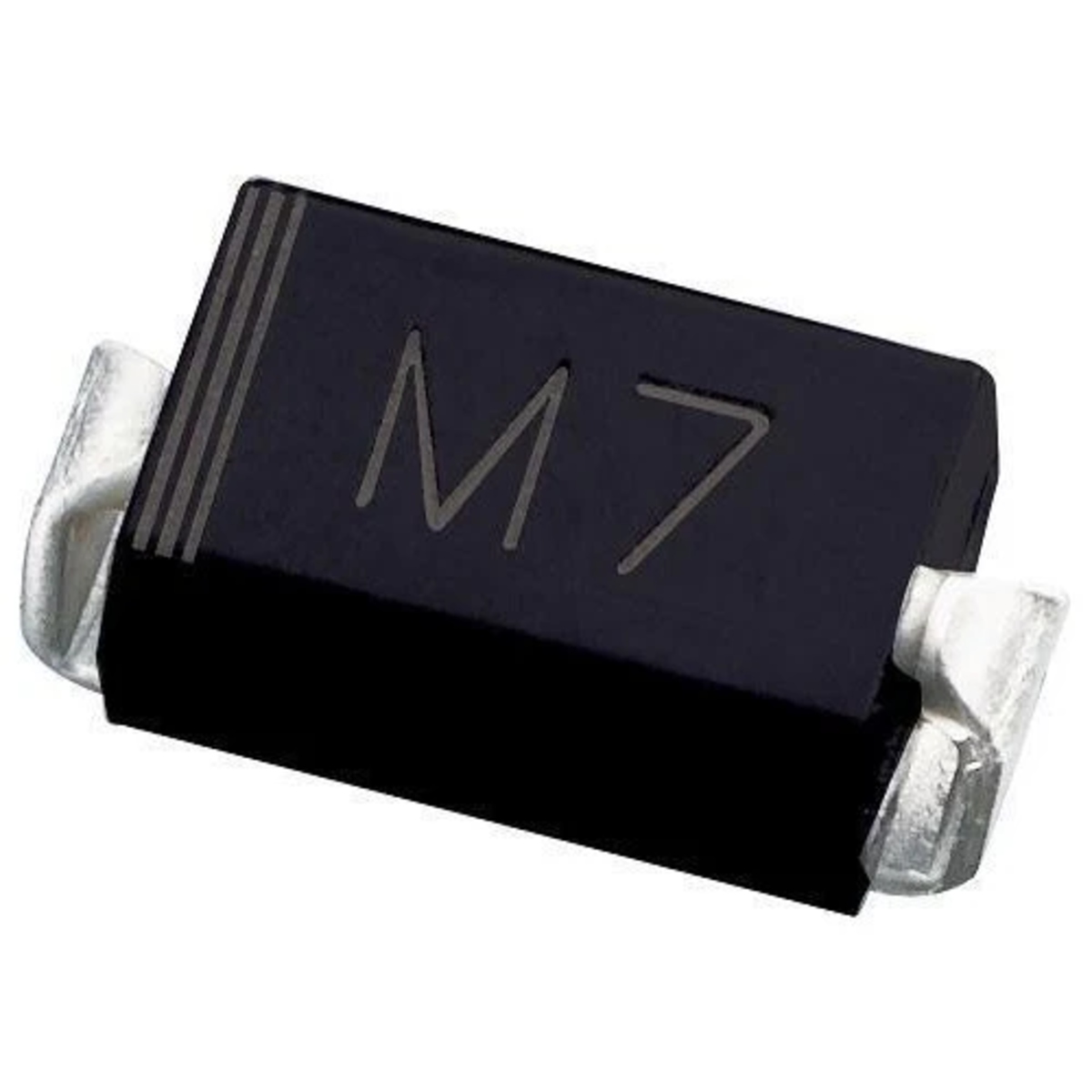

M7 Diode 1N4007 SMD SMA DO-214AC General Purpose Rectifier Diode (M7 SMD Diode)

The M7 Diode (1N4007 Equivalent) is a surface mount general-purpose rectifier diode designed for AC to DC rectification, reverse polarity protection, freewheeling circuits, and power supply applications. It offers a 1A average forward current, 1000V peak reverse voltage, and reliable performance in a compact SMA (DO-214AC) package, making it suitable for consumer electronics, industrial equipment, and power management circuits.

The M7 diode is the SMD equivalent of the popular 1N4007 through-hole rectifier diode and is widely used in switching and linear power supply designs.

Key Features -

• General-purpose rectifier diode

• 1N4007 equivalent SMD diode

• 1A average forward current

• 1000V peak reverse voltage

• High surge current capability

• Low leakage current

• Compact SMA (DO-214AC) package

• Reliable rectification performance

Specifications -

• Product Type: General Purpose Rectifier Diode

• Part Number: M7

• Equivalent: 1N4007

• Diode Type: Silicon Rectifier Diode

• Package Type: SMA (DO-214AC)

• Average Forward Current (IF): 1A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Forward Voltage (VF): Approximately 1.1V (Typical)

• Peak Forward Surge Current (IFSM): 30A (Typical)

• Mounting Type: Surface Mount (SMD)

• Additional Features: High surge capability, low leakage current, durable construction

Applications -

• AC to DC rectification

• Power supply circuits

• Reverse polarity protection

• Battery charging circuits

• Freewheeling diode applications

• Industrial control equipment

• Consumer electronics

• General-purpose electronic projects
