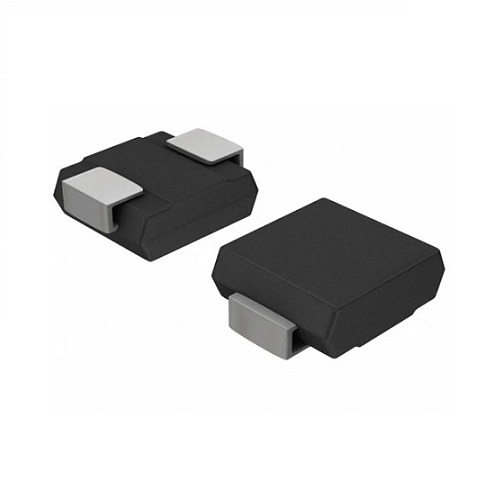

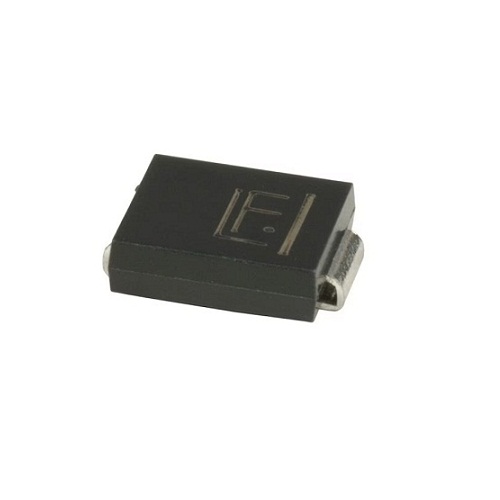

MBRS340-T3G Schottky Rectifier Diode – 40V, 3A, SMC (DO-214AB) SMD

The MBRS340-T3G is a 3A surface-mount Schottky rectifier diode designed for high-efficiency power conversion and fast switching applications. With a 40V repetitive peak reverse voltage, low forward voltage drop of 525mV (max), and DO-214AB (SMC) package, it minimizes power loss while delivering excellent thermal performance. It is ideal for switch-mode power supplies (SMPS), DC-DC converters, freewheeling diodes, reverse polarity protection, and battery-powered devices.

Key Features -

• Schottky barrier rectifier with low forward voltage drop

• Repetitive peak reverse voltage of 40V

• Average forward current of 3A

• Low forward voltage of 525mV (max) for improved efficiency

• High forward surge current capability up to 158A

• Fast switching with negligible reverse recovery time

• Surface-mount DO-214AB (SMC) package

• Maximum junction operating temperature of 150°C

Specifications -

• Product Type - Schottky Rectifier Diode

• Part Number - MBRS340-T3G

• Diode Configuration - Single

• Repetitive Peak Reverse Voltage (VRRM) - 40V

• Average Forward Current (IF(AV)) - 3A

• Forward Voltage (VF Max) - 525mV

• Forward Surge Current (IFSM) - 158A

• Package - DO-214AB (SMC)

• Mounting Type - Surface Mount (SMD)

• Number of Pins - 2

• Maximum Operating Temperature - 150°C

Applications -

• Switch Mode Power Supplies (SMPS)

• DC-DC converters

• Reverse polarity protection circuits

• Freewheeling and flyback diode applications

• Battery chargers

• Power management circuits

• Automotive electronics

• Industrial control systems

• Portable electronic devices
