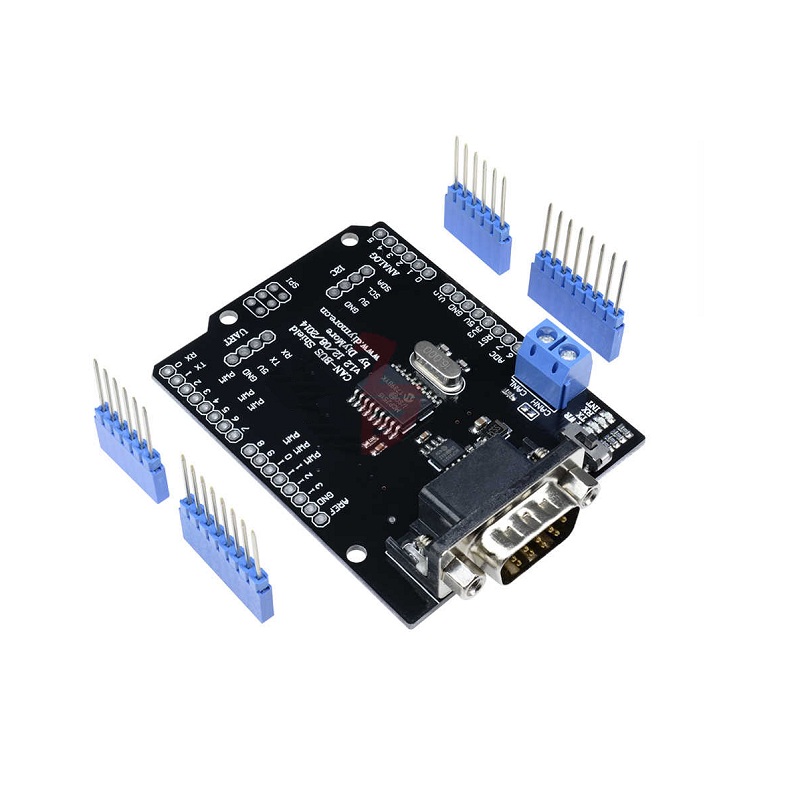

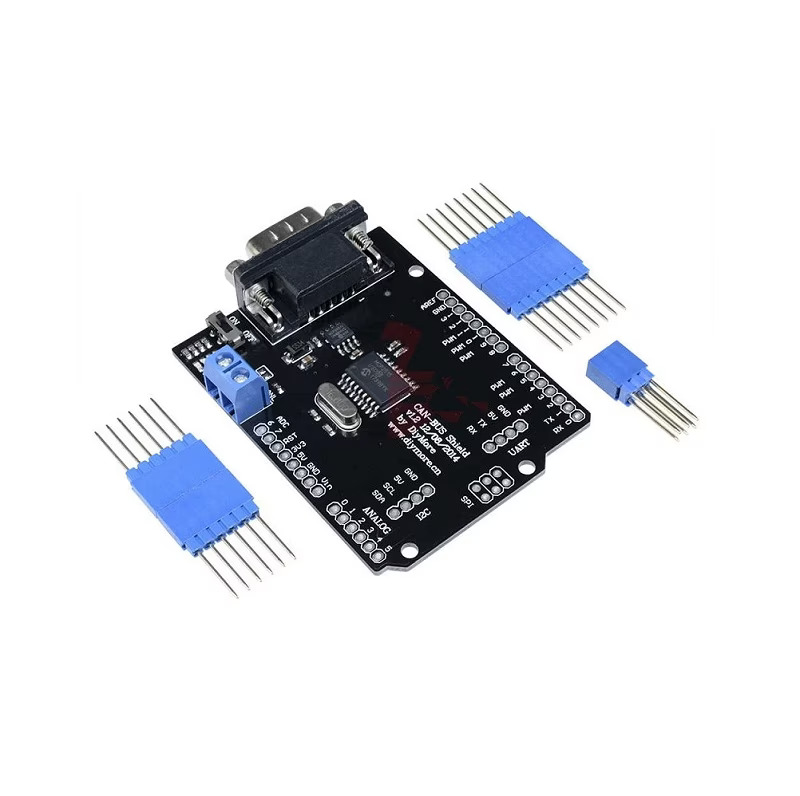

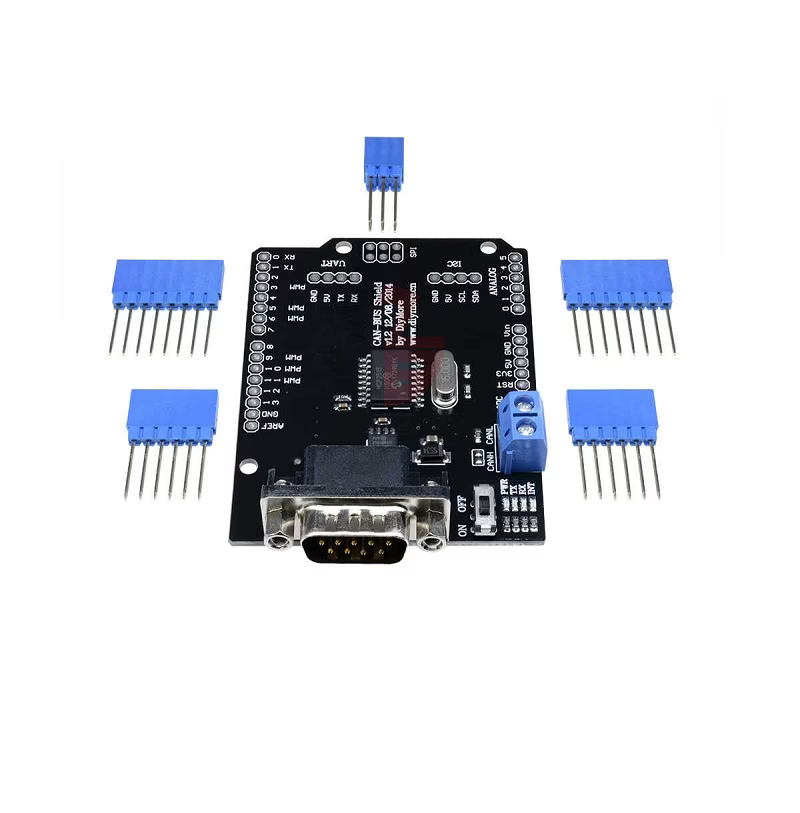

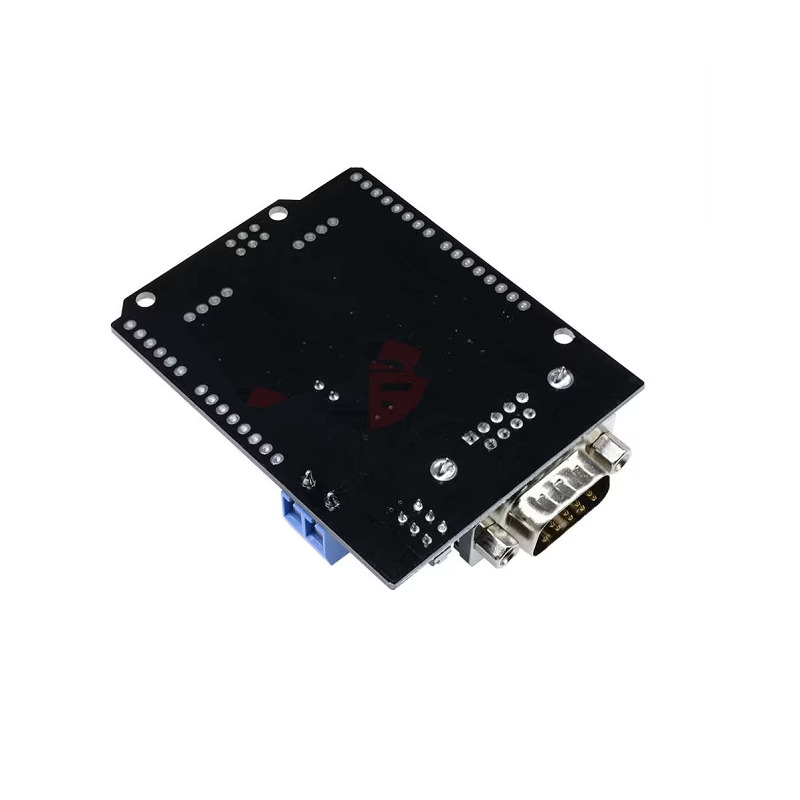

MCP2515 CAN Bus Shield Board SPI Interface with 9-Pin D-Sub Connector (CAN V2.0B Expansion Module)

The MCP2515 CAN Bus Shield Board is a Controller Area Network (CAN) communication module designed to add CAN bus capability to Arduino and other microcontroller platforms. Based on the MCP2515 stand-alone CAN controller and an onboard CAN transceiver, the module communicates with the host controller through an SPI interface and supports the CAN V2.0B protocol at data rates up to 1Mbps. Equipped with a standard 9-pin D-Sub connector, it is ideal for automotive diagnostics, industrial automation, robotics, machine control, and distributed embedded systems.

Key Features -

• Based on MCP2515 CAN controller IC

• Onboard CAN bus transceiver

• SPI communication interface

• Supports CAN V2.0B protocol

• Standard 9-pin D-Sub CAN connector

• Data rates up to 1Mbps

• Compatible with Arduino and other microcontrollers

• Stable and reliable CAN communication

• Compact expansion board design

• Suitable for industrial and automotive applications

Specifications -

• Product type - CAN Bus Shield Module

• Controller IC - MCP2515

• CAN transceiver - Onboard High-Speed CAN Transceiver

• Communication interface - SPI

• CAN protocol - CAN V2.0B

• Maximum data rate - Up to 1Mbps

• Operating voltage - 5V DC

• Connector type - 9-Pin D-Sub (DB9)

• Oscillator frequency - 8MHz or 16MHz (Model Dependent)

• Mounting type - Shield / PCB Module

• Operating temperature - 0C to 70C

Applications -

• Automotive diagnostics

• Vehicle communication systems

• Industrial automation

• Robotics

• Distributed control systems

• Machine monitoring

• CAN bus development

• Embedded electronics projects
