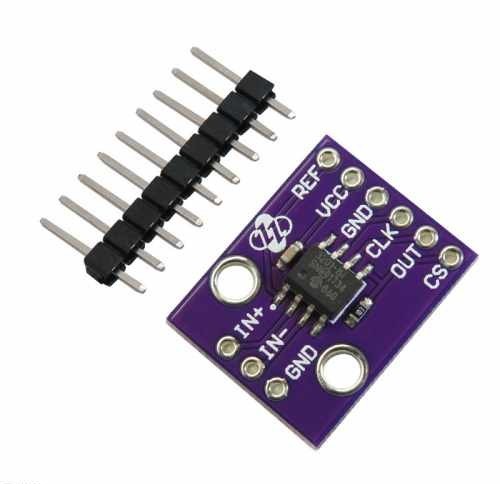

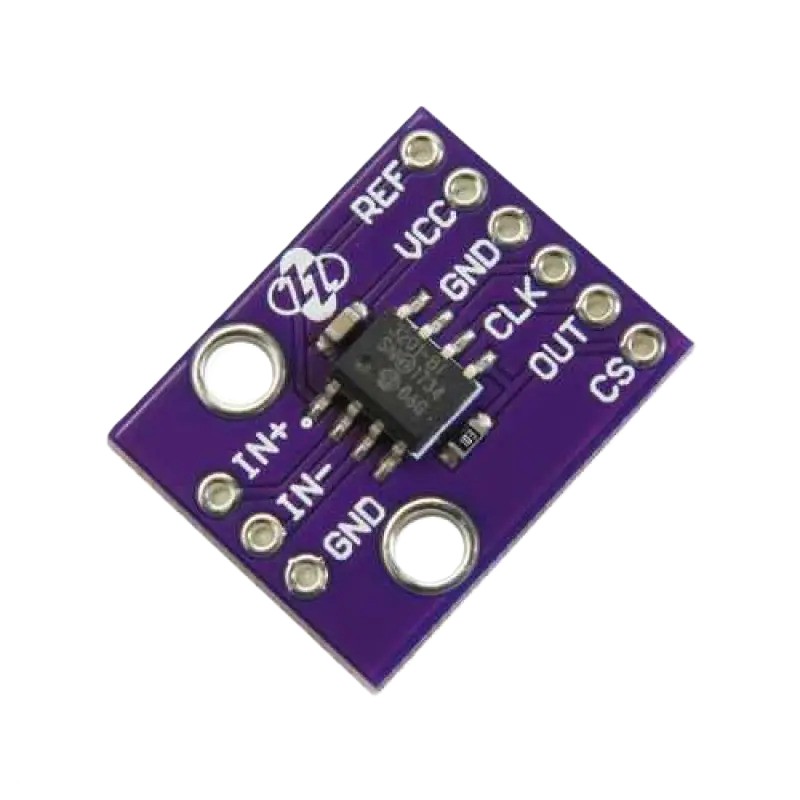

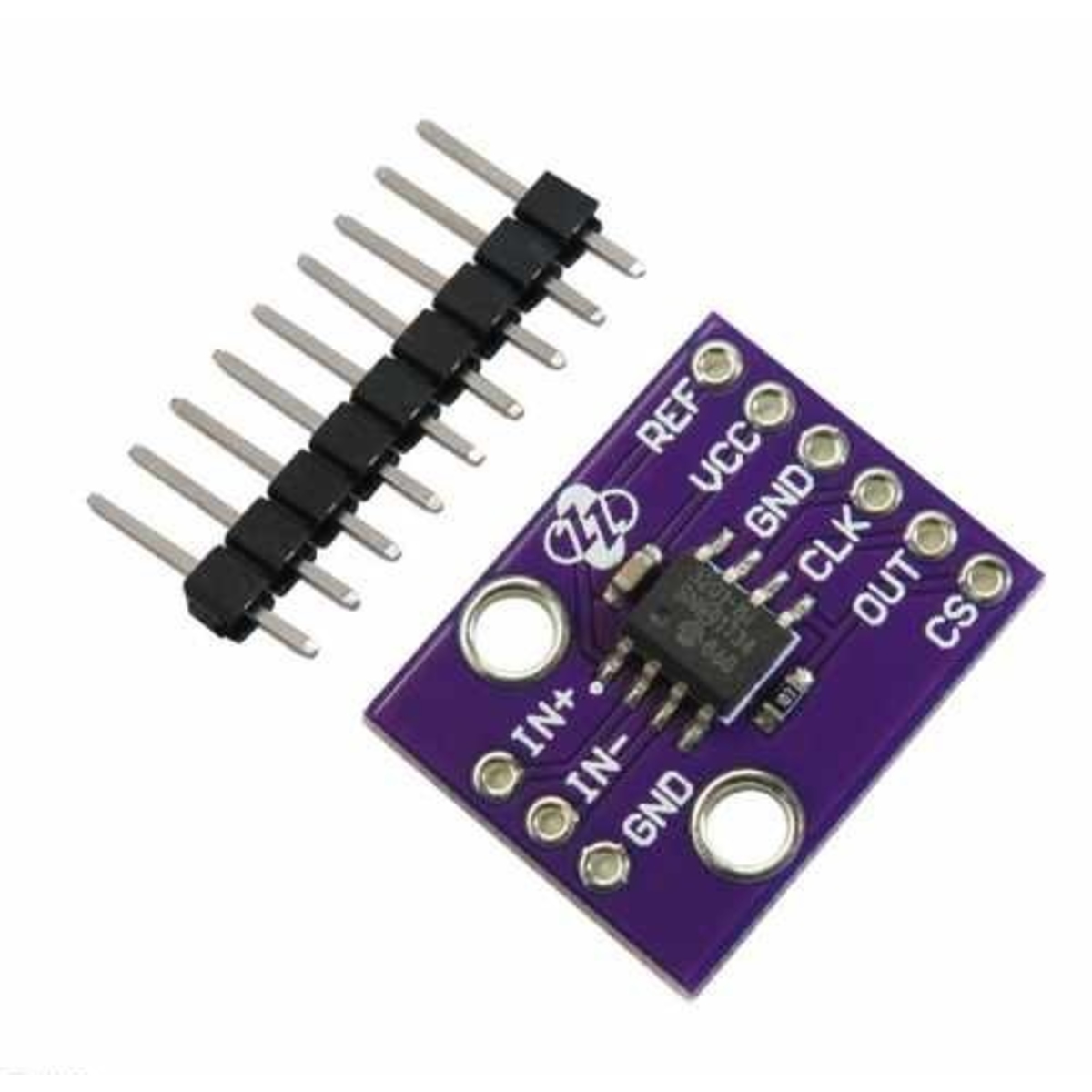

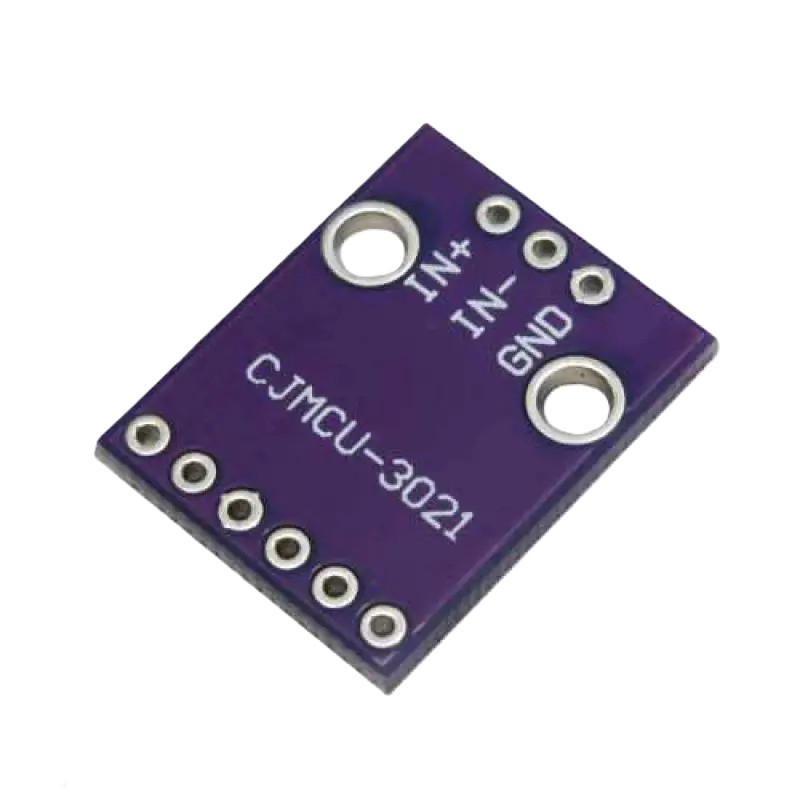

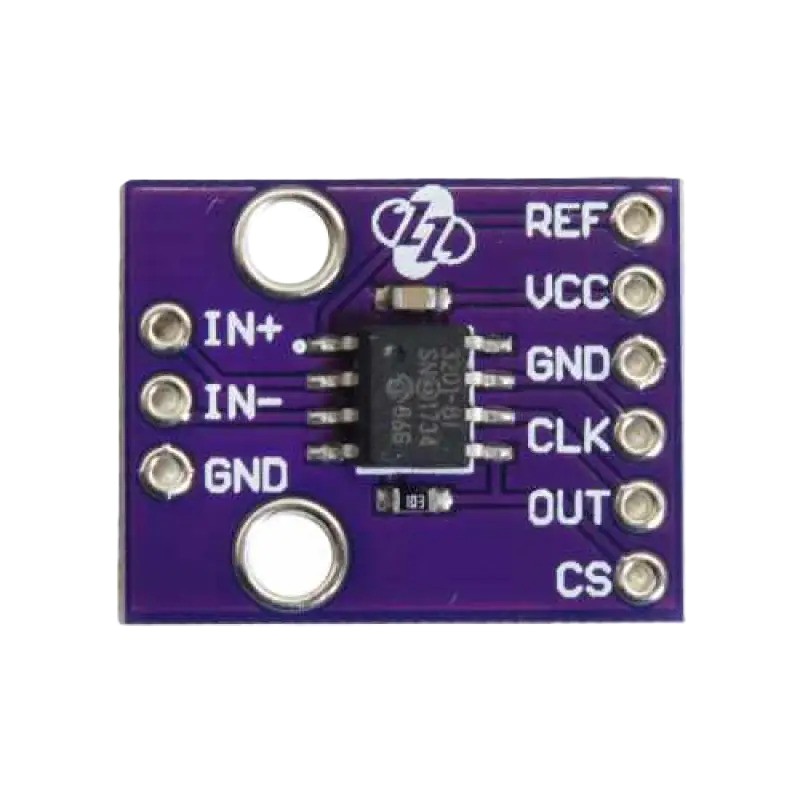

MCP3201 12-Bit ADC Module (SPI Analog to Digital Converter, Single Channel, 2.7V-5.5V)

The MCP3201 12-Bit ADC Module is a high-precision analog-to-digital converter designed for accurate measurement of analog signals in embedded systems and industrial applications. Based on the MCP3201 ADC IC, it converts a single-ended analog input into 12-bit digital data using the SPI communication interface. With support for sampling rates up to approximately 100KSPS and low power consumption, the module is ideal for sensor data acquisition, instrumentation, industrial automation, robotics, and precision measurement systems. It is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, PIC, and other SPI-enabled microcontroller platforms.

Key Features -

• Based on MCP3201 12-bit ADC IC

• 12-bit analog-to-digital conversion

• Single analog input channel

• High-speed SPI communication

• Sampling rate up to approximately 100KSPS

• Low power consumption

• High measurement accuracy

• Compact PCB module

• Easy microcontroller interfacing

• Suitable for industrial and embedded applications

Specifications -

• Product type - Analog to Digital Converter Module

• ADC model - MCP3201

• Resolution - 12-Bit

• Number of channels - 1

• Input type - Single-Ended Analog Input

• Communication interface - SPI

• Reference voltage - External Reference Required

• Operating voltage - 2.7V to 5.5V DC

• Maximum sampling rate - Up to 100KSPS

• Mounting type - PCB Module

• Operating temperature - Standard Ambient

Applications -

• Sensor data acquisition

• Industrial automation

• Instrumentation

• Precision measurement

• Robotics

• Embedded systems

• Data logging

• Educational electronics
