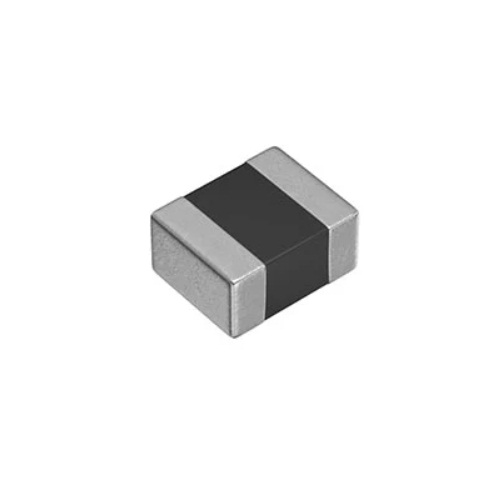

MLP2520M100MT0S1 Fixed Inductor 10uH 700mA 364mΩ TDK (2520 Surface Mount Power Inductor)

The MLP2520M100MT0S1 Fixed Inductor from TDK is a compact Surface Mount Device power inductor designed for power management, DC-DC converters, filtering, and noise suppression applications. With an inductance of 10uH, a current rating of up to 700mA, and low DC resistance, it delivers stable performance, high efficiency, and reliable operation in compact electronic circuits.

Key Features -

• Genuine TDK fixed power inductor

• 10uH inductance value

• 700mA maximum current rating

• Low DC resistance for improved efficiency

• Compact 2520 Surface Mount Device package

• High reliability and stable inductance

• Suitable for high-frequency switching circuits

• Excellent noise suppression characteristics

• Ideal for automated Printed Circuit Board assembly

• Designed for compact electronic devices

Specifications -

• Product Type - Fixed Power Inductor

• Model - MLP2520M100MT0S1

• Brand - TDK

• Inductance - 10uH ±20% at 2MHz

• Rated Current - 700mA

• DC Resistance (Typical) - 280mΩ

• DC Resistance (Maximum) - 364mΩ

• Package Size - 2520

• Mounting Type - Surface Mount Device

• Length - 2.50mm ±0.15mm

• Width - 2.00mm ±0.15mm

• Height - 0.85mm ±0.15mm

• Compatibility - Surface Mount Device Printed Circuit Board assemblies

Applications -

• DC-DC converters

• Switching power supplies

• Power management circuits

• Output filtering

• Noise suppression

• Mobile devices

• Consumer electronics

• Industrial electronic equipment

• Embedded systems

• Surface Mount Device Printed Circuit Board assemblies
