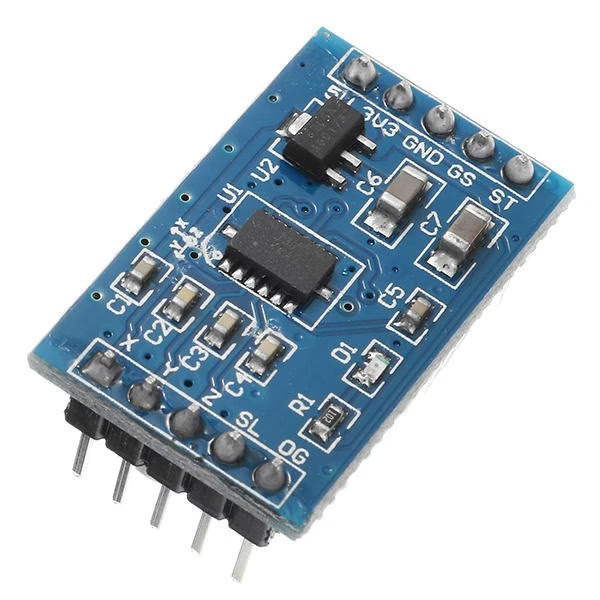

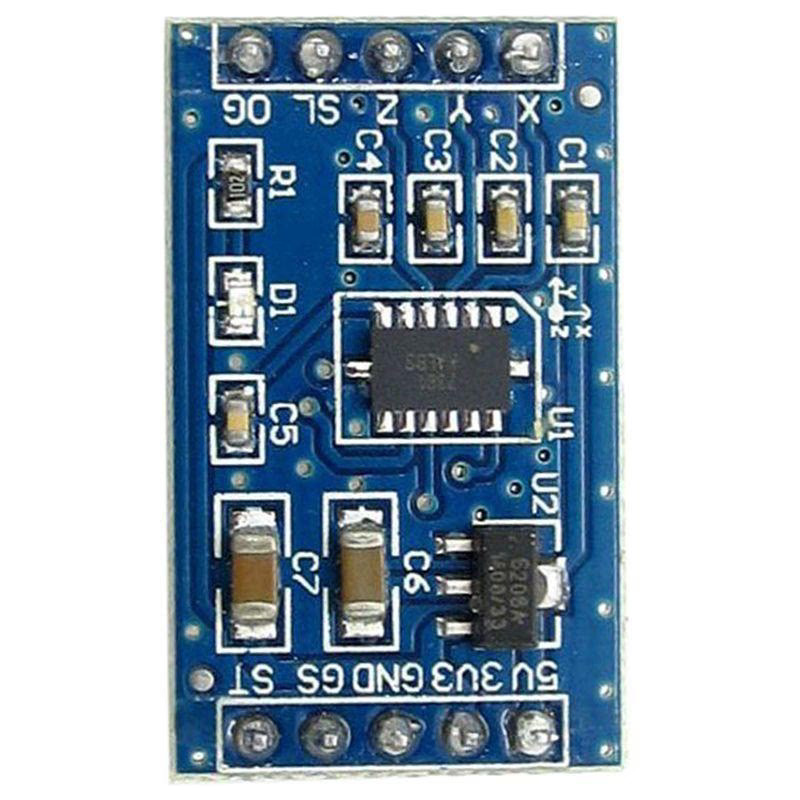

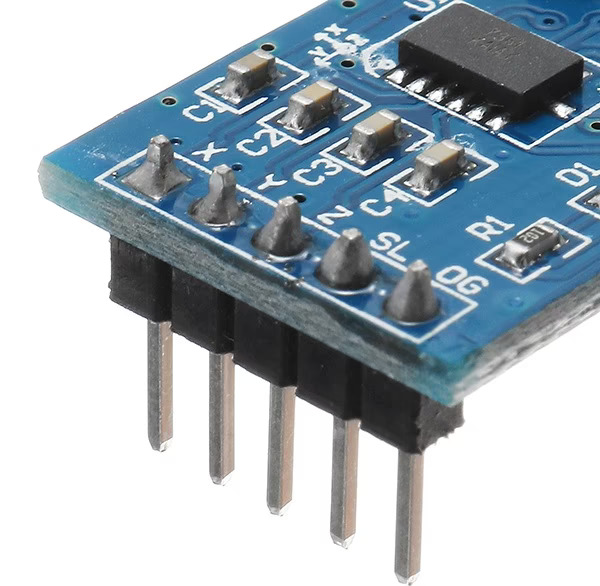

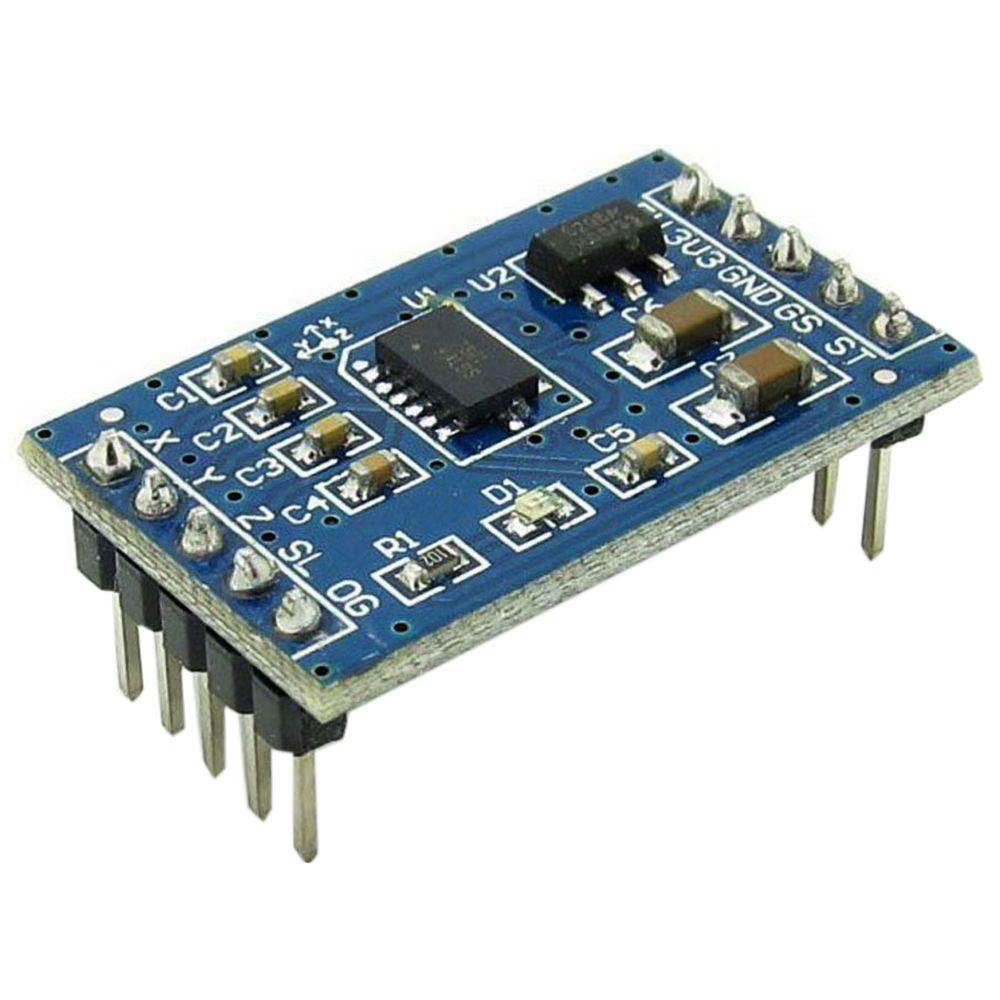

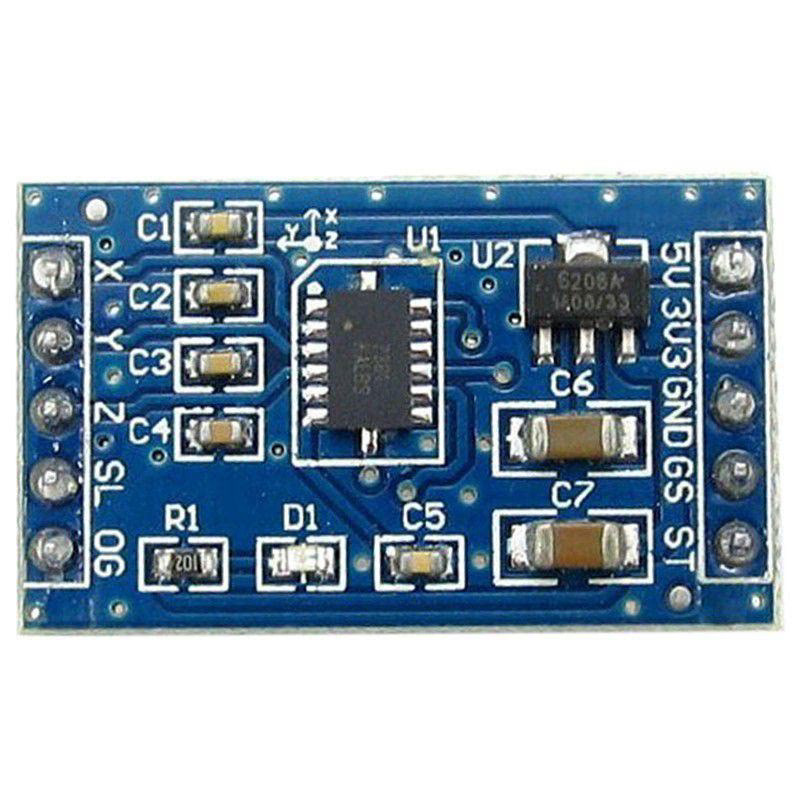

MMA7361 Triple Axis Accelerometer Module
The MMA7361 Triple Axis Accelerometer Module is a compact motion sensing board designed to measure acceleration along the X, Y, and Z axes. It uses the MMA7361 accelerometer IC, which provides analog voltage outputs proportional to acceleration, making it easy to interface with microcontrollers such as Arduino, ESP, and PIC. This module supports adjustable sensitivity and low power consumption, making it ideal for robotics, tilt sensing, gesture detection, and motion monitoring applications.
This accelerometer module is suitable for portable electronics, embedded systems, and IoT projects requiring real-time motion data. The onboard voltage regulator and filtering components ensure stable readings, while the module’s standard pin layout allows straightforward integration into breadboard and prototype circuits.
KEY FEATURES
- Triple axis acceleration sensing (X, Y, Z)
- Analog voltage outputs
- Adjustable sensitivity (selectable 1.5g / 6g)
- Low power consumption
- Compact and lightweight design
- Easy interface with microcontrollers
- Ideal for motion, tilt, and gesture detection
SPECIFICATIONS
- Sensor IC MMA7361
- Measurement Axes 3 (X, Y, Z)
- Sensitivity Selectable 1.5g / 6g
- Output Type Analog voltages
- Operating Voltage 3.3V to 5V DC
- Current Consumption Low (module dependent)
- Response Time Real-time acceleration data
INTERFACES
- VCC Power supply
- GND Ground
- XOUT Analog output X-axis
- YOUT Analog output Y-axis
- ZOUT Analog output Z-axis
- SEL Sensitivity select pin
