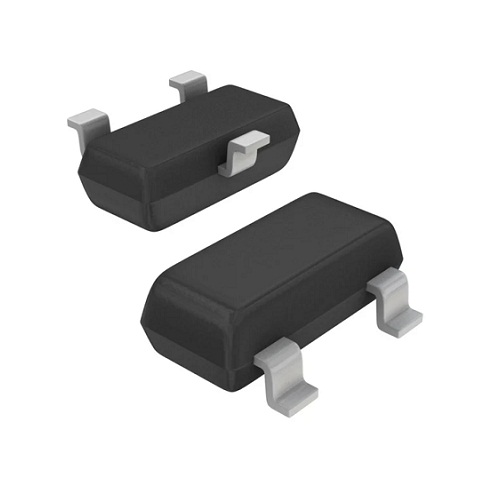

MMBD7000LT1G – 100V 200mA Dual Switching Diode, Common Cathode, SOT-23

The MMBD7000LT1G is a high-speed dual switching diode featuring a common cathode configuration in a compact SOT-23 surface-mount package. Designed for fast switching applications, it offers a 100V reverse voltage, 200mA forward current, and an ultra-fast 4ns reverse recovery time, making it ideal for high-speed switching, signal routing, logic circuits, clamp circuits, and general-purpose electronic applications.

Key Features -

• Dual switching diode with common cathode configuration

• High reverse voltage rating of 100V

• Average forward current of 200mA

• Ultra-fast 4ns reverse recovery time

• Low reverse leakage current of 3µA (max)

• Forward voltage of 1.1V (max)

• Compact SOT-23 surface-mount package

• Wide operating temperature range from -55°C to +150°C

Specifications -

• Product Type - Dual Switching Diode

• Part Number - MMBD7000LT1G

• Diode Configuration - Dual, Common Cathode

• Package - SOT-23

• Mounting Type - Surface Mount (SMD)

• Number of Pins - 3

• Average Forward Current (IF(AV)) - 200mA

• Forward Current - 200mA

• Forward Voltage (VF Max) - 1.1V

• Reverse Voltage (VR / VRRM) - 100V

• Reverse Leakage Current (IR Max) - 3µA

• Peak Forward Surge Current (IFSM) - 500mA

• Power Dissipation - 300mW

• Reverse Recovery Time (trr) - 4ns

• Operating Temperature Range - -55°C to +150°C

• Maximum Junction Temperature - 150°C

Applications -

• High-speed switching circuits

• Signal routing and steering

• Logic circuits

• Clamp and protection circuits

• Pulse shaping circuits

• Communication equipment

• Consumer electronics

• Industrial control systems

• General-purpose SMD electronic designs
