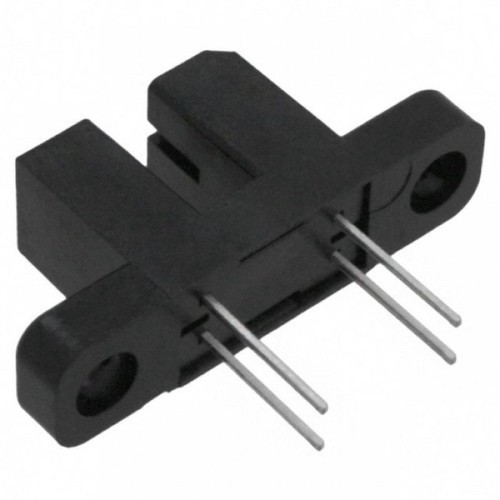

MOC7811 Slotted Opto Isolator Sensor (5V, IR Slot Type)

The MOC7811 Slotted Opto Isolator Sensor is an optical switching device designed for non contact object detection, position sensing, and motion measurement. It uses an infrared emitting diode and a phototransistor positioned opposite each other across a slot. When an object passes through the slot, it interrupts the infrared beam and changes the phototransistor output. This switching response makes the sensor suitable for encoder systems, counting applications, and automated equipment.

Key Features -

• Integrated infrared emitting diode and phototransistor

• Slot type optical detection using beam interruption

• Non contact object and position sensing

• Suitable for rotary encoder and speed measurement circuits

• Phototransistor switching output

• Compact module design with mounting holes

• Suitable for microcontroller based sensing applications

Specifications -

• Model: MOC7811

• Component Type: Slotted opto isolator sensor

• Sensing Method: Infrared beam interruption

• Emitter: Infrared emitting diode

• Receiver: Phototransistor

• Operating Voltage: Approximately 5V, depending on the module circuit

• Input Current: Verify the allowable current for the exact module

• Output Type: Phototransistor switching output

• Slot Width: Approximately 3 mm, as provided

• Slot Depth: Approximately 7 mm, as provided

• Mounting Hole Spacing: Approximately 19 mm, as provided

• Output Voltage Rating: Verify the transistor and module ratings before use

Applications -

• Rotary encoders and motor speed measurement

• Object detection and counting systems

• Position and end stop detection

• 3D printer and CNC machine movement sensing

• Automated production equipment

• Robotics and embedded control systems

• Optical switching and rotation monitoring
