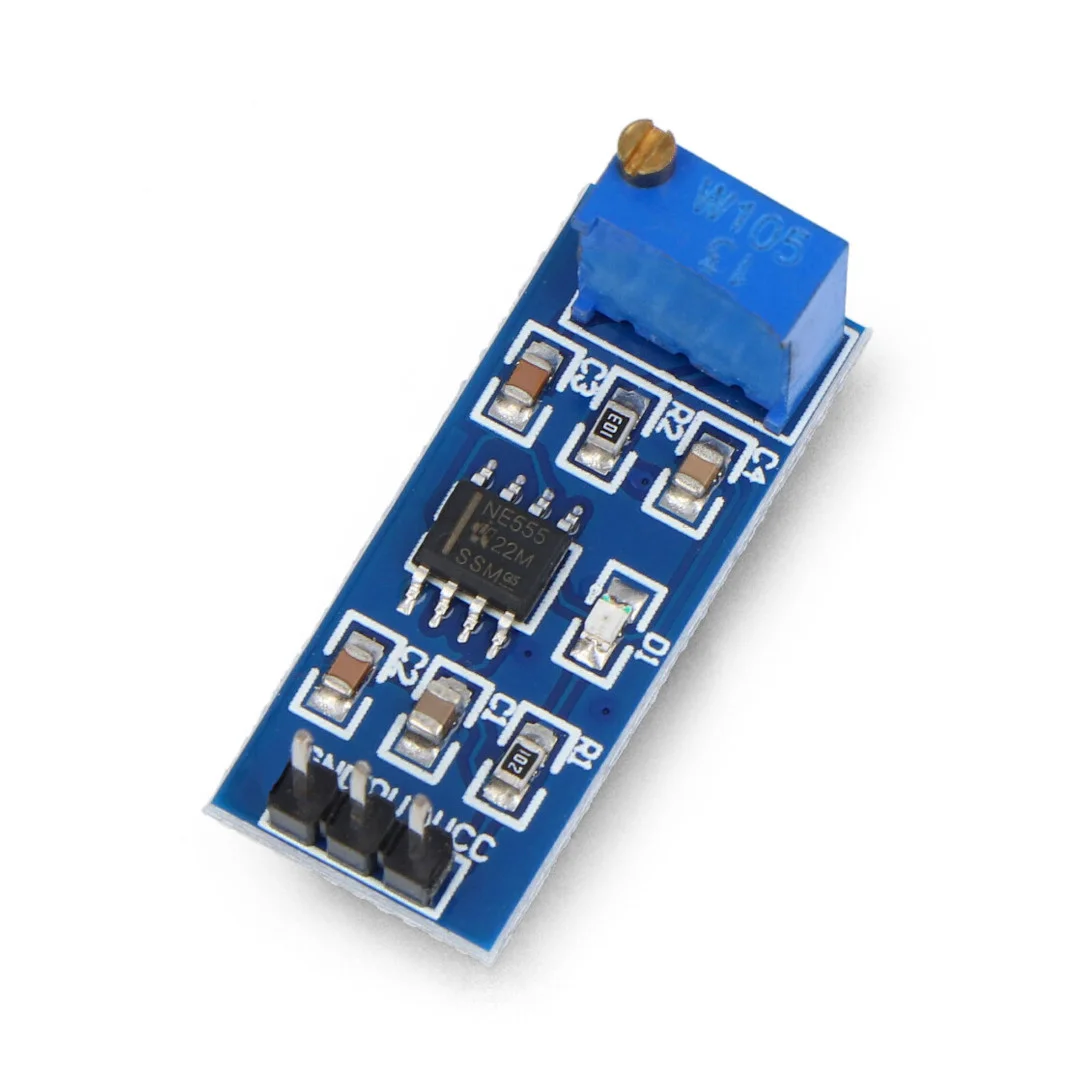

NE555 Frequency Adjustable Pulse Square Wave Signal Generator Module (PWM Pulse Generator, 5V-15V)

The NE555 Frequency Adjustable Pulse Square Wave Signal Generator Module is a compact signal generation board based on the popular NE555 timer IC. It generates stable square wave pulse signals with adjustable frequency and duty cycle, making it suitable for PWM control, clock pulse generation, timing circuits, signal triggering, motor speed control, LED dimming, and electronics testing. The onboard potentiometer allows quick adjustment of the output frequency, while the simple interface makes it easy to integrate with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other embedded systems.

Key Features -

• Based on NE555 timer IC

• Adjustable square wave pulse output

• Adjustable frequency via onboard potentiometer

• Adjustable duty cycle

• Stable and reliable signal generation

• Compact PCB design

• Low power consumption

• Easy microcontroller interfacing

• Suitable for PWM and timing applications

• Ideal for testing and DIY electronics

Specifications -

• Product type - Signal Generator Module

• Timer IC - NE555

• Output signal - Square Wave Pulse

• Frequency range - Adjustable (Module Dependent)

• Duty cycle - Adjustable

• Operating voltage - 5V to 15V DC (Module Dependent)

• Output type - Digital Pulse

• Signal amplitude - Approximately Equal to Supply Voltage

• Mounting type - PCB Module

• Operating temperature - Standard Ambient

Applications -

• PWM signal generation

• Clock pulse generation

• LED dimming

• Motor speed control

• Function testing

• Timing circuits

• Educational electronics

• Embedded electronics
