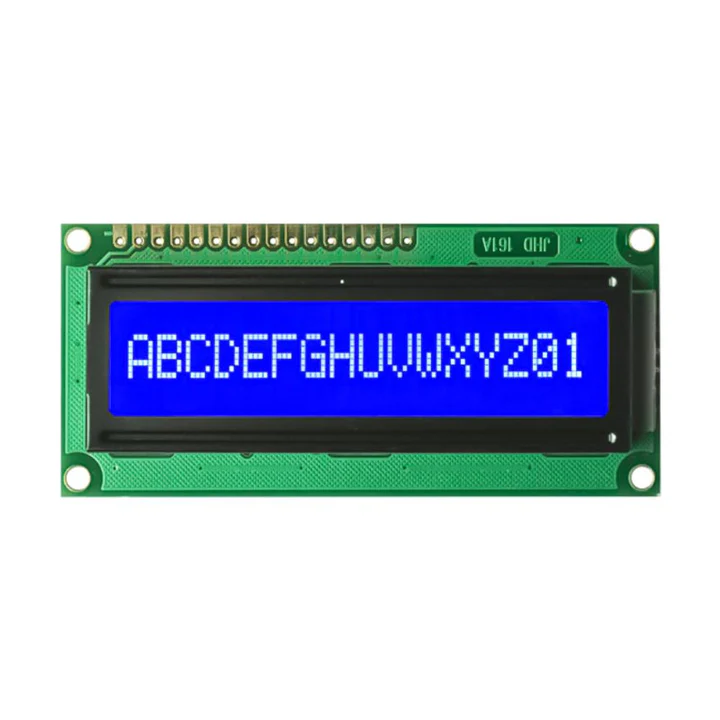

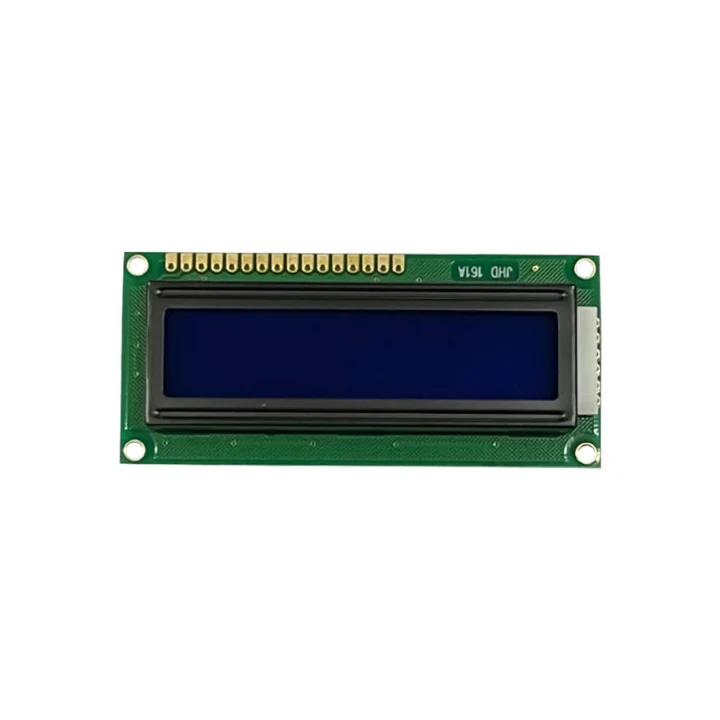

Original JHD 16x1 Character LCD Display With Blue Backlight
The Original JHD 16x1 character LCD display is a compact alphanumeric display module designed for simple visual output in microcontroller based electronics projects. It can display up to 16 characters in a single row making it suitable for showing sensor readings system messages or numerical values in embedded systems.
This display features high contrast white text on a blue background for clear readability. It uses the SPLC780D controller and supports a standard parallel interface which allows easy connection with Arduino and other microcontrollers. The integrated blue LED backlight improves visibility and can be adjusted using a resistor or PWM control.
Key Features
- 16 character by 1 line LCD display
- High contrast white text on blue background
- Blue LED backlight for improved readability
- Compatible with Arduino and other microcontrollers
- Parallel interface for easy integration
- Can be controlled using 6 digital lines
- Compact display suitable for embedded systems
Specifications
- Product Type = Character LCD display
- Model Type = JHD LCD
- Display Format = 16 x 1 characters
- Controller = SPLC780D
- Backlight Color = Blue
- LCD Type = STN blue negative
- Character Size = 3.20 x 6.35 mm
- Viewing Area = 64.5 x 14.5 mm
- Length = 80 mm
- Width = 36 mm
- Height = 14.5 mm
- Weight = 32 g

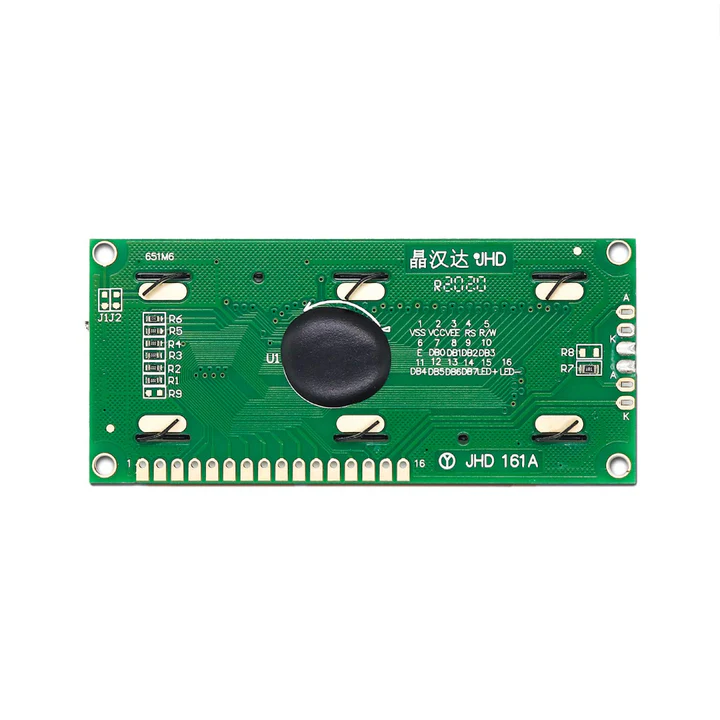

Interfaces
- VSS = Ground
- VDD = Power supply
- VO = Contrast adjustment
- RS = Register select
- RW = Read write control
- E = Enable signal
- D0 = Data bit 0
- D1 = Data bit 1
- D2 = Data bit 2
- D3 = Data bit 3
- D4 = Data bit 4
- D5 = Data bit 5
- D6 = Data bit 6
- D7 = Data bit 7
- A = Backlight anode
- K = Backlight cathode
