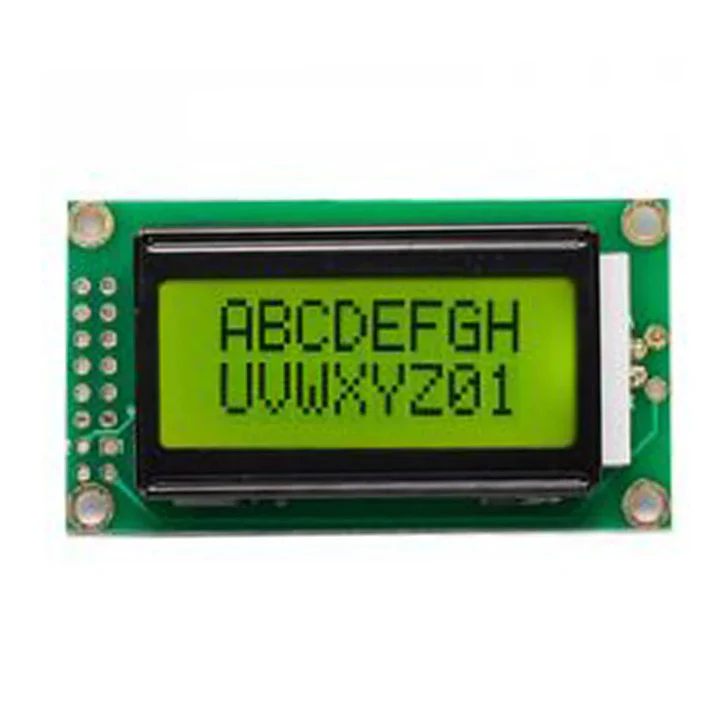

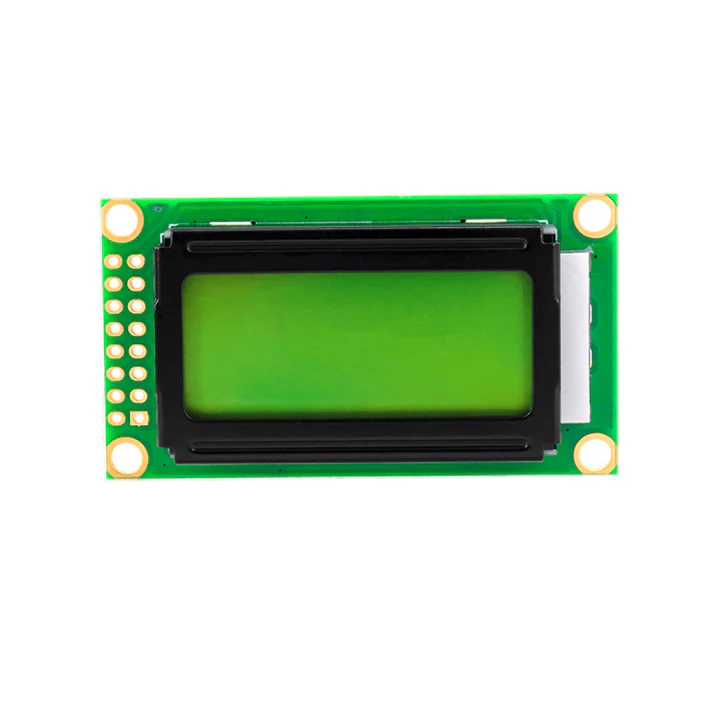

Original JHD 8x2 Character LCD Display With Yellow Backlight (SPLC780D Controller)

The Original JHD 8x2 Character LCD Display is a compact alphanumeric display module designed for microcontroller based electronics projects and embedded systems. It displays up to 8 characters per line across 2 lines, making it suitable for showing sensor readings, numerical values, system messages, and operating status.

The display features an STN yellow green LCD with dark characters and a yellow backlight for improved visibility. It uses the SPLC780D controller and a standard parallel interface for integration with compatible microcontrollers, including Arduino boards. The interface supports 4 bit or 8 bit operation, helping simplify connections according to the project requirements.

Key Features -

• 8 character by 2 line alphanumeric display

• STN yellow green LCD with dark characters

• Integrated yellow LED backlight

• SPLC780D display controller

• Standard parallel interface

• Supports 4 bit and 8 bit communication modes

• Compatible with Arduino and other supported microcontrollers

• Suitable for embedded systems and electronic prototypes

• Compact design for space constrained applications

Specifications -

• Product Type: Character LCD Display Module

• Model: JHD 8x2

• Display Format: 8x2 Characters

• Controller: SPLC780D

• LCD Type: STN Yellow Green

• Backlight Colour: Yellow

• Character Size: 2.96 x 5.56 mm

• Viewing Area: 37.8 x 16 mm

• Length: 58 mm

• Width: 32 mm

• Height: 10 mm

• Weight: 23 g

• Interface Type: Parallel

• Communication Mode: 4 Bit or 8 Bit

• Operating Voltage: Refer to the specific module datasheet

Applications -

• Arduino based projects

• Sensor monitoring systems

• Temperature and measurement displays

• Embedded control systems

• Laboratory and test equipment

• Industrial electronic instruments

• Digital counters and timers

• DIY electronics and prototyping
