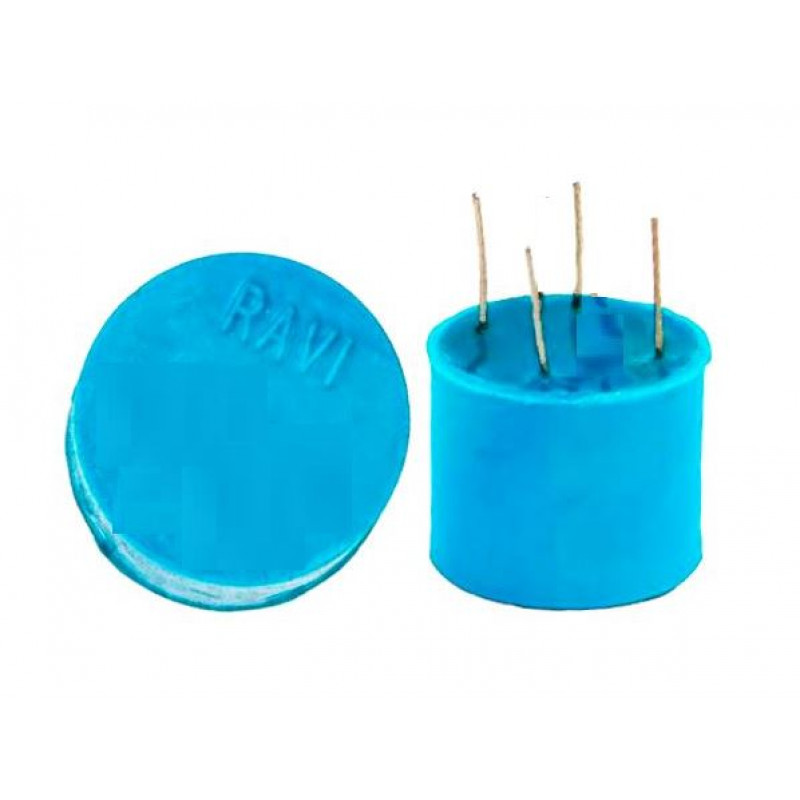

PT4502 Pulse Transformer 1:1 (Isolation Pulse Transformer)

The PT4502 Pulse Transformer 1:1 is a compact isolation transformer designed for reliable high-frequency pulse signal transmission while providing galvanic isolation between electronic circuits. Featuring a 1:1 turns ratio, it transfers pulse signals with minimal distortion and excellent electrical isolation, making it ideal for Ethernet interfaces, switching power supplies, gate driver circuits, digital communication systems, and industrial electronics.

Its compact through-hole package, low insertion loss, and high reliability make it suitable for embedded systems, networking equipment, telecom applications, and signal isolation circuits.

Key Features -

• 1:1 turns ratio

• High-speed pulse signal transmission

• Excellent galvanic isolation

• Low insertion loss

• Compact through-hole package

• High reliability and stable performance

• Suitable for high-frequency applications

• Good noise immunity

• Easy PCB mounting

Specifications -

• Product Type: Pulse Transformer

• Model: PT4502

• Turns Ratio: 1:1

• Mounting Type: Through Hole

• Isolation Type: Galvanic Isolation

• Signal Type: Pulse / High-Frequency Signal

• Package: DIP

Applications -

• Ethernet communication interfaces

• Switching Mode Power Supplies (SMPS)

• Gate driver circuits

• Digital communication systems

• Industrial automation equipment

• Signal isolation circuits

• Embedded electronic systems

• Networking equipment

• Telecom equipment
