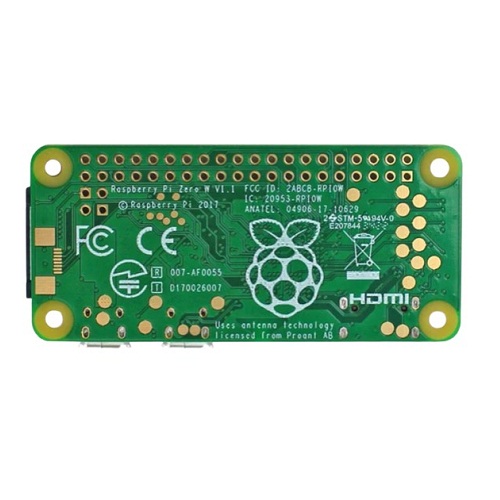

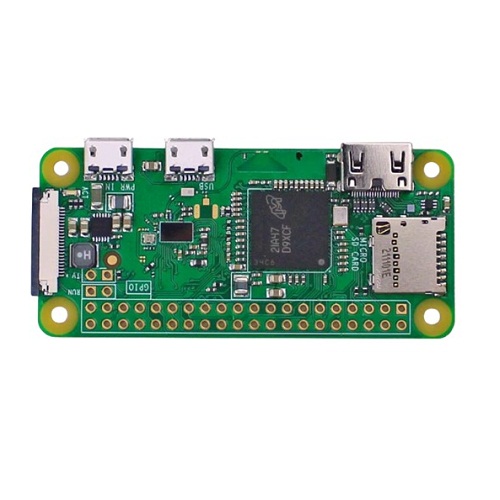

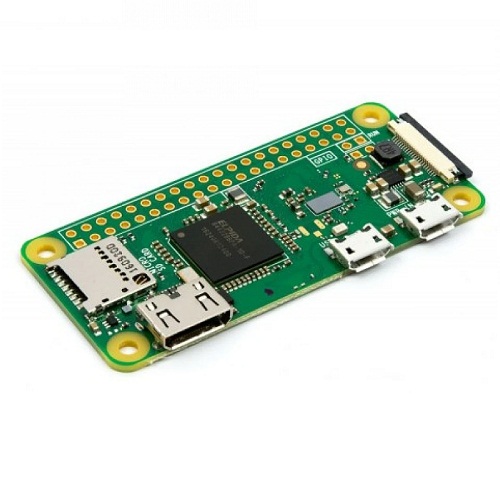

Raspberry Pi Zero W Single Board Computer (Built-In Wi-Fi & Bluetooth Development Board)

The Raspberry Pi Zero W is a compact and low-cost single-board computer designed for embedded systems, Internet of Things (IoT), robotics, wearable electronics, and portable computing applications. Powered by a Broadcom BCM2835 single-core ARM processor, it features built-in 2.4GHz Wi-Fi and Bluetooth 4.1 with Bluetooth Low Energy (BLE) for seamless wireless connectivity. Despite its miniature size, the Raspberry Pi Zero W supports Raspberry Pi OS and other Linux distributions, making it an excellent platform for education, prototyping, and embedded development.

Key Features -

• Broadcom BCM2835 single-core ARM processor

• Built-in 2.4GHz IEEE 802.11 b/g/n Wi-Fi

• Bluetooth 4.1 with Bluetooth Low Energy (BLE)

• 512MB LPDDR2 SDRAM

• Mini HDMI output for digital video and audio

• Micro USB OTG port for peripheral connectivity

• 40-pin GPIO header footprint for hardware expansion

• CSI camera connector for Raspberry Pi Camera Module

• microSD card slot for operating system and storage

• Compact and lightweight design for portable embedded projects

Specifications -

• Product type - Single Board Computer (SBC)

• Model - Raspberry Pi Zero W

• Main processor - Broadcom BCM2835

• CPU architecture - ARM1176JZF-S Single-Core

• CPU speed - 1GHz

• Memory - 512MB LPDDR2 SDRAM

• Wireless connectivity - IEEE 802.11 b/g/n Wi-Fi, Bluetooth 4.1, BLE

• USB interface - Micro USB 2.0 OTG

• Video output - Mini HDMI

• Storage - microSD Card Slot

• GPIO - 40-Pin GPIO Header Footprint

• Camera interface - CSI Connector

• Power input - 5V DC via Micro USB

Applications -

• Internet of Things (IoT) devices

• Home automation systems

• Robotics and automation projects

• Wearable electronics

• Portable media and display systems

• Embedded Linux development

• Smart sensors and data logging

• Educational programming and electronics learning
