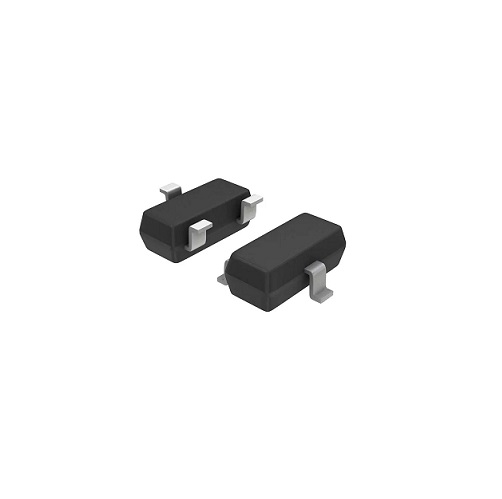

SM712.TCT TVS Diode SOT-23 (Dual Line ESD and Transient Protection Diode for Communication Interfaces)

The SM712.TCT TVS Diode SOT-23 is designed to protect sensitive electronic circuits from electrostatic discharge, transient voltage spikes, and surge events. It provides reliable protection for dual communication lines and helps maintain stable operation in electronic systems.

Key Features -

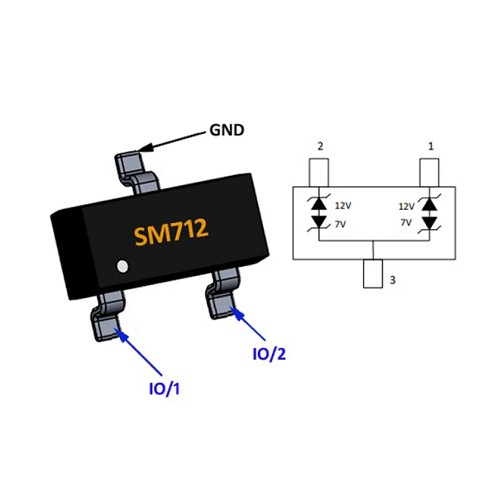

• Dual line transient voltage protection design

• Protects +12V and -7V communication lines

• Compact SOT-23 surface mount package

• High peak pulse power capability

• Fast response transient suppression

• Suitable for communication interface protection

Specifications -

• Product type - TVS Protection Diode

• Model - SM712.TCT

• Package type - SOT-23

• Mounting type - Surface Mount Device

• Voltage rating - Protects +12V and -7V lines

• Current rating - Suitable for transient protection applications

• Frequency - Suitable for high speed communication circuits

• Material - Silicon Semiconductor

• Additional features - Peak pulse power 500W to 700W, clamping voltage 19V to 26V, dual line protection design

Applications -

• RS-485 communication protection

• Industrial communication interfaces

• Data transmission systems

• Embedded electronic systems

• Surge and ESD protection circuits
