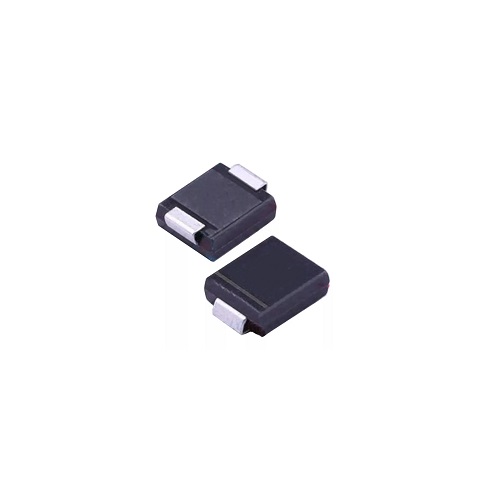

SMAJ36CA ESD Protection Diodes / TVS Diodes 400W 36V 5% Bi-Directional (SMA DO-214AC Transient Voltage Suppression Diode)

The SMAJ36CA ESD Protection Diodes / TVS Diodes are designed for circuit protection against electrostatic discharge, voltage spikes, and transient surges in electronic systems. It provides fast response protection and reliable voltage clamping for sensitive electronic components.

Key Features -

• Bi directional TVS diode protection design

• 400W peak pulse power dissipation

• Fast response transient voltage suppression

• Compact SMA DO-214AC SMD package

• Reliable ESD and surge protection performance

• Suitable for sensitive electronic circuits

Specifications -

• Product type - TVS Protection Diode

• Model - SMAJ36CA

• Package type - SMA DO-214AC

• Mounting type - Surface Mount Device

• Voltage rating - Working Voltage 36V

• Current rating - Peak Pulse Current 6.9A

• Frequency - Suitable for high speed protection applications

• Material - Silicon Semiconductor

• Additional features - Bidirectional polarity, clamping voltage 58.1V, breakdown voltage 40V, ±5% tolerance, single channel protection

Applications -

• ESD protection circuits

• Power supply surge protection

• Communication equipment

• Industrial electronic systems

• Consumer electronic devices
