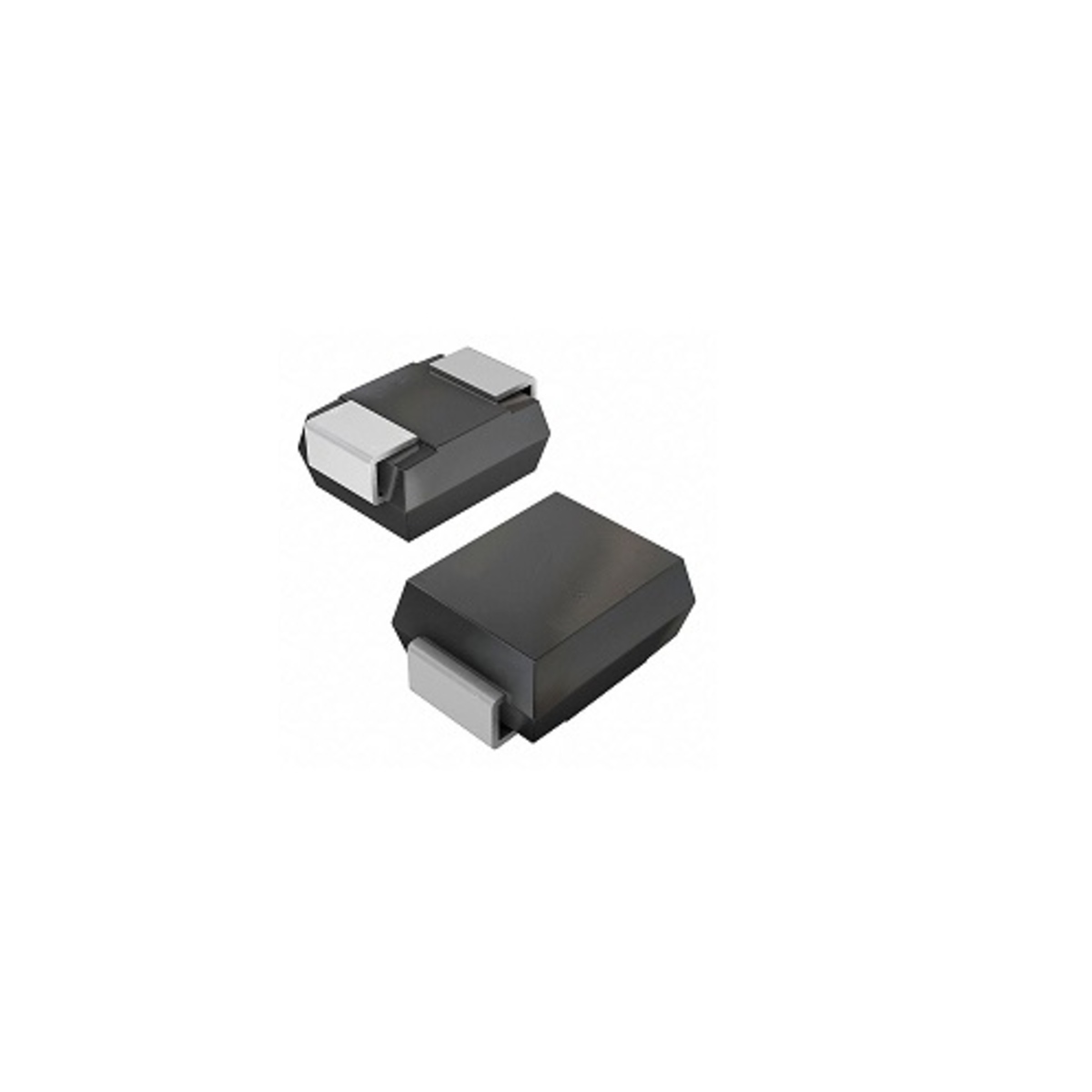

SMBJ33CA 33V Bidirectional TVS Diode 600W SMB DO-214AA (Transient Voltage Suppressor)

The SMBJ33CA TVS Diode is a bidirectional transient voltage suppressor designed to protect sensitive electronic circuits from voltage spikes, surges, and transient overvoltage conditions. It features a 33V reverse stand-off voltage, 36.7V breakdown voltage, and 53.3V maximum clamping voltage, making it suitable for power supply protection, automotive electronics, industrial equipment, and communication circuits.

The SMB package provides a compact surface-mount solution for PCB protection applications.

Key Features -

• Bidirectional TVS diode

• 33V reverse stand-off voltage

• 36.7V breakdown voltage

• 53.3V maximum clamping voltage

• 11.3A peak pulse current

• 5uA maximum reverse leakage current

• Compact SMB surface-mount package

• Fast response to transient voltage spikes

• Designed for circuit and component protection

Specifications -

• Product Type: TVS Diode

• Part Number: SMBJ33CA

• Type: Bidirectional

• Package: SMB (DO-214AA)

• Reverse Stand-Off Voltage (VRWM): 33V

• Breakdown Voltage: 36.7V

• Maximum Clamping Voltage: 53.3V

• Peak Pulse Current (IPP): 11.3A

• Reverse Leakage Current (IR): 5uA

• Mounting Type: Surface Mount (SMD)

Applications -

• Power supply protection

• Automotive electronics

• Industrial control systems

• Communication equipment

• DC power lines

• Electronic control modules

• Microcontroller protection

• Interface protection

• PCB transient voltage protection

• Surge protection circuits
