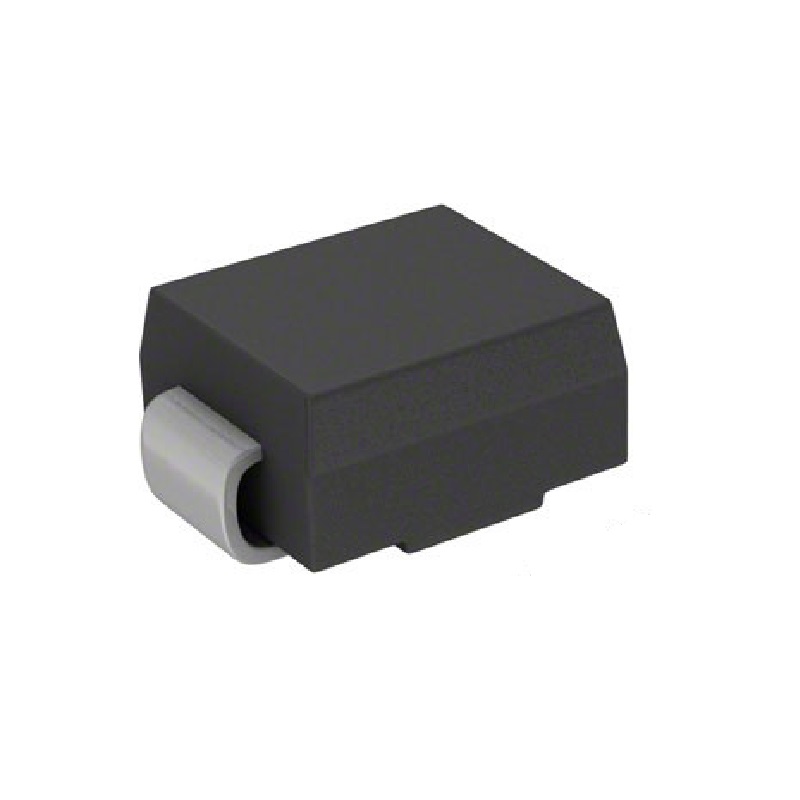

SMBJ36CA Bidirectional TVS Diode 36V SMB (Transient Voltage Suppressor Diode)

The SMBJ36CA TVS Diode is a bidirectional transient voltage suppressor (TVS) diode designed to protect sensitive electronic circuits from electrostatic discharge (ESD), lightning-induced surges, and transient overvoltage events. It features a 36V standoff voltage, fast response time, and high peak pulse power capability, making it ideal for protecting communication lines, industrial equipment, power supplies, and automotive electronics.

Housed in a SMB (DO-214AA) surface mount package, the SMBJ36CA provides reliable surge protection while maintaining low leakage current during normal operation.

Key Features -

• Bidirectional TVS protection diode

• 36V reverse standoff voltage

• Fast response to transient surges

• High peak pulse power dissipation

• Excellent ESD and surge protection

• Low leakage current

• Compact SMB (DO-214AA) package

• High reliability

Specifications -

• Product Type: Transient Voltage Suppressor (TVS) Diode

• Part Number: SMBJ36CA

• Diode Type: Bidirectional TVS Diode

• Package Type: SMB (DO-214AA)

• Reverse Standoff Voltage (VRWM): 36V

• Breakdown Voltage (VBR): Approximately 40V to 44.2V

• Peak Pulse Power Dissipation: 600W (10/1000µs Waveform)

• Peak Pulse Current (IPP): Approximately 9.2A (Typical)

• Mounting Type: Surface Mount (SMD)

• Additional Features: Fast response, low leakage current, high surge capability

Applications -

• ESD protection circuits

• Surge protection systems

• Power supply protection

• Industrial control equipment

• Communication interfaces

• Automotive electronics

• Embedded electronic systems

• Consumer electronic devices
