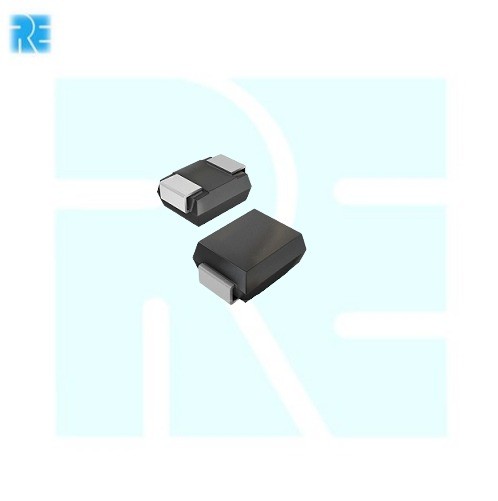

SMBJ5.0CA Bidirectional TVS Diode 5V 600W Surge Protection Diode SMB DO-214AA

The SMBJ5.0CA is a bidirectional Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic circuits from voltage transients caused by Electrostatic Discharge (ESD), lightning, inductive load switching, and other surge events. Featuring a 5V reverse stand-off voltage and 600W peak pulse power capability, it provides fast and reliable protection for low-voltage AC signal lines, communication interfaces, and power supply circuits.

Housed in a compact SMB (DO-214AA) surface-mount package, the SMBJ5.0CA is widely used in industrial, automotive, telecom, consumer, and embedded electronic applications requiring robust surge protection.

Key Features -

• Bidirectional TVS diode for AC and bidirectional signal protection

• 5V reverse stand-off voltage (VRWM)

• 600W peak pulse power rating (10/1000µs waveform)

• Peak pulse current up to 65A (Typical, manufacturer dependent)

• Fast response time for transient suppression

• Excellent clamping capability against voltage surges

• Low leakage current for reliable operation

• SMB (DO-214AA) surface-mount package

• RoHS compliant

Specifications -

• Product Type: TVS (Transient Voltage Suppression) Diode

• Part Number: SMBJ5.0CA

• Polarity: Bidirectional

• Reverse Stand-Off Voltage (VRWM): 5V

• Breakdown Voltage (VBR): 6.4V to 7.0V

• Maximum Clamping Voltage: 9.2V (Typical)

• Peak Pulse Power: 600W (10/1000µs)

• Peak Pulse Current (IPP): Up to 65A (Typical)

• Package: SMB (DO-214AA)

• Mounting Type: Surface Mount (SMD)

• Operating Junction Temperature: -55C to +150C

Applications -

• Power supply protection

• USB and communication interfaces

• Industrial control systems

• Automotive electronics

• Telecom and networking equipment

• Embedded systems and microcontroller boards

• Consumer electronic devices

• Protection for AC signal and data lines
