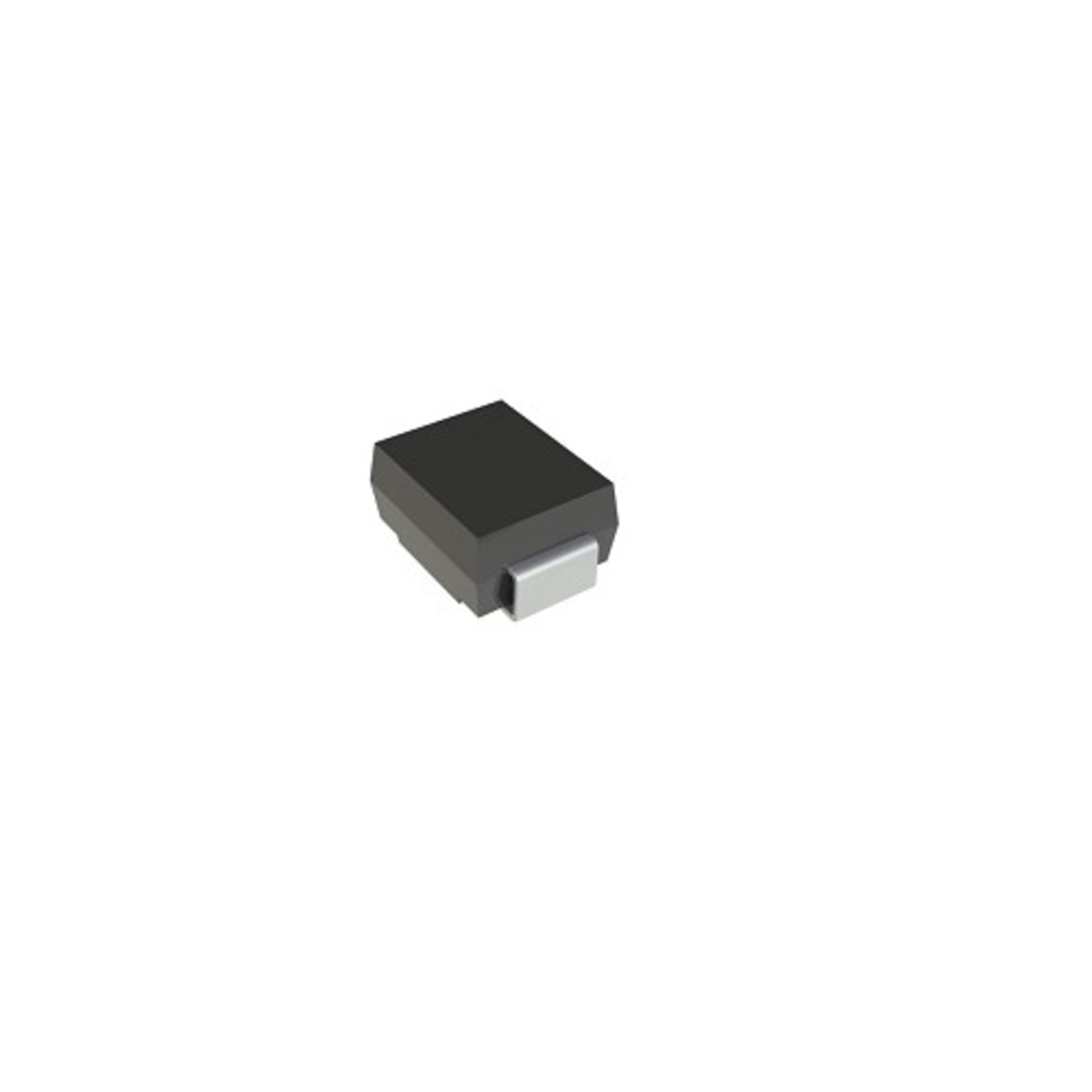

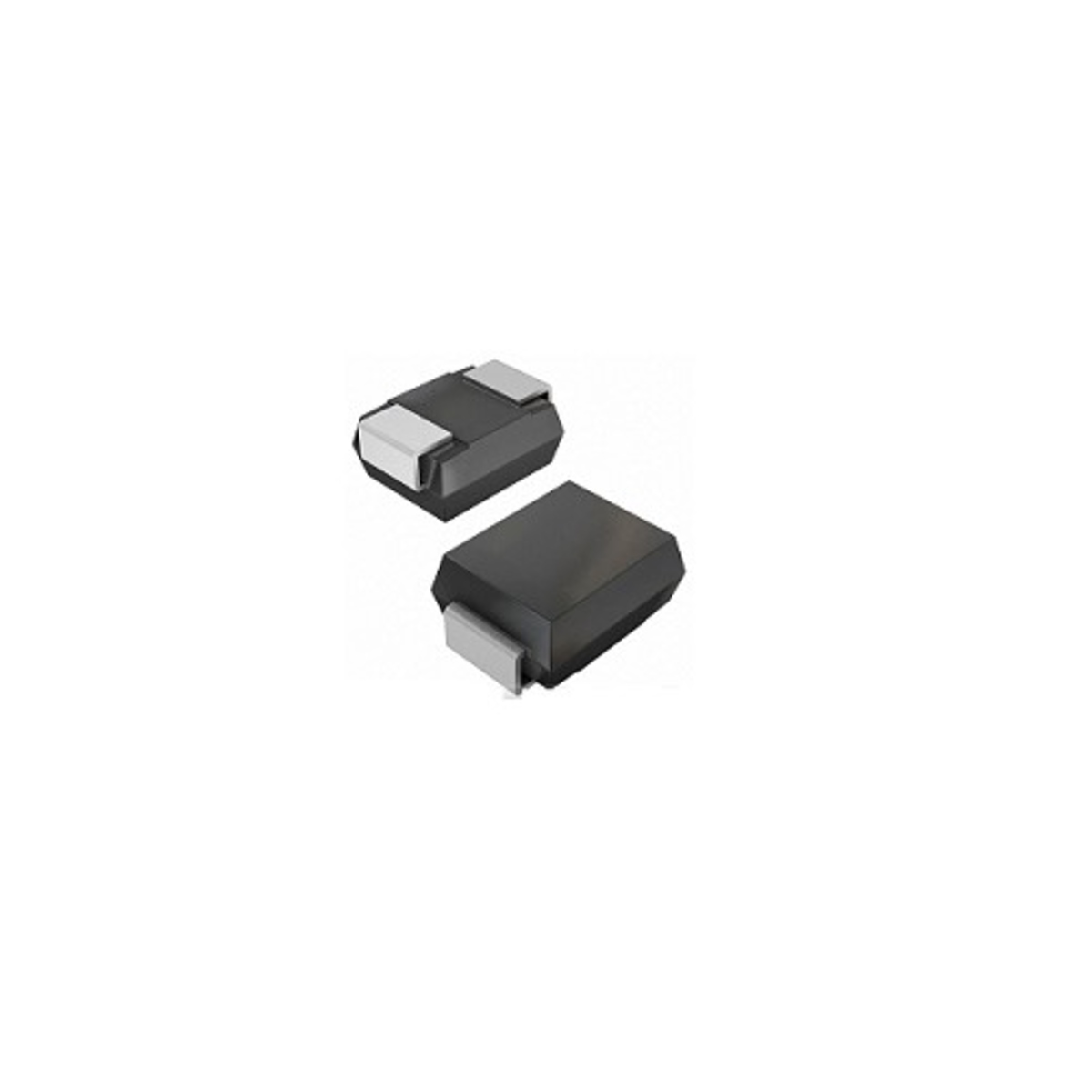

SMBJ8.2CA 8.2V 600W Bidirectional TVS Diode 5% SMB DO-214AA (Transient Voltage Suppressor)

The SMBJ8.2CA TVS Diode is a bidirectional transient voltage suppressor designed to protect electronic circuits from voltage spikes, surges, and transient overvoltage conditions. It features a 7.02V working voltage, 7.79V breakdown voltage, and 12.1V clamping voltage, with a 600W peak pulse power rating.

Its compact SMB (DO-214AA) surface-mount package makes it suitable for PCB protection applications in power supplies, industrial electronics, communication equipment, and other electronic systems.

Key Features -

• Bidirectional TVS diode

• 8.2V nominal TVS voltage

• 7.02V working voltage

• 7.79V breakdown voltage

• 12.1V maximum clamping voltage

• 600W peak pulse power dissipation

• 50.4A peak pulse current

• Single-channel configuration

• Compact SMB surface-mount package

• Designed for transient and surge protection

Specifications -

• Product Type: TVS Diode

• Part Number: SMBJ8.2CA / P6SMB8.2CA

• Polarity: Bidirectional

• Number of Channels: 1 Channel

• Nominal Voltage: 8.2V

• Working Voltage: 7.02V

• Breakdown Voltage: 7.79V

• Clamping Voltage: 12.1V

• Peak Pulse Current (IPP): 50.4A

• Peak Pulse Power Dissipation: 600W

• ESD Contact Voltage: 30kV

• ESD Air Gap Voltage: 30kV

• Termination Style: SMD/SMT

• Package: SMB (DO-214AA)

Applications -

• Power supply surge protection

• DC power line protection

• Industrial electronic equipment

• Communication equipment

• Automotive electronics

• Microcontroller and embedded system protection

• Signal line protection

• Interface protection

• PCB transient voltage protection

• General-purpose overvoltage protection
