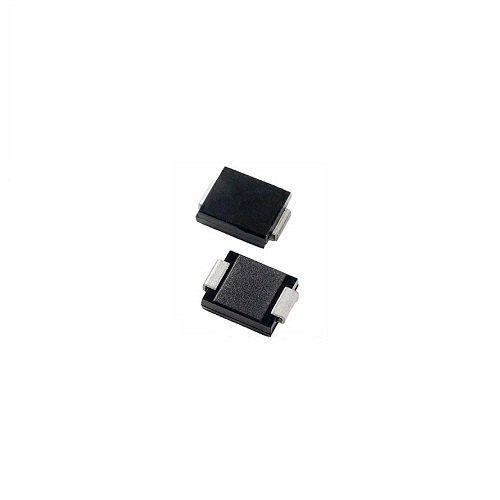

SMCJ5.0CA TVS Diode 5V Bidirectional SMC DO-214AB (1500W Transient Voltage Suppressor Diode)

The SMCJ5.0CA TVS Diode is a high-power bidirectional transient voltage suppressor designed to protect sensitive electronic circuits from voltage surges, electrostatic discharge (ESD), and transient events. With a peak pulse power rating of 1500W and excellent surge-handling capability, it is ideal for protecting low-voltage power rails, communication interfaces, and industrial electronics.

Key Features -

• Bidirectional TVS diode design

• 5V working reverse stand-off voltage

• High 1500W peak pulse power capability

• Excellent ESD protection up to ±30kV

• High peak pulse current handling capacity

• Robust SMC (DO-214AB) surface-mount package

Specifications -

• Product type - TVS Diode

• Model - SMCJ5.0CA

• Package type - SMC (DO-214AB)

• Mounting type - Surface Mount (SMD/SMT)

• Polarity - Bidirectional

• Number of channels - 1 Channel

• Working voltage (VRWM) - 5V

• Breakdown voltage (VBR) - 6.4V

• Maximum clamping voltage (VC) - 9.2V

• Peak pulse current (IPP) - 163A

• Peak pulse power dissipation (PPPM) - 1.5kW (1500W)

• Power dissipation (PD) - 6.5W

• ESD contact discharge protection - ±30kV

• ESD air discharge protection - ±30kV

• Termination style - SMD/SMT

Applications -

• USB and low-voltage interface protection

• Power supply surge protection

• Industrial control systems

• Embedded and microcontroller-based circuits

• Consumer electronic devices

• ESD and transient suppression applications
