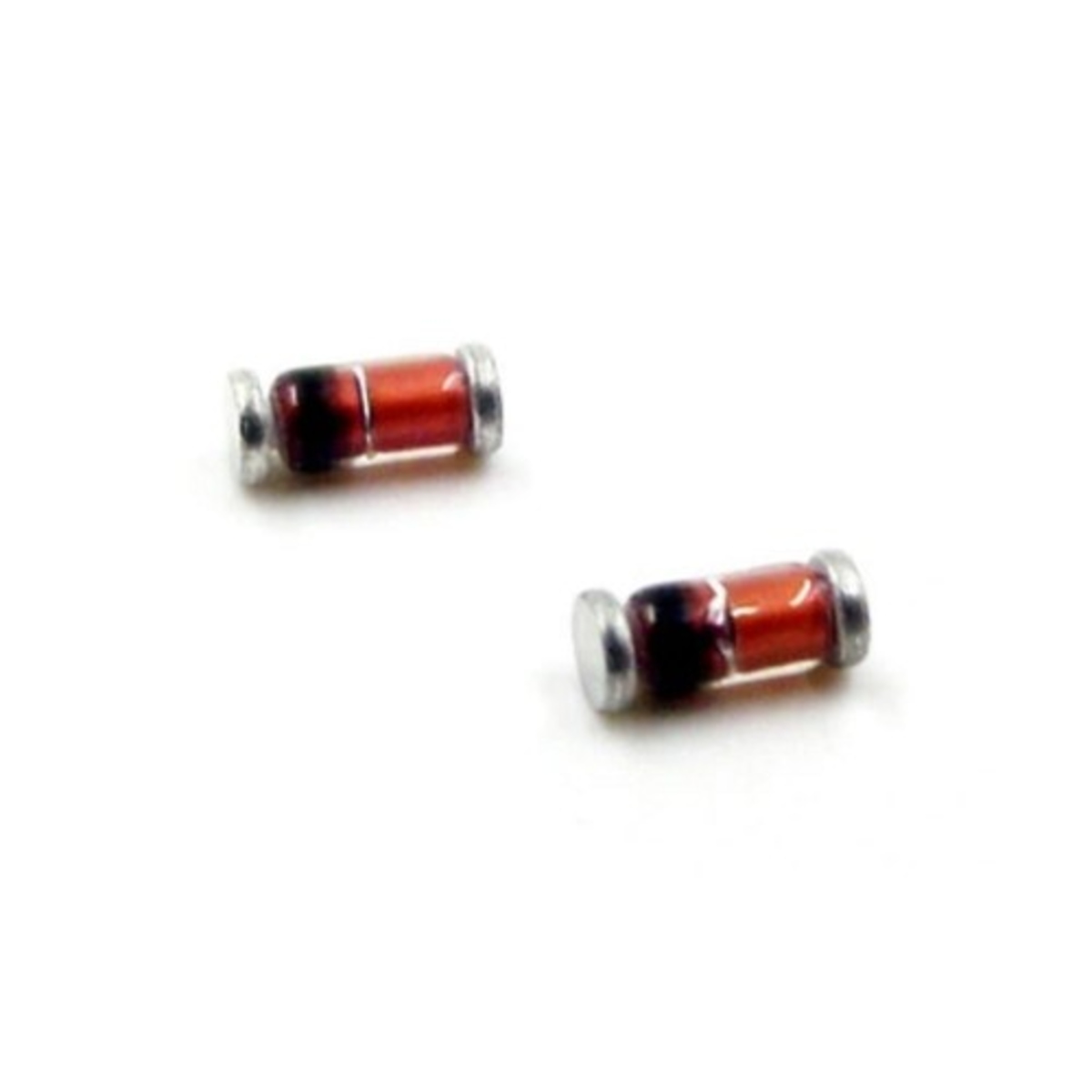

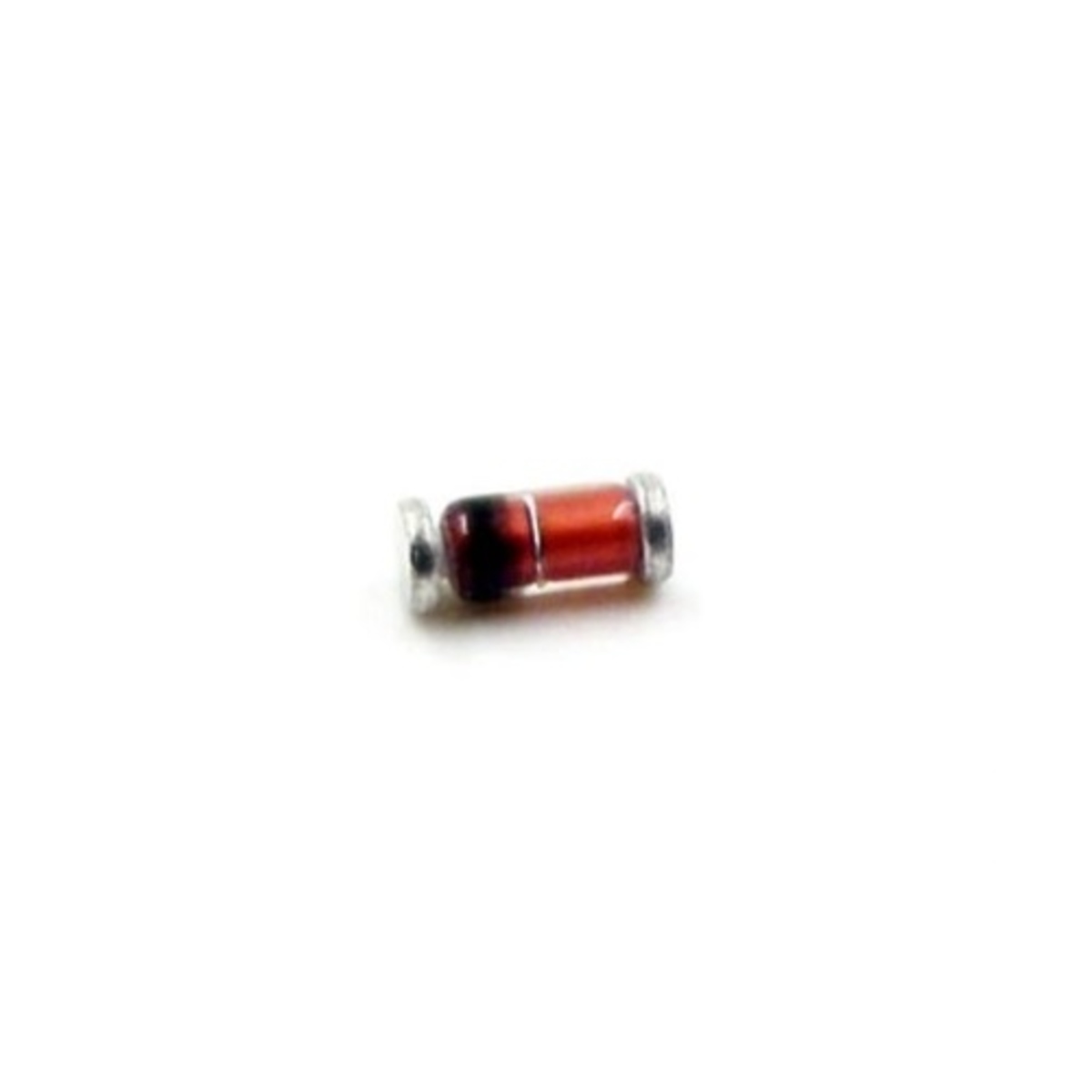

SMD Zener Diode 47V SOD-80 BZV55C47V (Zener Voltage Regulator Diode)

The SMD Zener Diode 47V BZV55C47V is a single Zener diode designed for voltage regulation, voltage reference, clamping, and circuit protection applications. Its compact SOD-80 surface-mount package makes it suitable for PCB assemblies and space-constrained electronic circuits.

Key Features -

• Single Zener diode configuration

• SMD/SMT mounting

• Compact SOD-80 package

• Designed for voltage regulation and protection

• Suitable for PCB mounting

• Compact construction for space-constrained applications

Specifications -

• Product Type: SMD Zener Diode

• Part Number: BZV55C47V

• Zener Voltage: 5.1V

• Voltage Tolerance: ±5%

• Reverse Current: 100uA

• Voltage Temperature Coefficient: 1.2mV/K

• Power Dissipation: 500mW

• Zener Impedance: 60 Ohm

• Configuration: Single

• Mounting Style: SMD/SMT

• Package / Case: SOD-80

• Operating Temperature: -65C to +200C

Applications -

• Voltage regulation

• Voltage reference circuits

• Overvoltage protection

• Voltage clamping

• Power supply circuits

• Signal protection

• Electronic control circuits

• PCB protection circuits

• General electronic applications
