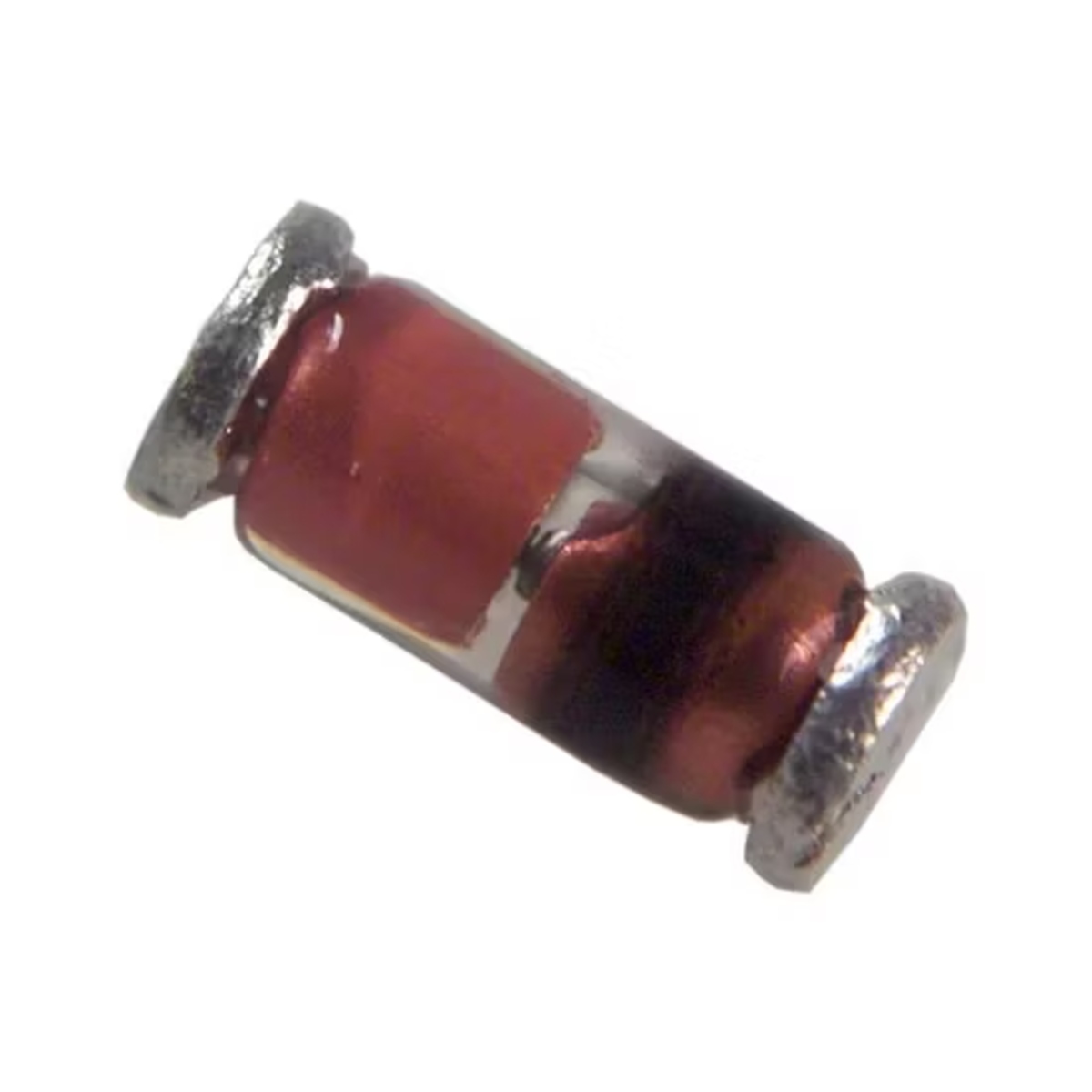

BZV55C5V1 5.1V SMD Zener Diode SOD-80 (MMELF Zener Diode)

The BZV55C5V1 5.1V SMD Zener Diode is a surface mount voltage regulation diode designed for voltage stabilization, overvoltage protection, voltage reference circuits, and signal clipping applications. It provides a nominal Zener voltage of 5.1V with reliable regulation performance in a compact SOD-80 (MMELF) package, making it suitable for space-constrained PCB designs.

The BZV55C5V1 is widely used in power supplies, embedded systems, communication equipment, industrial electronics, and consumer electronic devices.

Key Features -

• 5.1V Zener voltage

• Surface mount SOD-80 (MMELF) package

• Stable voltage regulation

• Low leakage current

• Fast response to voltage transients

• Compact package for high-density PCBs

• High reliability

• Suitable for general-purpose regulation applications

Specifications -

• Product Type: Zener Diode

• Part Number: BZV55C5V1

• Diode Type: Voltage Regulation Diode

• Zener Voltage (VZ): 5.1V

• Package Type: SOD-80 (MMELF)

• Power Dissipation: 500mW Maximum

• Zener Voltage Tolerance: ±5 Percent (Typical)

• Mounting Type: Surface Mount (SMD)

• Operating Temperature: Minus 65 Degree Celsius to Plus 150 Degree Celsius (Typical)

• Additional Features: Stable voltage regulation, low leakage current, compact package

Applications -

• Voltage regulation circuits

• Voltage reference circuits

• Overvoltage protection

• Signal clipping and clamping circuits

• Power supply designs

• Embedded electronic systems

• Industrial control equipment

• Consumer electronics
