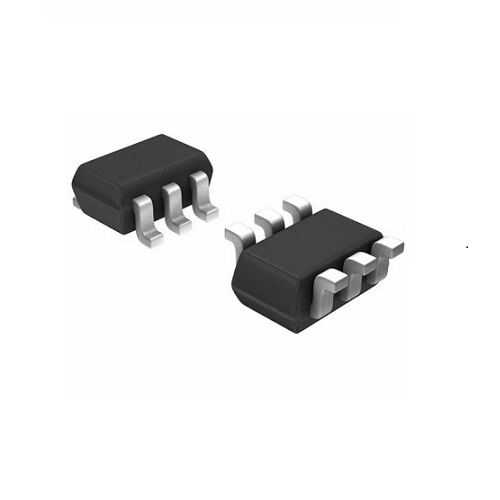

SMF05C.TCT TVS Diode Array – 5V ESD Protection, SC70-6L

The SMF05C.TCT is a 5-channel Transient Voltage Suppression (TVS) diode array designed to protect sensitive electronic circuits from Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and other voltage surge events. Built using solid-state silicon-avalanche technology, it offers fast response, low leakage current, and low clamping voltage, making it ideal for safeguarding high-speed data lines and portable electronic devices. Its compact SC70-6L surface-mount package helps save valuable PCB space in space-constrained designs.

Key Features -

• Provides ESD protection for up to 5 data lines

• Working voltage of 5V

• Low leakage current for minimal impact on signal integrity

• Low operating and clamping voltages for effective surge suppression

• Fast response using solid-state silicon-avalanche technology

• Compact SC70-6L surface-mount package

• Suitable for high-speed digital interfaces

• Designed for portable and space-constrained electronic devices

Specifications -

• Product Type - TVS Diode Array

• Part Number - SMF05C.TCT

• Working Voltage (VRWM) - 5V

• Protected Lines - Up to 5 Data Lines

• Technology - Silicon Avalanche TVS

• Package - SC70-6L

• Mounting Type - Surface Mount (SMD)

• Leakage Current - Low

• Clamping Voltage - Low

Applications -

• USB interface protection

• Microcontroller I/O protection

• Portable electronic devices

• Smartphones and tablets

• Consumer electronics

• Communication equipment

• Industrial control systems

• Data and signal line protection

• Embedded system interfaces
