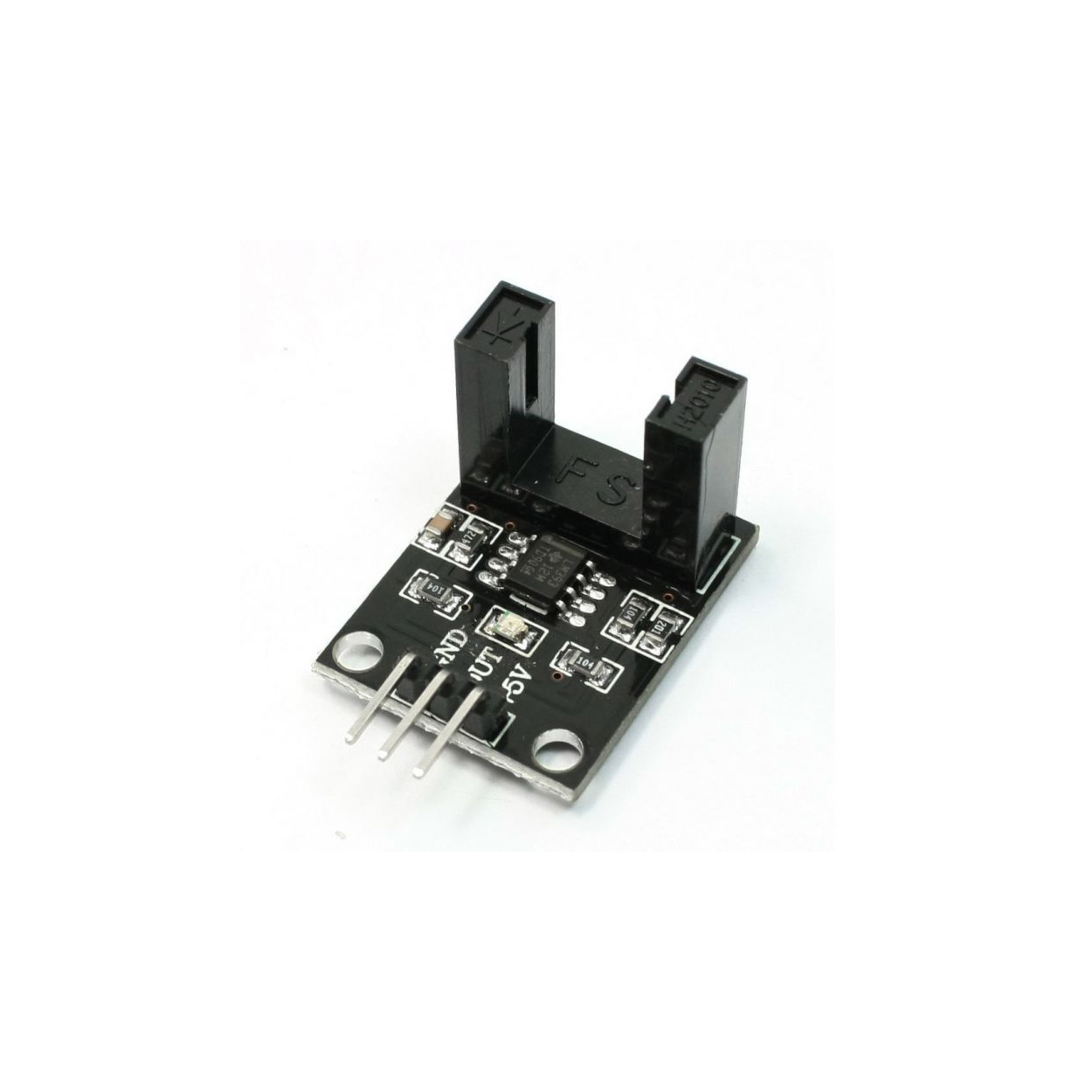

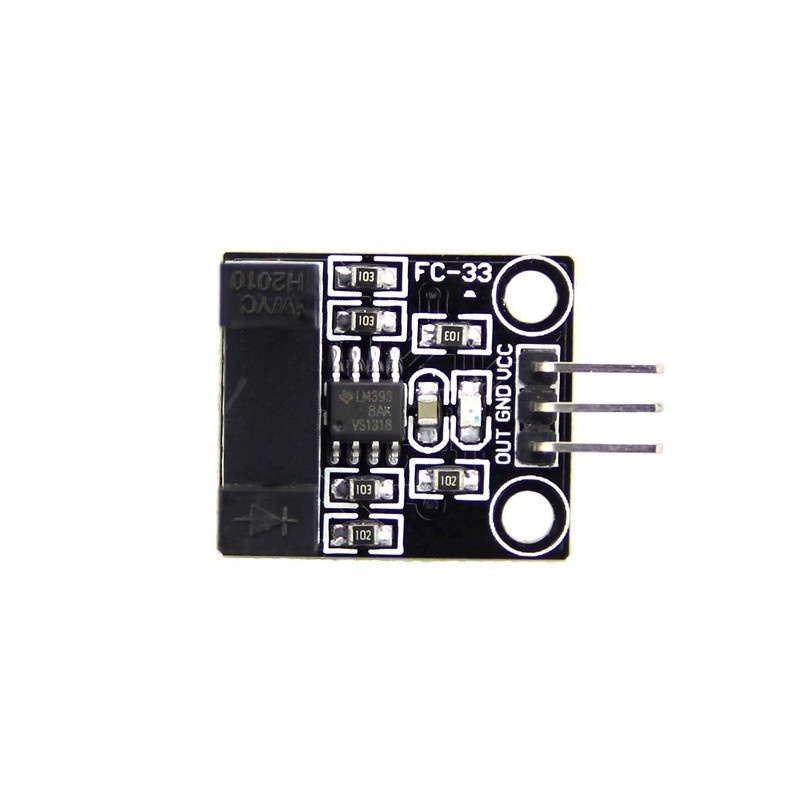

Speed Measuring Sensor Counter Motor Test Groove Coupler Module (Optical Slot Speed Sensor Module)

The Speed Measuring Sensor Counter Motor Test Groove Coupler Module is an optical speed detection module designed for measuring the rotational speed of DC motors, geared motors, and rotating shafts. It uses an infrared slot-type optocoupler to detect encoder discs or slotted objects passing through the sensing gap and generates digital pulse signals proportional to the rotation speed. The module is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other microcontroller platforms, making it ideal for RPM measurement, robotics, automation, motor testing, and embedded control applications.

Key Features -

• Optical slot-type speed detection

• Infrared transmitter and receiver sensing

• Digital pulse output for RPM measurement

• Fast response time

• High sensitivity detection

• Stable and reliable signal output

• Compact PCB module

• Compatible with 3.3V and 5V logic systems

• Easy interface with microcontrollers

• Ideal for robotics and automation projects

Specifications -

• Product type - Optical Speed Sensor Module

• Sensor type - Slot-Type Infrared Optocoupler

• Operating voltage - 3.3V to 5V DC

• Output type - Digital Pulse

• Sensing method - Infrared Optical Detection

• Detection slot - Standard Groove Type

• Response time - Fast Pulse Response

• Logic compatibility - 3.3V / 5V

• Mounting type - PCB Module

• Operating temperature - 0C to 70C

Applications -

• Motor RPM measurement

• DC motor testing

• Rotary encoder systems

• Robotics

• Industrial automation

• Conveyor monitoring

• Speed control systems

• Embedded electronics projects
