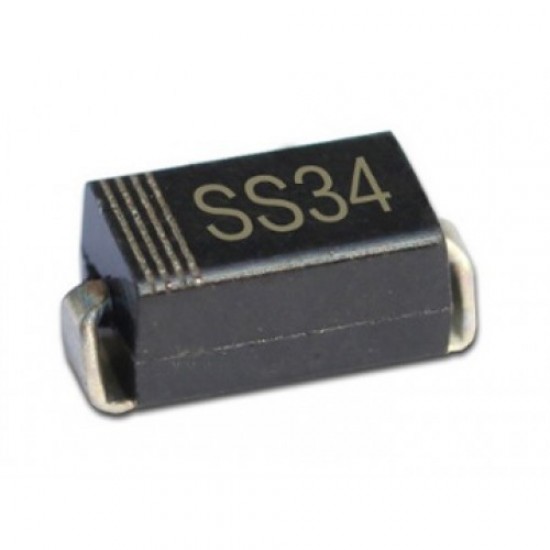

SS34 (1N5822) SMD Schottky Diode 40V 3A DO-214AC (SMA)

The SS34 (1N5822) Schottky Diode is a surface mount Schottky barrier rectifier designed for high-efficiency rectification, reverse polarity protection, DC-DC converters, switching power supplies, battery charging circuits, and freewheeling applications. It features a 3A average forward current, 40V reverse voltage, and low forward voltage drop, ensuring high efficiency and minimal power loss in high-frequency switching circuits.

Housed in a DO-214AC (SMA) package, the SS34 is widely used in power management, automotive electronics, industrial equipment, and consumer electronic devices.

Key Features -

• Schottky barrier rectifier diode

• 3A average forward current

• 40V peak reverse voltage

• Low forward voltage drop

• Fast switching performance

• Low power dissipation

• Compact DO-214AC (SMA) package

• High efficiency rectification

Specifications -

• Product Type: Schottky Rectifier Diode

• Part Number: SS34 (1N5822 Equivalent)

• Diode Type: Schottky Barrier Diode

• Package Type: DO-214AC (SMA)

• Average Forward Current (IF): 3A

• Peak Repetitive Reverse Voltage (VRRM): 40V

• Forward Voltage (VF): Approximately 0.5V to 0.55V (Typical)

• Mounting Type: Surface Mount (SMD)

• Reverse Recovery Time: Very Fast (Schottky Technology)

• Additional Features: Low forward voltage, high efficiency, fast switching, low power loss

Applications -

• Switching power supplies

• DC-DC converters

• Reverse polarity protection

• Freewheeling diode circuits

• Battery charging systems

• Solar power systems

• Power management circuits

• Automotive and industrial electronics
