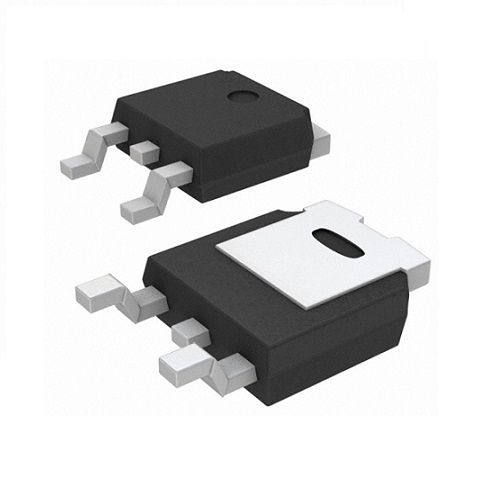

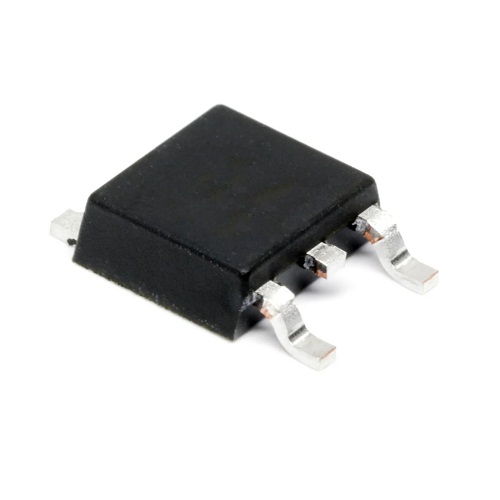

STD25NF10LT4 N-Channel Power MOSFET 100V 25A DPAK (TO-252-3 Surface Mount MOSFET)

The STD25NF10LT4 is a high-performance N-Channel Power MOSFET designed for efficient power switching and power management applications. Featuring a 100V drain-to-source voltage rating, 25A continuous drain current, and a low ON-state resistance of 33mΩ, it delivers excellent switching efficiency with reduced power losses. Housed in a compact DPAK (TO-252-3) Surface Mount Device package, it is ideal for switching power supplies, motor control, battery management systems, DC-DC converters, and industrial electronic equipment.

Key Features -

• N-Channel enhancement mode Power MOSFET

• 100V drain-to-source voltage rating

• 25A continuous drain current

• Low ON-state resistance of 33mΩ

• Compact DPAK (TO-252-3) Surface Mount Device package

• Fast switching performance

• High power dissipation capability

• Suitable for high-frequency switching circuits

• Low conduction losses for improved efficiency

• Excellent thermal performance

Specifications -

• Product Type - N-Channel Power MOSFET

• Model - STD25NF10LT4

• Channel Type - N-Channel

• Number of Channels - 1

• Mounting Type - Surface Mount Device

• Package Type - DPAK-3 (TO-252-3)

• Drain-to-Source Breakdown Voltage (VDS) - 100V

• Continuous Drain Current (ID) - 25A

• Drain-to-Source ON Resistance (RDS(ON)) - 33mΩ

• Gate-to-Source Voltage (VGS) - ±20V

• Gate Threshold Voltage (VGS(th)) - 2V

• Power Dissipation (PD) - 100W

• Rise Time - 60ns

Applications -

• Switching power supplies

• DC-DC converters

• Motor control circuits

• Battery management systems

• LED lighting drivers

• Solar power systems

• Power inverters

• Industrial automation equipment

• Power management circuits

• Embedded electronic systems
