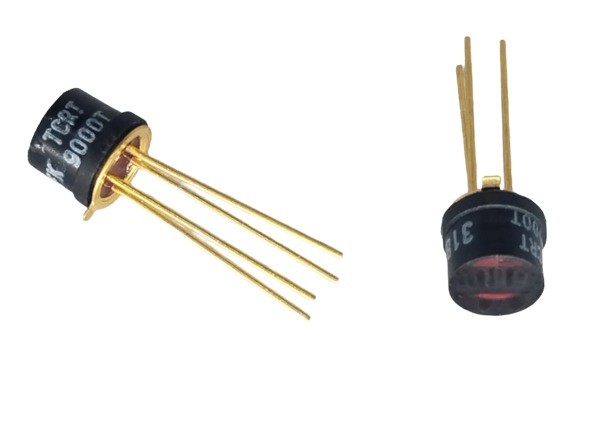

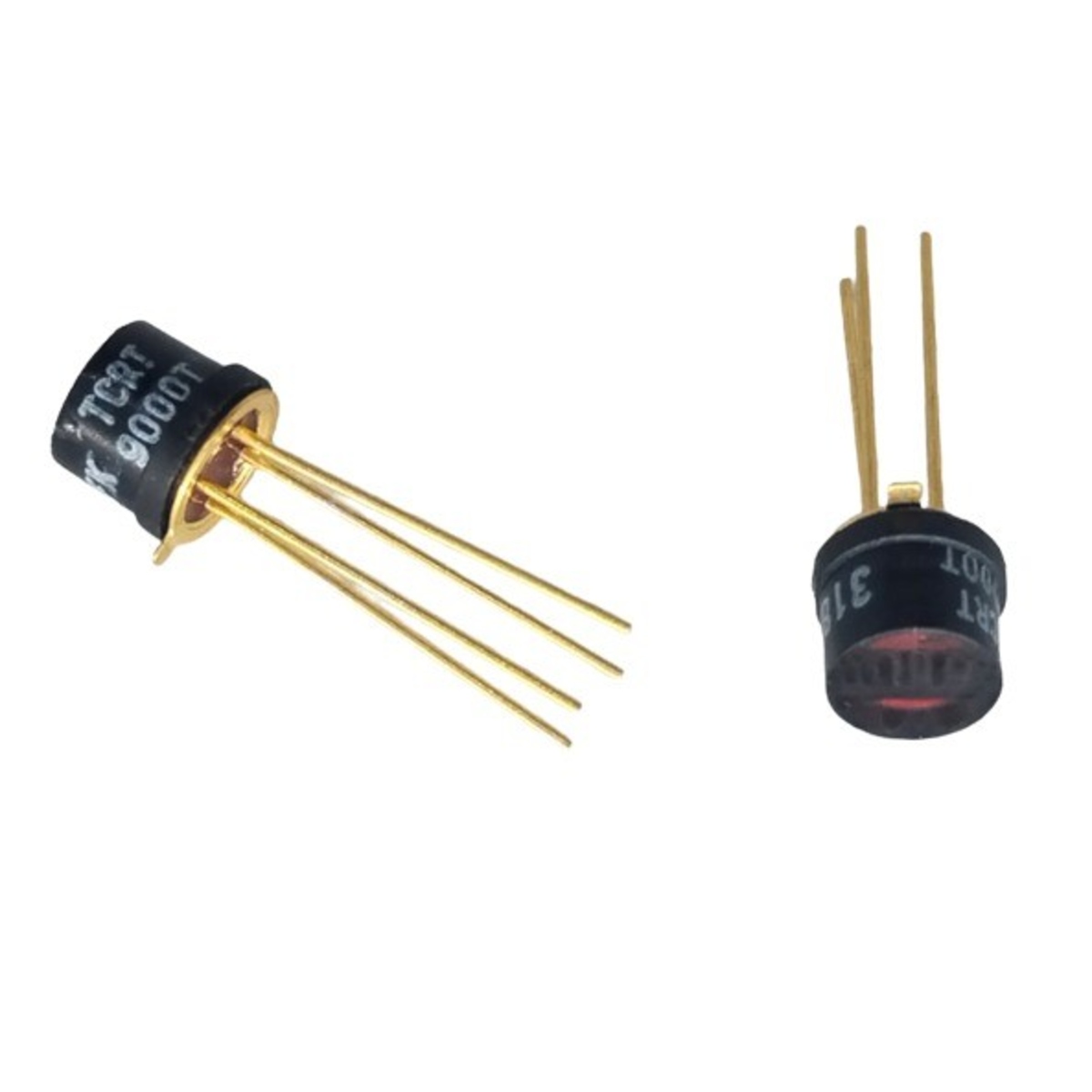

TCRT9000 Reflective Light Barrier Sensor 5mm (TCRT9000 Optical Sensor)
The TCRT9000 Reflective Light Barrier Sensor 5mm is an infrared based optical sensor designed for non contact object detection using reflected IR light. It integrates an infrared emitting diode and a phototransistor placed side by side in a single package. When an object comes within the sensing range, the emitted IR light is reflected back to the phototransistor, causing a change in output signal for detection.
The TCRT9000 sensor is widely used in India for embedded systems, industrial electronics, robotics, and automation applications. It is valued for its high resolution detection, fast response, and reliable performance in applications such as line tracking, object detection, and speed sensing.
Key Features
- Reflective Optical Sensor: IR emitter and phototransistor integrated
- 5mm Typical Sensing Range: Suitable for close range detection
- Non Contact Detection: No mechanical wear and long life
- High Resolution Sensing: Accurate reflection based detection
- Fast Response Time: Suitable for high speed applications
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Reflective light barrier optical sensor
- Sensing Method: Infrared reflection detection
- Peak Wavelength: Around 950nm
- Output Type: Phototransistor output
- Operating Distance: Up to approx 5mm typical
- Forward Current: Typically up to 20mA to 60mA
- Collector Current: Up to 20mA
- Collector Emitter Voltage: Up to 30V
- Response Frequency: Up to 30kHz to 50kHz range
- Mounting Type: Through hole
- Package Type: Reflective optical sensor DIP
- Applications: Line follower robots object detection speed sensing industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
