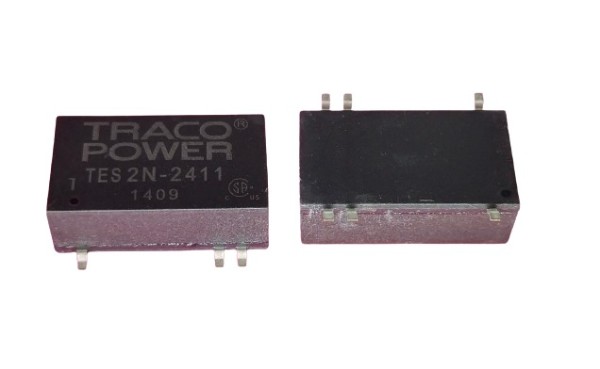

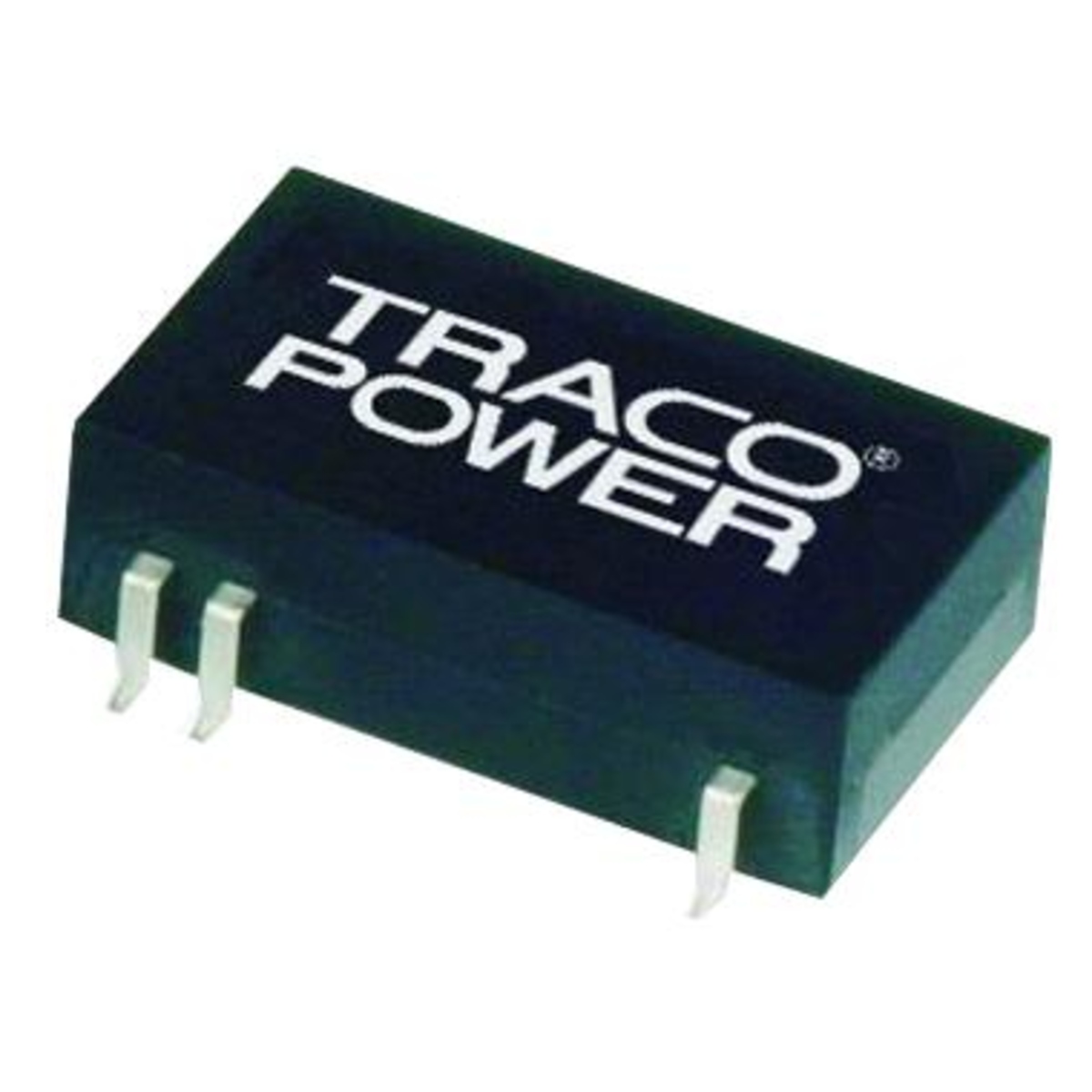

TES2N-2411 18V to 36V Input 5V Output 2W Isolated DC-DC Converter Module (TRACO Power TES2N-2411)

The TES2N-2411 is a compact isolated DC-DC converter module from TRACO Power designed to convert a wide 18V to 36V DC input into a regulated 5V DC output. With a 2W power rating, high isolation voltage, and industrial-grade reliability, it is ideal for automation systems, industrial controls, telecommunications equipment, instrumentation, and embedded applications requiring isolated power supplies.

Key Features -

• Wide 18V to 36V DC input range

• Regulated 5V DC output

• 2W output power rating

• Galvanic input to output isolation

• Compact SIP package design

• High efficiency power conversion

• Low ripple and noise output

• Industrial-grade reliability

• Easy through-hole PCB mounting

• Suitable for sensitive electronic circuits

Specifications -

• Product type - Isolated DC-DC Converter Module

• Model - TES2N-2411

• Manufacturer - TRACO Power

• Input voltage range - 18V to 36V DC

• Nominal input voltage - 24V DC

• Output voltage - 5V DC

• Output power - 2W

• Output current - Up to 400mA

• Isolation type - Galvanic Isolation

• Isolation voltage - 1500V DC

• Package type - SIP Through Hole

• Mounting type - Through Hole

• Efficiency - High Efficiency Design

Applications -

• Industrial automation systems

• PLC and control equipment

• Telecommunications devices

• Instrumentation systems

• Data acquisition equipment

• Embedded electronics

• Sensor interface circuits

• Isolated power distribution systems
